Quick Details
-
Brand Name:
-
Hipower
-
Model Number:
-
L12/8486
-
Dimension (L x W x H):
-
none
-
Amplification Type:
-
Passive speaker
-
Basket Material:
-
Aluminum
-
Impedance:
-
8ohm
-
Magnet Material:
-
Neodymium speaker
-
Nominal Power handling:
-
300watts
-
Frequency Range:
-
41-3.5K Hz
-
Voice Coil Diameter:
-
75mm/3 inch
-
Voice Coil Material:
-
copper
-
Net Weight:
-
3.5Kg
Quick Details
-
Power:
-
300W
-
Frequency Range (Hz):
-
41-3.5KHz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hipower
-
Model Number:
-
L12/8486
-
Dimension (L x W x H):
-
none
-
Amplification Type:
-
Passive speaker
-
Basket Material:
-
Aluminum
-
Impedance:
-
8ohm
-
Magnet Material:
-
Neodymium speaker
-
Nominal Power handling:
-
300watts
-
Frequency Range:
-
41-3.5K Hz
-
Voice Coil Diameter:
-
75mm/3 inch
-
Voice Coil Material:
-
copper
-
Net Weight:
-
3.5Kg

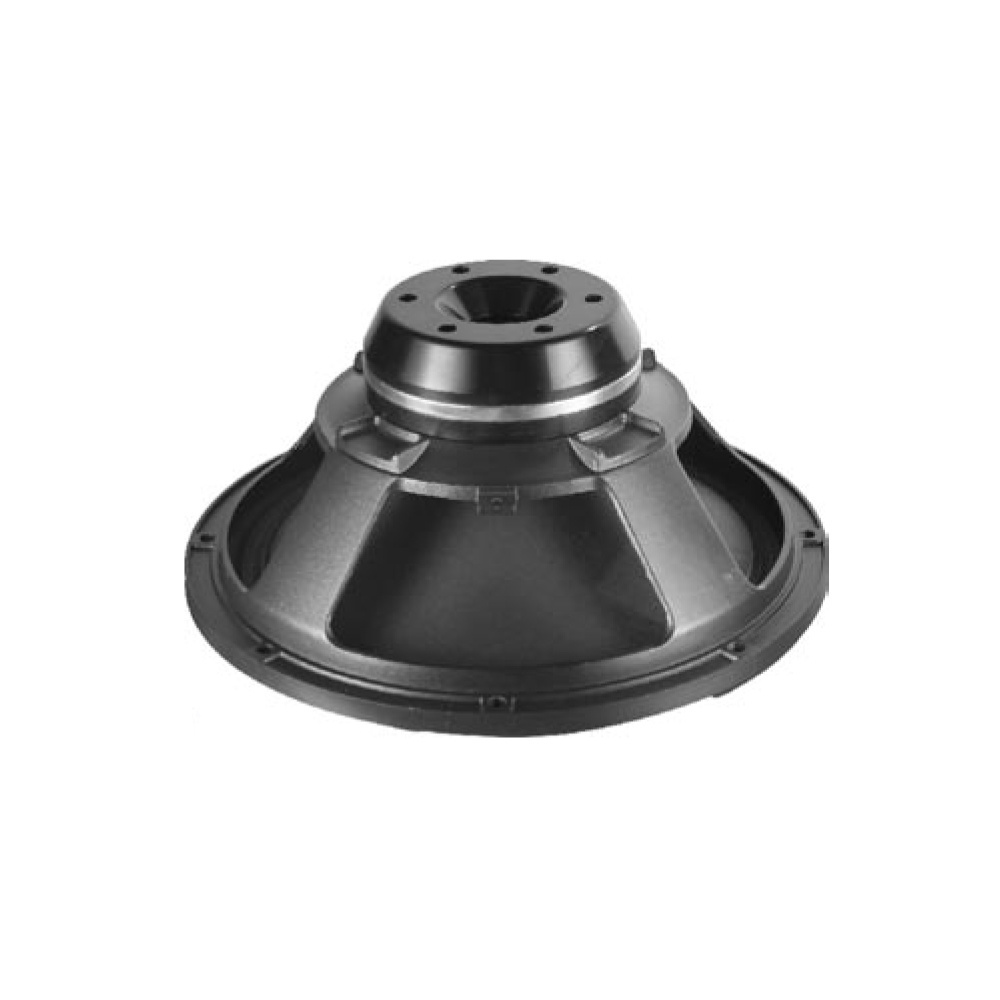

4. 8'' Neo Speaker which is ideal for high quality company in 2-3 way systems
5.Hipower Audio is a professinal speaker factory with experience in the speaker field for 19 years. We make our own tranducers ,HF drivers and empty cabinets
6. Details:
| General Specifications | ||
| Nominal Diameter | 300/12 | mm/inch |
| Rated Impedance | 8 | ohm |
| Nominal Power handling 1 | 300 | Watts |
| Program Power 2 | 600 | Watts |
| Sensitivity(lw/lm) 3 | 98 | dB |
| Frequency Range 4 | 41-3.5K | Hz |
| Minimum Impedance(Zmin) | 7 | ohm |
| Voice Coil Diameter | 75/3 | mm/inch |
| Voice Coil Material | Copper | |
| Voice Coil Winding Depth | 17 | mm |
| Number of layers | 2 | |
| Magnet gap depth | 10 | mm |
| Cone Shape | Curved | |
| Surround Shape | M-roll | |
| Basket | Cast Aluminum | |
| Flux Density | 1.5 | T |
| Magnet Material/Mass | Neodymium | kg |
| Thiele-Small parameters | |||
| Resonance frequency | Fs | 41 | Hz |
| DC resistance | Re | 5.4 | ohm |
| Mechanical factor | Qms | 9.0 | |
| Electrical factor | Qes | 0.19 | |
| Total factor | Qts | 0.18 | |
| Mechanical compliance | Cms | 0.23 | mm/N |
|
Mechanical resistance
of suspension losses |
Rms | 1.89 | mech-ohm |
| Effective Moving Mass | Mms | 65 | gr |
| Half-space efficiency | Eff | 3.3 | % |
| BL Factor | BL | 22 | T.m |
| Equivalent Cas air load | Vas | 92 | liters |
| Effective piston area | Sd | 0.0539 | m2 |
| Max.linear excursion | Xmax | 6 | mm |
| Voice-coil inductance | LelK | 1.06 | mH |
| Mounting Information | ||
| Overall Diameter | 315.5 | mm |
| Bolt Circle Diameter | 295 | mm |
| Bolt Hole Diameter | 6.5 | mm |
| Baffle Cutout Diameter | 281.5 | mm |
| Overall Depth | 134.5 | mm |
| Net Weight | 3.5 | kg |
