A new advanced system enables the operation easier . Be equiped with automatic, cleaning, sleep and
other basic operating functions and a variety of alarm prompts.
Rebound pistons-control ice cream making speed Automatic handles homing-press the handles and
auto return back.
- Product Details
- {{item.text}}
Quick Details
-
Mix Hopper:
-
2*6.5L
-
Cylinder:
-
2*2L
-
Main Compressor:
-
1.25HP
-
Cooling System:
-
Air Cooled
-
Refrigerant:
-
R404A
-
Options:
-
Cone Dispenser/Air Pump
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CB CE RoHS
Quick Details
-
Raw material:
-
Milk, Fruit, Nuts, Water, Soybean, Vegetables
-
Place of Origin:
-
Guangdong, China
-
Flavors:
-
2+1 mixed
-
Mix Hopper:
-
2*6.5L
-
Cylinder:
-
2*2L
-
Main Compressor:
-
1.25HP
-
Cooling System:
-
Air Cooled
-
Refrigerant:
-
R404A
-
Options:
-
Cone Dispenser/Air Pump
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CB CE RoHS
Product Description

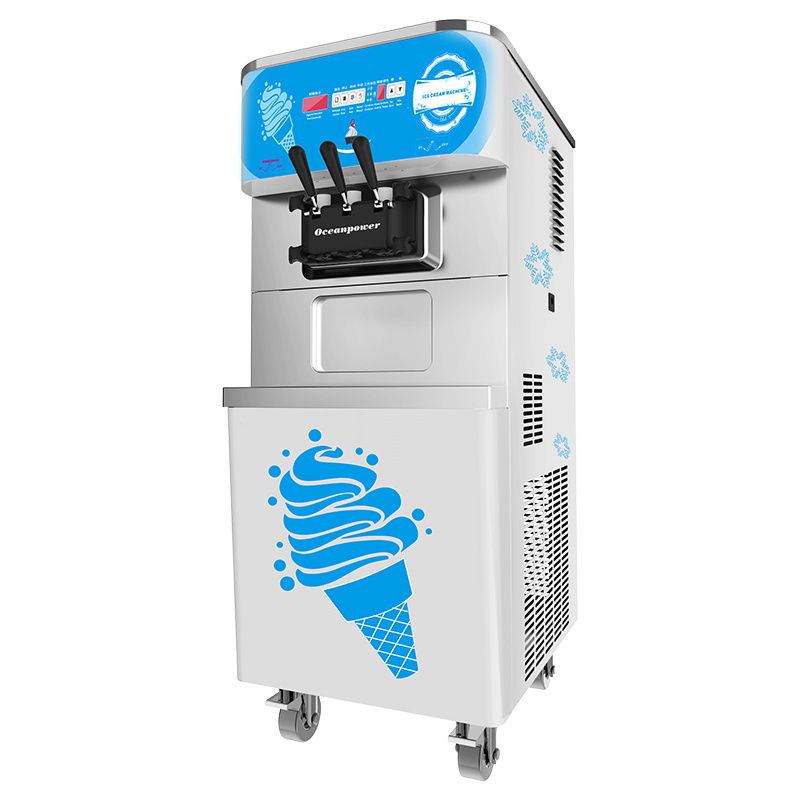

Oceanpower ice-cream soft serve ice cream making frozen yogurt machine OP138
Oceanpower has always been an expert in the manufacture of machines for ice cream--Quickly, easily and hygienically, saving time and effort. Our mission is to enable anyone to produce excellent soft ice cream, frozen yogurt and gelato.
Options:
*P: Pump *C: Pre-cooling *S: Stainless Steel Shell
*P: Pump *C: Pre-cooling *S: Stainless Steel Shell
|
Model
|
OP138C
|
|
Flavors
|
2+1 mixed
|
|
Production Capacity
|
38L/H
|
|
Mix Hopper
|
2*12L
|
|
Cylinder
|
2*2L
|
|
Power
|
2500W
|
|
Main Compressor
|
1.25HP
|
|
Cooling System
|
Air Cooled
|
|
Refrigerant
|
R404A
|
|
Options
|
Cone Dispenser / Air Pump
|
|
Voltage
|
220V 50Hz/60Hz
|
|
Net Weight(kg)
|
166
|
|
Total Weight(kg)
|
189.5
|
|
Dimension(mm)
|
555*735*1335
|
Main Features
Microprocessor Regulation
Regulates the entire refrigeration process and maintains consistent product viscosity, adjustable through modifying
viscosity between level 1 and level 8 on the front panel.
Safety Protection
Shuts down for self protection when motor overload or compressor overheat occurs due to power surge or
abnormal voltage from power supply.
Mix Low Alarm
The low liquid alarm light will be on when the hopper is lack of ice cream mix.
Dispensing Counter
The number of ice creams dispensed is displayed on the front panel each time the discharge handle is pressed.
Standby Mode
The machine automatically enters standby mode after two hours of inactivity and will resumes normal operation
after any keys or handles are pressed.
Broad Voltage Range
The ice cream machine can apply to broad voltage range from 198V to 238V.
Detailed Images
Functions centralization
Foaming integrated
Insulated the heat and trapped the chill, improve efficiency Full & thicker foaming evaporator to
ensure
perfect refrigeration efficiency.
Cooling System
1. Increase the Gas-liquid separator(reduce the pipeline buffer, improve the cooling efficiency);
2. Increase the high pressure needle valve (detect the high pressure);
3. Increase high pressure switch
(protect the compressor and machine under high pressure);
4. Increase the sight glass
(observe the cooling condition)
2. Increase the high pressure needle valve (detect the high pressure);
3. Increase high pressure switch
(protect the compressor and machine under high pressure);
4. Increase the sight glass
(observe the cooling condition)
Mix Low Alarm & Air Tube
Low-mix Alarm is to help remind you of the mix adding;
Not only can air tube make the high overrun,
but also meet the different requirement;
Not only can air tube make the high overrun,
but also meet the different requirement;
Inside Design
Cylinder
Soft Ice Cream and Board
Dimension
