Quick Details
-
Brand Name:
-
KSRJ
-
Product name:
-
Pneumatic Hand Rotary Valve
-
Brand:
-
KSRJ
-
Fluid:
-
Air
-
Operating:
-
Manual Control Direct Acting Type
-
Valve Type:
-
4/2 way 4/3 way
-
Pressure Range:
-
0~1.0Mpa
-
Proof Pressure:
-
1.5Mpa
-
Working Temperature:
-
-20~70
-
Operating Angle:
-
90° (4/3 way:45°)
Quick Details
-
Port Size:
-
1/8'' 1/4'' 3/8'' 1/2'' 3/4'', 1/8'' 1/4'' 3/8'' 1/2'' 3/4''
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
4HV210-06/08
-
Brand Name:
-
KSRJ
-
Product name:
-
Pneumatic Hand Rotary Valve
-
Brand:
-
KSRJ
-
Fluid:
-
Air
-
Operating:
-
Manual Control Direct Acting Type
-
Valve Type:
-
4/2 way 4/3 way
-
Pressure Range:
-
0~1.0Mpa
-
Proof Pressure:
-
1.5Mpa
-
Working Temperature:
-
-20~70
-
Operating Angle:
-
90° (4/3 way:45°)

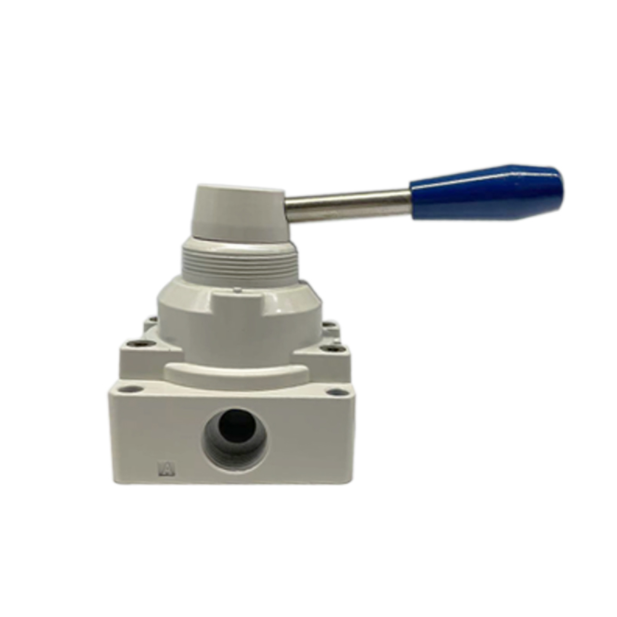

4HV Series Pneumatic Hand Rotary Valve .
4HV Series 4HV210-06/08 2 Position 4 Way 3 Position 4 Way Manual Hand Operating Air Switch Pneumatic Hand Rotary Valve
Product Feature
4HV Series Pneumatic Hand Rotary Valve.
The direction-change turns lightly with good hand feeling and exact orientation.
Large effective circulating area leads to little pressure loss.
Made of aluminum alloy with high precision, it is more durable and has a longer service life.
Product Description
Specification
|
item
|
value
|
|
Type
|
SOLENOID VALVES
|
|
Customized support
|
OBM
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
KSRJ
|
|
Application
|
General
|
|
Temperature of Media
|
Normal Temperature
|
|
Power
|
Pneumatic
|
|
Media
|
Gas
|
|
Port Size
|
|
|
Structure
|
Control
|
|
Product name
|
Pneumatic Hand Rotary Valve
|
|
Brand
|
KSRJ
|
|
Fluid
|
Air
|
|
Operating
|
Manual Control Direct Acting Type
|
|
Port Size
|
1/8'' 1/4'' 3/8'' 1/2'' 3/4''
|
|
Valve Type
|
4/2 way 4/3 way
|
|
Pressure Range
|
0~1.0Mpa
|
|
Proof Pressure
|
1.5Mpa
|
|
Working Temperature
|
-20~70
|
|
Operating Angle
|
90° (4/3 way:45°)
|
Recommend Products
Packing & Delivery
This is a full-box package, carton pack, which can hold 35 pieces per case.
Use the tray to load the product into the container. Waterproof film packaging is also available outside the product
