Quick Details
-
Inlet Pressure:
-
150psig / 10.3 bar
-
Orifice Size:
-
3/4 inch
-
Outlet Pressure:
-
5-16psi
-
Pressure Registration:
-
External Registration
-
End Connection Type:
-
Thread
-
Packing Size:
-
55*54*37cm
Quick Details
-
Place of Origin:
-
Mexico
-
Name:
-

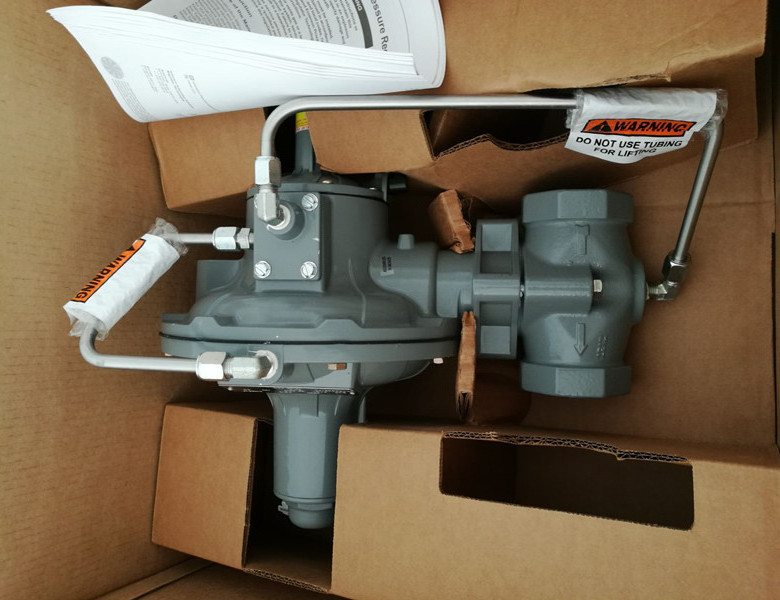

Fisher 299H299H-104 Gas Pressure Reducing Valve
-
Body Sizes and End Connection Styles:
-
2" FNPT
-
Inlet Pressure:
-
150psig / 10.3 bar
-
Orifice Size:
-
3/4 inch
-
Outlet Pressure:
-
5-16psi
-
Pressure Registration:
-
External Registration
-
End Connection Type:
-
Thread
-
Packing Size:
-
55*54*37cm
FS 299H Series pressure reducing regulators provide a broad capacity for controlled pressure ranges and capacities in a wide variety of distribution, industrial and commercial applications. A 299H Series regulator has a pilot integrally mounted to the actuator casing. 299H Series regulators can handle inlet pressures up to 175 psi / 12.1 bar depending on orifice size.
Body Sizes and End Connection Styles
Cast Iron:
NPS 2 / DN 50 body with NPT
Maximum Operating Inlet Pressure by Orifice Size
1/4 x 3/8 inch / 6.4 x 9.5 mm:
175 psig / 12.1 bar
3/8 inch / 9.5 mm:
175 psig / 12.1 bar
1/2 inch / 13 mm:
175 psig / 12.1 bar
3/4 inch / 19 mm:
150 psig / 10.3 bar
7/8 inch / 22 mm:
125 psig / 8.6 bar
1 inch / 25 mm:
100 psig / 6.9 bar
1-3/16 inch / 30 mm:
80 psig / 5.5 bar
Maximum Outlet (Casing) Pressure
66 psig / 4.5 bar
Minimum Differential Pressure for Full Stroke
1.5 psid / 0.10 bar
Outlet Pressure Ranges
1-3.25 psig / 0.07-0.22 bar
Pressure Registration
External Registration
Temperature Capabilities
-20 to 150°F / -29 to 66°C
