Quick Details
-
Production Capacity:
-
200
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue Elephant
-
Voltage:
-
380V, 380V/3P/50HZ
-
Dimension(L*W*H):
-
3200*2000*400mm
-
Weight:
-
5500 kg
-
After-sales Service Provided:
-
Online Service Support
-
Product name:
-
CNC Cutting Machine
-
Function:
-
Stone Engraving Carving Cutting
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Control system:
-
customized system
-
Low-voltage electronics:
-
SCHNEIDER
-
Working air pressure:
-
0.7-0.8Mpa
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
15 KW
-
Cutting thickness (max):
-
Other
-
Production Capacity:
-
200
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue Elephant
-
Voltage:
-
380V, 380V/3P/50HZ
-
Dimension(L*W*H):
-
3200*2000*400mm
-
Weight:
-
5500 kg
-
After-sales Service Provided:
-
Online Service Support
-
Product name:
-
CNC Cutting Machine
-
Function:
-
Stone Engraving Carving Cutting
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Control system:
-
customized system
-
Low-voltage electronics:
-
SCHNEIDER
-
Working air pressure:
-
0.7-0.8Mpa
Product Description

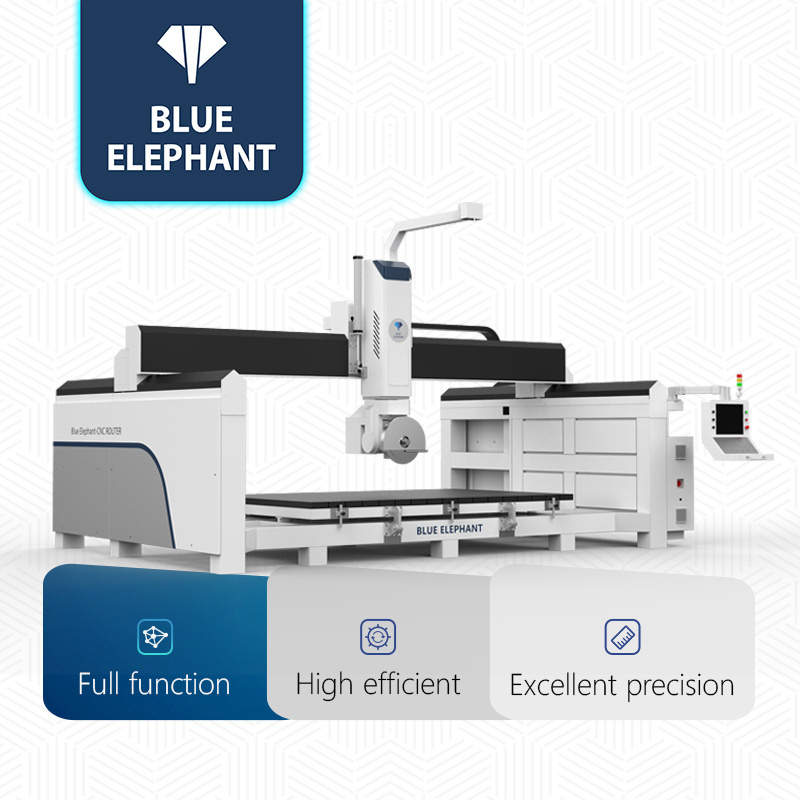

This is a newly designed 5 axis CNC bridge saw for stone cutting. It is added with a camera to automatically position plates.And the machine head can swing freely at 360°, which can cut and edge at any angle and shape for granite, marble, artificial stone, slate and other stone materials. So it is widely used in slate application industry, prefabricated building industry, home decoration industry, etc. Its maximum cutting length is 2800mm, maximum cutting widths is 1200mm, and maximum cutting thicknesses
is 100mm. The worktable can tilt up to 80°and the spindle can rotate to 90° or 360°. It is the ideal machine for large and
industrial stone professing factory.
is 100mm. The worktable can tilt up to 80°and the spindle can rotate to 90° or 360°. It is the ideal machine for large and
industrial stone professing factory.
Features:
1. The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
1. The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
2. It is equipped with a high-precision on-board camera, which brings higher-definition images and can provide high-precision stone processing. Moreover, it can take pictures to position stone plates, and can automatically plan the cutting path directly from the generated map, which greatly improves the processing efficiency.
3. The overturned worktable is adopted, which has large overturning weight redundancy, up to 80°.
4. Adopts a 11kw motor with high precision, it can complete circular cutting, square cutting, sector cutting, oval cutting, 45 miter cutting, drilling, external edge polishing, etc.
5. The robotic system has a lift capacity of 75 kgs for stone slab moving.
6. The 5-axis cutting head can miter and interpolate in any direction.
Technical Parameters
|
ES5 5 axis CNC stone bridge saw
|
|
|
|
|
Working travel
|
X, Y, and Z
|
3200*2000*400mm
|
|
|
Color
|
C axis
|
±360°
|
|
|
Working Voltage
|
A axis
|
0-90°
|
|
|
Low-voltage electronics
|
Xaxis
|
30m/min
|
|
|
|
Yaxis
|
30m/min
|
|
|
|
Zaxis
|
15m/min
|
|
|
Servo motor
|
X and Y
|
1300W absolute servo motor
|
|
|
|
Zaxis
|
1300W absolute servo motor with brake
|
|
|
|
A and C
|
1000W absolute servo motor
|
|
|
Guide rail
|
X, Y, and Z: # 30
|
|
|
|
Rack
|
X,Y
|
2MT-WIN
|
|
|
|
Saw motor
|
11KW motor, rated: 3000r/min
|
|
|
|
Inverter
|
15KW BRICH
|
|
|
|
Control system
|
Blue Elephant customized system (built-in CAM software)
|
|
|
|
Low-voltage electronics
|
French SCHNEIDER
|
|
40% customer other choice
Details Images
5 axis spindle
Higher efficiency and more time saving
ElectronicComponents
Using the standard components with CE certification, such as Germany Schneider company.
Dsp A11 Control
This machine adopts a DSP A 11 control system, which is more convenient and easy to operate.
Customer feedback
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packing&Shipping
Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Company Introduction
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the
CE, SGS, ISO9001 etc
. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
Learn more about us, welcome to click https://blueelephant.en.alibaba.com
Learn more about us, welcome to click https://blueelephant.en.alibaba.com
FAQ
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2.Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
