Quick Details
-
Brand Name:
-
Drawell
-
Model Number:
-
Digipol-D50/D70
-
Features:
-
Built-in Parpaste temperature control, Compliance with 21CFR
-
Test mode:
-
Density, alcohol concentration and custom formula
-
Measuring range:
-
0 g/cm3 to 3 g/cm3
-
Accuracy:
-
±0.00005 g/cm3
-
Injection method:
-
Automatic (compatible with manual)
-
Temperature control range:
-
5℃-65℃
-
Display:
-
10.4 inch FTF color touch screen
-
Output method:
-
USB, RS232, RJ45, SD card, U disk
-
Export in multiple file formats:
-
PDF & Excel
-
Certificate:
-
CE
Quick Details
-
Warranty:
-
1 year
-
Type:
-
Density Meter
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Drawell
-
Model Number:
-
Digipol-D50/D70
-
Features:
-
Built-in Parpaste temperature control, Compliance with 21CFR
-
Test mode:
-
Density, alcohol concentration and custom formula
-
Measuring range:
-
0 g/cm3 to 3 g/cm3
-
Accuracy:
-
±0.00005 g/cm3
-
Injection method:
-
Automatic (compatible with manual)
-
Temperature control range:
-
5℃-65℃
-
Display:
-
10.4 inch FTF color touch screen
-
Output method:
-
USB, RS232, RJ45, SD card, U disk
-
Export in multiple file formats:
-
PDF & Excel
-
Certificate:
-
CE
Products Description

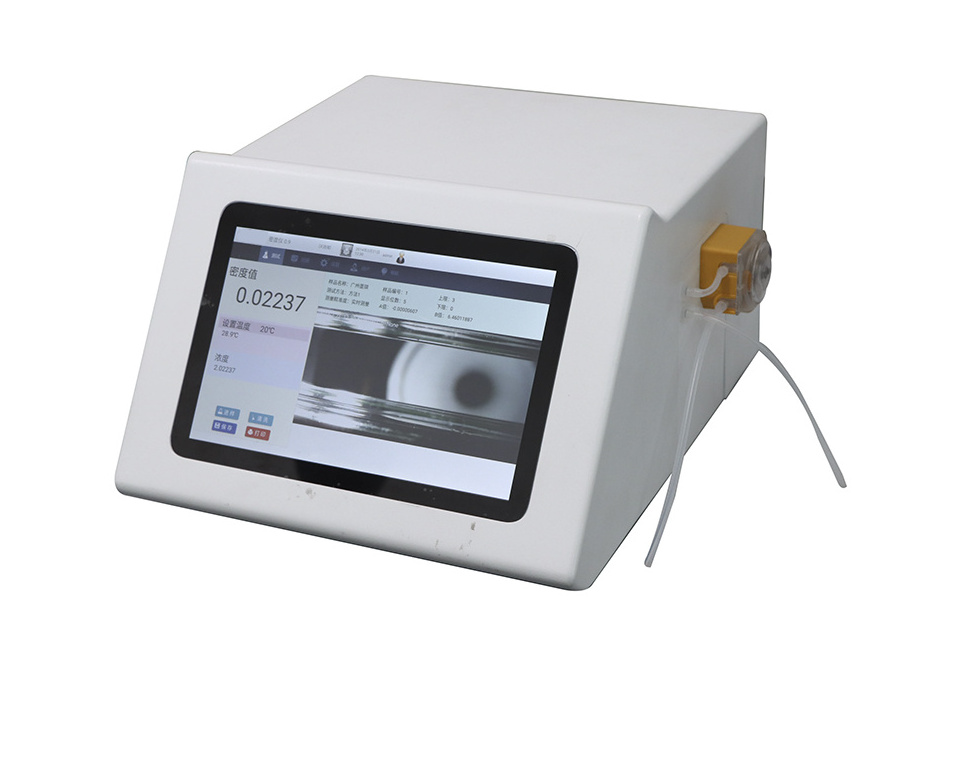

Density Meter Digipol-D50/D70
The Digipol-D50/D70 automatic densitometer is based on the principle of U-tube oscillation method, which perfectly combines Peltier's precise temperature control technology with high-definition video camera technology to not only provide accurate, stable and reliable test results, but also provide users with efficient and convenient test experience. High-definition video can see whether there is bubble influence in the sample, using pulse excitation, high-precision detection technology, convenient for users to accurately and quickly measure the sample density and density related parameters.
Fields of Use
1.Pharmaceutical industry: quality control of API and pharmaceutical intermediates, determine the specific gravity and density of pharmaceutical agents;
2.Flavor flavor: food flavor, daily flavor, tobacco flavor, food additive raw material verification;
3.Petrochemical industry: crude oil API index, gasoline, diesel density detection, additive mixing ratio process monitoring;
4.Beverage industry: measurement of sugar concentration, alcohol concentration, beer quality control, soft drink quality control;
5.Food industry: grape juice, tomato juice, high fructose corn syrup, vegetable oil and soft drinks processing quality control;
6.Brewing industry: liquor, yellow rice wine, red wine, beer, fruit wine, rice wine and other alcohol concentration detection;
7.Chemical industry: chemical urea, detergent, glycol, acid and alkali and ammonia concentration test;
8.Machinery manufacturing: metal processing, machine manufacturing, automotive industry, electronic and electrical cleaning agent detection;
9.Inspection institutions: standard laboratories, statutory testing institutions, third party detection of liquid density
measurement.
Main Features
1. Automatic integration to realize the function of one-key measurement.
2. Built-in Parpaste temperature control, improve accuracy and stability.
3. Avoid bubbles in HD video.
4. Data can be printed directly through the printer.
5. Compliance with 21CFR Part 11, audit trail, pharmacopoeia and electronic signature.
|
Model
|
DigiPol -D50
|
DigiPol -D70
|
|
Test mode
|
-
|
Density, alcohol concentration and custom formula
|
|
Measuring range
|
0 g/cm3 to 3 g/cm3
|
0 g/cm3 to 3 g/cm3
|
|
Resolution
|
±0.0001 g/cm3
|
±0.00001 g/cm3
|
|
Repeatability
|
±0.0001 g/cm3
|
±0.00008 g/cm3
|
|
Accuracy
|
±0.0003 g/cm3
|
±0.00005 g/cm3
|
|
Injection method
|
Automatic (compatible with manual)
|
Automatic (compatible with manual)
|
|
With Video
|
YES
|
YES
|
|
Temperature control method
|
Peltier
|
Peltier
|
|
Temperature control range
|
5℃-45℃
|
5℃-65℃
|
|
Temperature control stability
|
±0.02℃
|
±0.02℃
|
|
Display method
|
10.4 inch FTF color touch screen
|
10.4 inch FTF color touch screen
|
|
data storage
|
32G
|
64G
|
|
output method
|
USB, RS232, RJ45, SD card, U disk
|
USB, RS232, RJ45, SD card, U disk
|
|
User Management
|
Yes / four-level authority management
|
Yes / four-level authority management
|
|
Audit trail
|
YES
|
YES
|
|
Electronic signature
|
YES
|
YES
|
|
Custom method library
|
YES
|
YES
|
|
Export file to verify high-level protection MD5
|
YES
|
YES
|
|
WIFI printing
|
YES
|
YES
|
|
Export in multiple file formats
|
PDF & Excel
|
PDF & Excel
|
|
Size
|
480*320*200mm
|
480*320*200mm
|
|
Power supply
|
110V -230V 50Hz / 60Hz
|
110V -230V 50Hz / 60Hz
|
|
Weight
|
8kg
|
8kg
|
Certificate
