We offer free layout design if you have got a land and want rough idea about the workshop. We would like to add value before you make final decision.
- Product Details
- {{item.text}}
Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
HONGFA/Customized
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
6200*1850*1680mm
-
Weight (KG):
-
13000 kg
-
Raw material:
-
Cement, Sand, Fly Ash, Crushed Stone
-
Block Type:
-
Hollow Paver Solid Interlock Blocks
-
Pallet size:
-
1220x900x30mm
-
Weight:
-
13000KG
-
Molding cycle:
-
15-20s
-
Vibration frequency:
-
2800-4500r/min
-
PLC:
-
Germany Technology
-
Brand:
-
HONGFA/Customized
-
Color:
-
Customized
-
Worker:
-
2-3
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
Cement, sand, quarry, crushed stone
-
Production Capacity (Pieces/8 hours):
-
8000-10000 8inch hollow blocks/8hrs
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
HONGFA/Customized
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
6200*1850*1680mm
-
Weight (KG):
-
13000 kg
-
Raw material:
-
Cement, Sand, Fly Ash, Crushed Stone
-
Block Type:
-
Hollow Paver Solid Interlock Blocks
-
Pallet size:
-
1220x900x30mm
-
Weight:
-
13000KG
-
Molding cycle:
-
15-20s
-
Vibration frequency:
-
2800-4500r/min
-
PLC:
-
Germany Technology
-
Brand:
-
HONGFA/Customized
-
Color:
-
Customized
-
Worker:
-
2-3
Product Description

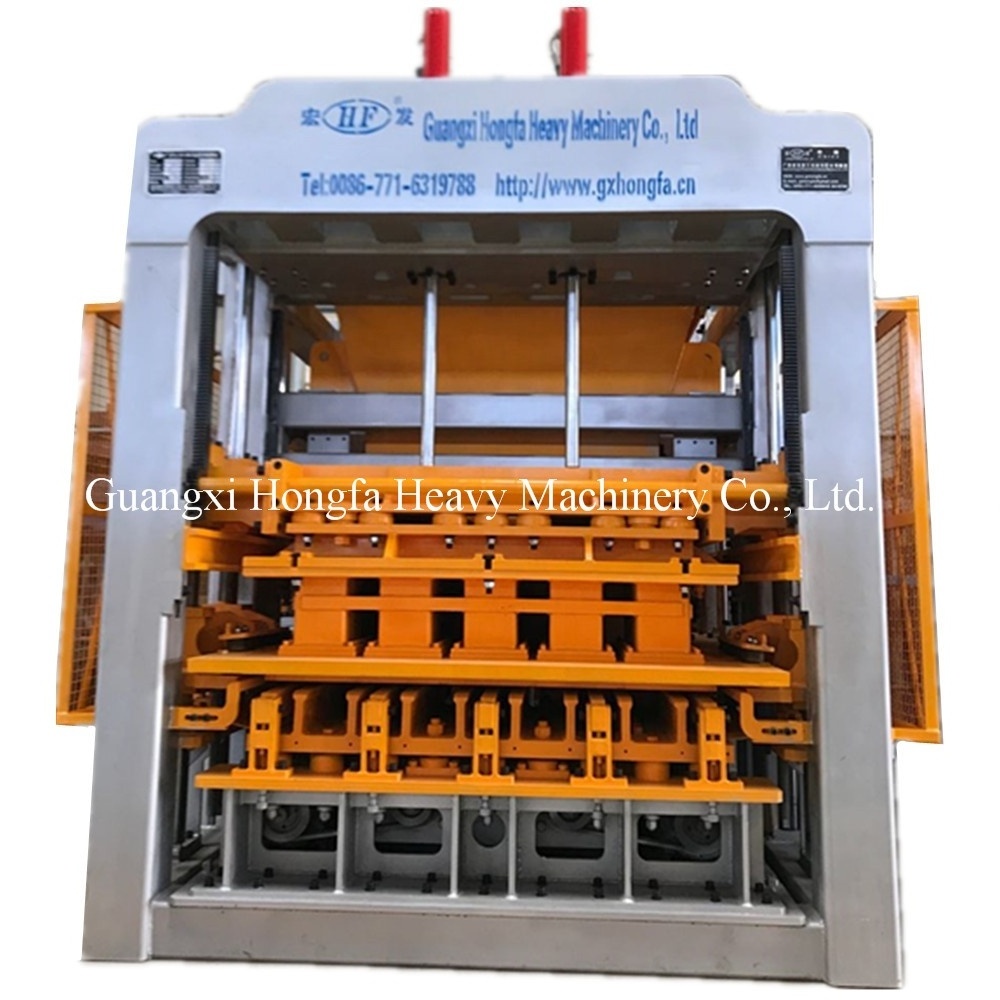

HONGFA QT10-15 is one of patent products of our technical development, it is very hot-selling model worldwidely. Easy for operation and maintenance,
applied for different types concrete block, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
|
Overall Dimension
|
7900*2500*3020(mm)
|
|
Main Vibration Form
|
Platform vibration
|
|
Vibrating Frequency
|
2800-4500 r/m
|
|
Motors Power
|
55KW
|
|
Cycle Time
|
14-25seconds
|
|
Rated Pressure
|
21 MPa
|
|
Pallet Size
|
1220*900*30mm
|
Productivity of HONGFA QT10-15 Brick Making Machine
|
Block type
|
Size
|
Cycle time
|
Qty/mould
|
Qty/8hour
|
|
Hollow Block
|
390*190*190mm
|
15-20s
|
10pcs
|
14000-19000pcs
|
|
Porous Block
|
240*115*90 mm
|
15-20s
|
30pcs
|
35000-42000pcs
|
|
Solid Block
|
240*115*53 mm
|
14-17s
|
56pcs
|
90000-100000pcs
|
Other parts you may need except for block machine
Total production process including aggregating, mixing, molding, demolding, stacking and tranferring. Except for block machine, we also offer other parts such as cement silo, batching machine, conveyor belt, mixer, stacker, pallets(bamboo/PVC/fiber) etc.
HONGFA QT10-15 cases in customer factory
Block Samples
Related Products
Packing&Shipping
After Sales Service
Our Service
1.5 years after sale service for whole life.To offer free design, free technology support and free machine
maintenance trainning.
2. 1 set free spare parts along with shipping.
maintenance trainning.
2. 1 set free spare parts along with shipping.
3. Free maintenance guidance for life span.
Company Introduction
Established in 1990, we grew up from a small block making machine factory at the begining. After more than 26 years development, Hongfa Machinery has been the leading manufacturer of building material machinery in China. Its main products include concrete brick machine, AAC plant, lightweight concrete wall panel production line. Based in Shandong and Guangxi we totally have 4 factories. They support us strongly to pursue high products quality and our customers different demands.
Hongfa Machinery's Honor
1.One of Top Ten Influential Brands in China Brick &Tile Industry
2.China National Enterprise Abiding By Contract & Keeping Good Faith
3.Quality and Credibility of the Dual-protection Demonstration Unit
4.High and New Technology Enterprise
5.Famous Trademark of China
6.Star Enterprise with China Patent
7.AAA Grade Credit Enterprise
8.Consumer Satisfaction Unit
9.One of Top 100 building Material Industry Brands of China
10.One of Top Ten Good Faith Units
11.Advanced Exporter in Guangxi Province
12.Advance Quality Management Unit
FAQ
1. Can this machine make my brick or other size block?
We would design and do the mould according to customer's Drawing.
2.Are your company is the manufacture or trading company?
We are Direct factory,not agent or trading company,and the quality and after-sale services is guaranteed.
We would design and do the mould according to customer's Drawing.
2.Are your company is the manufacture or trading company?
We are Direct factory,not agent or trading company,and the quality and after-sale services is guaranteed.
3.How can I trust the machines quality?
Our products passed ISO9001-2000 and CE identifications, and we making machines for 29 years,with full experience,updating technical idea and application. Furthermore our machines have been exported to more than 96 countries and always have a good reputaion from our oversea customers.We will do fully test our products before shipment, make sure every equipment work well when they are delivered.
4.When do you delivery the goods?
Normally 30 days after receipt of deposit and moulds confirmation from Buyer.
5.What about the payment terms?
30% as down deposit by T/T ,70% as the balance paid by T/T before loading(L/C is also acceptable).
6.Does the price include the mould?
Yes,the above price includes one set mould.
7. Would you mind provide the video?
The video is available to send to you, please contact me.
8.How about the commissioning of the machine and training to workers?
Yes, after finish the installation of the block production line, our engineer will do the testing and commissioning, and make the most suitable ratio of the materials to make the blocks, and train the workers how to operate and maintain the machines.
Our products passed ISO9001-2000 and CE identifications, and we making machines for 29 years,with full experience,updating technical idea and application. Furthermore our machines have been exported to more than 96 countries and always have a good reputaion from our oversea customers.We will do fully test our products before shipment, make sure every equipment work well when they are delivered.
4.When do you delivery the goods?
Normally 30 days after receipt of deposit and moulds confirmation from Buyer.
5.What about the payment terms?
30% as down deposit by T/T ,70% as the balance paid by T/T before loading(L/C is also acceptable).
6.Does the price include the mould?
Yes,the above price includes one set mould.
7. Would you mind provide the video?
The video is available to send to you, please contact me.
8.How about the commissioning of the machine and training to workers?
Yes, after finish the installation of the block production line, our engineer will do the testing and commissioning, and make the most suitable ratio of the materials to make the blocks, and train the workers how to operate and maintain the machines.
