Automotive Sensor Car Millimeter Wave Radar Blind Spot Car Reverse Aid 77GHZ proximity warning system

Automotive Sensor Car Millimeter Wave Radar Blind Spot Car Reverse Aid 77GHZ proximity warning system

FOB Reference Price: Get Latest Price

≥10 Sets

US $600

≥100 Sets

US $500

≥500 Sets

US $390

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 12 Months

Brand Name:: EI

Accuracy Distance:: 180M

Power Consumption(W):: 3W

Function:: Waterproof, ADAS, Safe Driving Assist

Size:: 70 x 70 x 14.8 mm

Interface:: CAN + CAN-FD, 2 Channels

Temperature:: -40 ~ +85

Anti-Dusk/Water:: IP69K + IP67

Installation:: Bracket Mounting

Power Supply Model:: KL15 or KL30 Compatible

Frequency:: 76 GHz ~ 77 GHz

Max. Detection Range:: 180M

Min. Detection Range:: 0.33M

Quick Details

Car Fitment:: Other

Voltages:: 9~36V

Frequency Band:: standard

Warranty:: 12 Months

Brand Name:: EI

Accuracy Distance:: 180M

Power Consumption(W):: 3W

Function:: Waterproof, ADAS, Safe Driving Assist

Size:: 70 x 70 x 14.8 mm

Interface:: CAN + CAN-FD, 2 Channels

Temperature:: -40 ~ +85

Anti-Dusk/Water:: IP69K + IP67

Installation:: Bracket Mounting

Power Supply Model:: KL15 or KL30 Compatible

Frequency:: 76 GHz ~ 77 GHz

Max. Detection Range:: 180M

Min. Detection Range:: 0.33M

Products Description

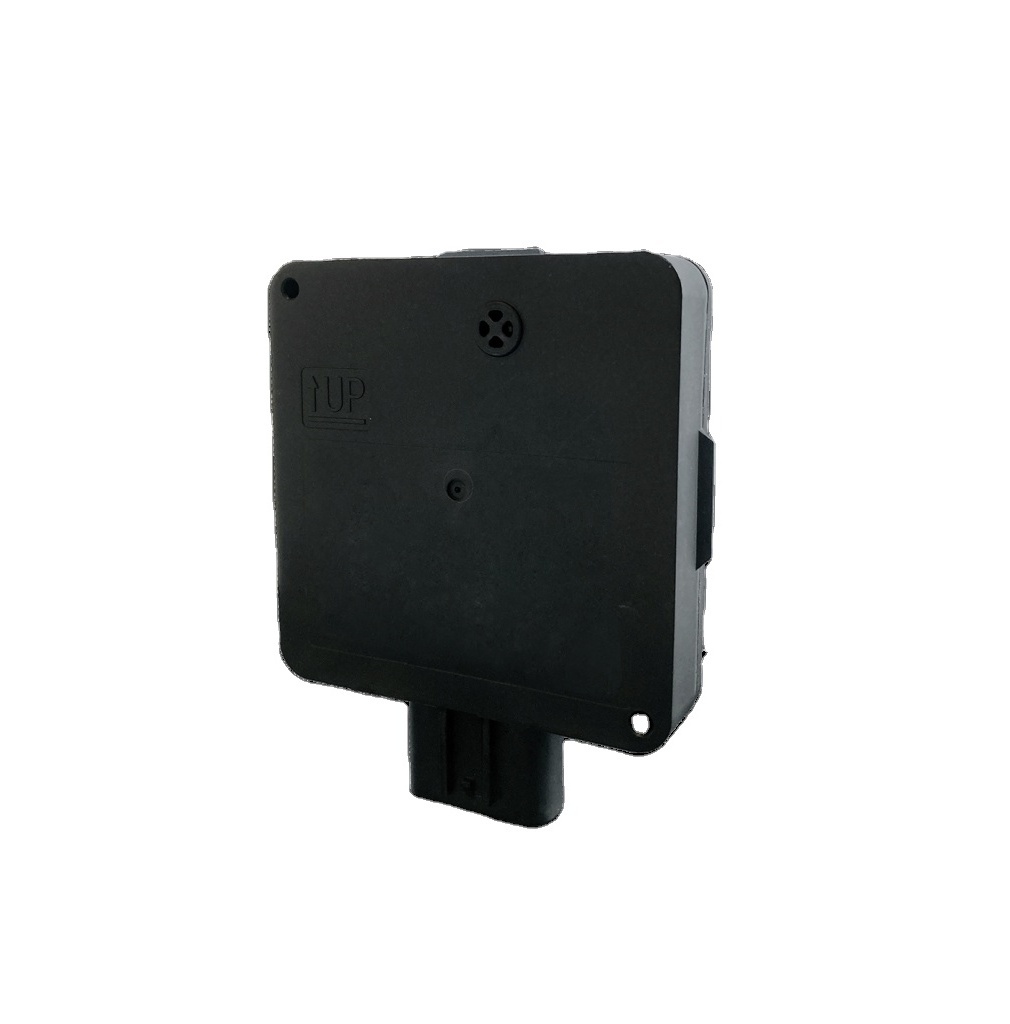

Millimeter Wave Radar - P1

P1 is the first generation corner radar of EI company which provides integrated BSD, LCA, DOW, RCW, RCTA(B), FCTA(B) features,

support up to L3 ADAS features.

The P1 is a high-performance 77 GHz short-range radar sensor that was developed specifically for advanced convenience and safety features as well as autonomous driving.

★ Compact Design, Light

★ Low Energy Consumption

★ Low Cost

★ Customized Development

Antenna	3Tx/4Rx	Weight	80g
Max. Detection Range	180M	Size	70 x 70 x 14.8 mm
Min. Detection Range	0.33M	Interface	CAN + CAN-FD, 2 Channels
Distance Accuracy	0.034m	Voltage	9~36V
Distance Resolution	0.55m	Power	3W
FoV	-69.97~69.33	Temperature	-40 ~ +85
Angle Accuracy	0.189	Anti-Dusk/Water	IP69K + IP67
Angle Resolution	3.93	Installation	Bracket Mounting
Velocity Detection Range	-277km/h ~ +135km/h	Power Supply Model	KL15 or KL30 Compatible
Velocity Detection Accuracy	0.032 m/s	Frequency	76 GHz ~ 77 GHz
Velocity Detection Resolution	2m/s	Self-Integrated Feature	BSD, LCA, RCTA/B, DOW, RCW, FCTA/B
Max. Detection Output	200/cycle	Connector	Molex
Max. Object Output	40/cycle	Blockage Detection	Supported
