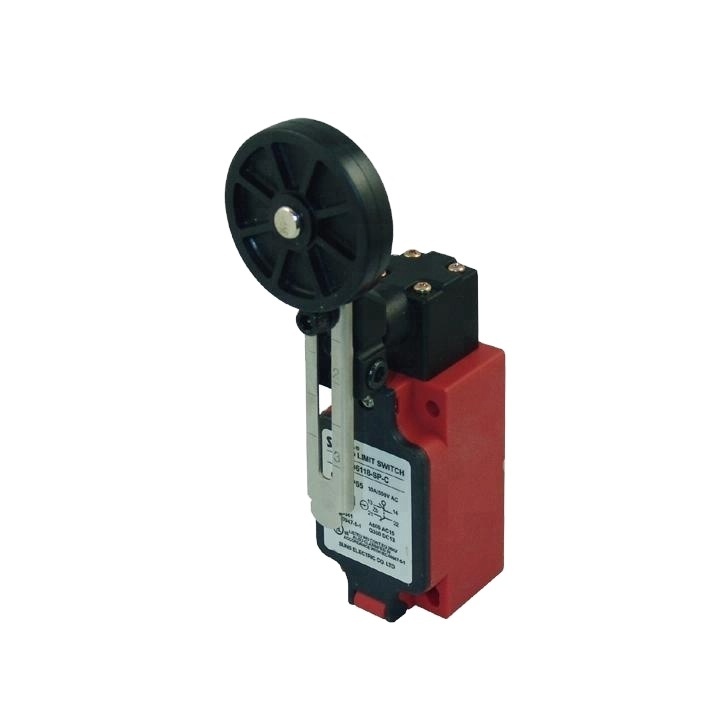

Door/Lift limit switch with reset rotary limit switch

FOB Reference Price: Get Latest Price

≥100 Pieces

US $5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: SND6118-SP-C-R

Protection Level:: IP67

Operating Temperature:: -25~+80 (-13~+176)

Max. Current:: 10A

operating speed:: 0.05mm-2m/sec

weight:: 150~250g

Name:: safety limit switches

Quick Details

Max. Voltage:: 600V

Place of Origin:: Fujian, China

Brand Name:: SUNS

Model Number:: SND6118-SP-C-R

Protection Level:: IP67

Operating Temperature:: -25~+80 (-13~+176)

Max. Current:: 10A

operating speed:: 0.05mm-2m/sec

weight:: 150~250g

Name:: safety limit switches

Product Description

Specifications		Features
1) Operating Speed:0.05mm~2m/sec 2)Operating Frequency: Mechanical:120ops/min Electrical:30 ops/min 3) Insulation Resistance:>100MΩ@500V DC 4) Contact Resistance:<25MΩ 5) Rated Thermal Current: 10A/600V AC(en60947-5-1) 6) UL/cUL Listed(E216958) AC15 A600/DC13 Q300 7) Dielectric Strength:1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts 8) Service Life: Mechanical 1X10 ⁷ (operations) Electrically 5x10 ⁵ (operations) 9) Operating Termperature:-25~+80℃—(—-13~176°F）with no icing 10) Humidity :<95%RH 11) Weight:150-230g for plastic body Degree of protection： IP67		1）Glass fiber reinforced plastic body 2) Increased wiring space 3) Easily Interchangerable contact block 4) Galvanically separated contacts 5) Screw terminals with self-lifting clamps for easy wirng 6) Positive OPerating of NC contact 7) Cable entry available :M20,PG13.5 and 1/2"NPT 8) Conform to EN 50041 standard Definitions of Operating Characteristics OF=Operating Force RF=Releasing Force OT=Overtravel TT=Total Travel PT=Pretravel DD=Movement Differential OP=Operating Position PO=Travel to Positive Opening

Detailed Images

Packing & Delivery

FOB Port: XIAMEN

Payment Terms: TT or L/C

Minimum Order Quantity: 100 Piece/Pieces

Delivery Time: 2-4weeks

Our Company

For over 25 years, SUNS has been delivering world-class electromechanical and electric components to customers around the globe. We offer n extensive line of products critical to your application. Our focus revolves around our customers receiving precise and reliable components and the most competitive price.Our manufacturing facilities are compliant under ISO9001:2008 and all of our products are certified by UL.CSA,CE and CCC standards

Certifications

Our Service

our service		our advantage
• Provide wide variety of Limit Switch, Foot Switch, Micro Switch, Industrial Switch,etc. • Offer customized solution to clients based on various situations • Satisfactory delivery service to domestic and international clients • Promote extended after-sale service		• Reliable supplier/partner for dozens of world leading manufacturers • Provide value added service and flexible • Maintain leading-edge technology through continuous innovation • Provide most reliable products and services • Offer the most complete switch portfolio • Stable work force with people-oriented management style

FAQ

1. A:Where is your company?

Q:We are a USA company and have our own manufacture factory in Fujian China.

2. A:Do you have any certifications?

Q: We have TUV, CSA, UL, UR, CE, CCC approved, and RoHs, REACH compliance

3. A:What is your payment term ?

Q:T/T, L/C

4. A:Could I have some samples for testing ?

Q:Samples(Depends) can be sent per request on your express cost.

5. A:What is your delivery time ?

Q:Delivery lead time 2-4 weeks normally
