Quick Details
-
Product name:
-
PQ8 Self-priming Foam Water Gun Fire Fighting Spray Nozzle
-
Type:
-
Manual
-
Material:
-
Aluminum Alloy
-
Color:
-
black
-
Usage:
-
Fire Safety
-
Connecting Thread:
-
Storz, NH,BIC or JIC
-
Max Working pressure:
-
1.6Mpa
Quick Details
-
Place of Origin:
-
Jiangsu, China, Jiangsu,China
-
Brand Name:
-
SJXF, SJXF
-
Model Number:
-
PQ8
-
Product name:
-
PQ8 Self-priming Foam Water Gun Fire Fighting Spray Nozzle
-
Type:
-
Manual
-
Material:
-
Aluminum Alloy
-
Color:
-
black
-
Usage:
-
Fire Safety
-
Connecting Thread:
-
Storz, NH,BIC or JIC
-
Max Working pressure:
-
1.6Mpa

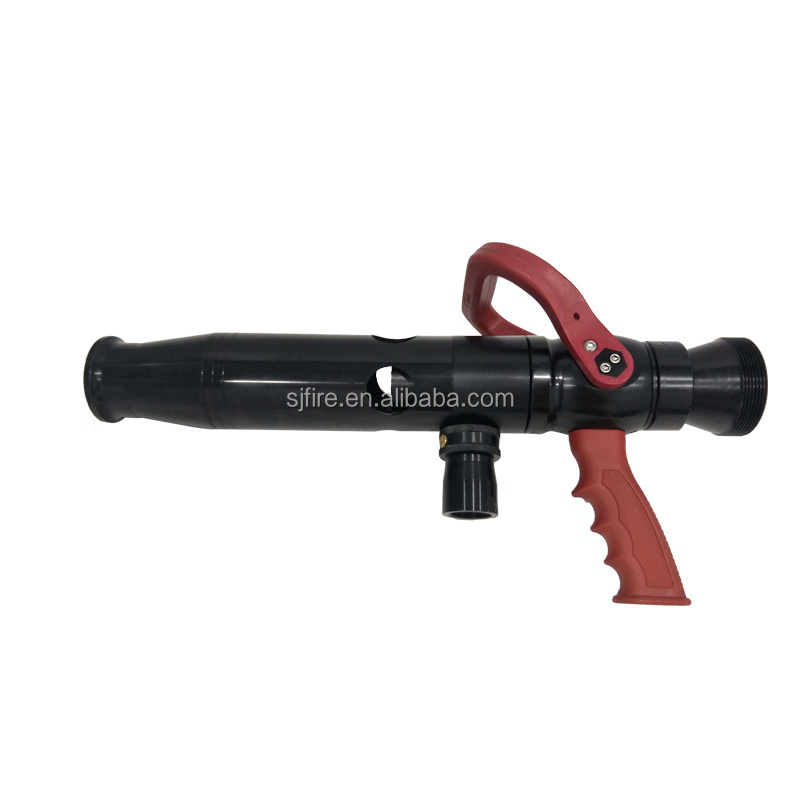

PQ8 Self-priming Foam Water Gun Fire Fighting Spray Nozzle
| Interface path | Work pressure(kg) | flow(L/Min) | Range(m) | Reaction force(kg) | Spray angle | ||||
| preset pressure | range | Gear position | flow(L) | deviation | DC | spray | |||
| DN40,50,65 | 6 | 4-12 | 1 | 150 | 12 | 23.4 | 14 | 0 | 0-100° |
| 2 | 300 | 24 | 30 | 16 | 0.5 | ||||
| 3 | 400 | 32 | 31 | 17 | 0.8 | ||||
| 4 | 480 | 36 | 33 | 18 | 1 | ||||
Fire direct-current nozzle is a tool for fire fighting, connect it with fire hose can inject intensiveand enrichment water. Long range and large amount of water are its adventages. It consists oftube tooth interface, nozzle body and nozzle. Fire direct-current switch nozzle is direct-currentnozzle add valve switch, which can control water by switch. Direct-current spray nozzle is newproduct developed by our company, it has direct-current, spray and switch three functions, cansatisfy customer various of needs
Main Features
1) Pattern Identification.
2) Hard Anodized Aluminum labels,Laser Engraved.
3) Simple to operate (1/4 turn from straight stream to fog)
4) Raised lug marks straight stream for limited visibility operations
5) Easy to service and repair.
6) CCC certificate.
7) Compatible with Quick Attach Foam Tube
Strong light weight aluminum construction Constant Selectable Flow rate
Tight stream and 130° wide dense fog pattern
Quality stream performance even at low pressure
Replaceable spinning teeth
Excellent for use with foam tube
Working pressure:100PSI or 7bar
Connection size available:1.5", 2.5“
Connections type available:Storz, NH,BIC or JIC
Max flow distance:34M
Max working pressure:16bar
Options / Accessories:
1.Stainless Steel spinning teeth,Shut off Ball Valve and strainer
2.Repair Kit.
3.Foam Tube Connection
4.OEM and Customer`s Logo are also available
