Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XPROMISE
-
Model Number:
-
XP-360S+320
-
Warranty:
-
18 Months, 18 months
-

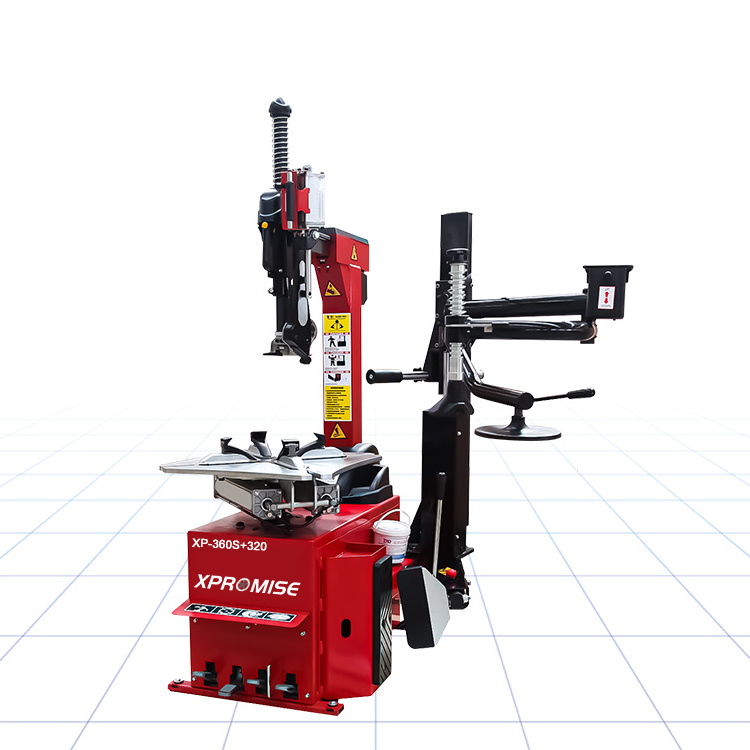

Product name:
-
Tire Changer Machine
-
Outside Clamping:
-
11"-24"
-
Inside Clamping:
-
13"-26"
-
Max. Tire Width:
-
3-14
-
Max. Tire Diameter:
-
1100mm
-
Motor:
-
110V/220V/380V 50/60HZ
-
Power:
-
1.1KW/0.75KW
-
Turntable revolutions:
-
6.5rpm
Quick Details
-
Motor Power:
-
1.1KW/0.75KW
-
Operating Pressure:
-
8-10bar, 8-10bar
-
Power Supply:
-
110V/220V/380V 50/60HZ
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XPROMISE
-
Model Number:
-
XP-360S+320
-
Warranty:
-
18 Months, 18 months
-
Product name:
-
Tire Changer Machine
-
Outside Clamping:
-
11"-24"
-
Inside Clamping:
-
13"-26"
-
Max. Tire Width:
-
3-14
-
Max. Tire Diameter:
-
1100mm
-
Motor:
-
110V/220V/380V 50/60HZ
-
Power:
-
1.1KW/0.75KW
-
Turntable revolutions:
-
6.5rpm
Product Description
Specification
|
item
|
value
|
|
Motor
|
1.1KW/0.75KW
|
|
Operating Pressure
|
8-10bar
|
|
Power Supply
|
110V/220V/380V 50/60HZ
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
XPROMISE
|
|
Model Number
|
XP-360S+320
|
|
Warranty
|
18Months
|
|
Product name
|
Tire Changer Machine
|
|
Outside Clamping
|
11"-24"
|
|
Inside Clamping
|
13"-26"
|
|
Max. Tire Diameter
|
1100mm
|
|
Packing dimension
|
1.14*0.76*0.93m
|
FEATURES
1. The turntable is equipped with a cylinder with an inner diameter of Φ80mm as standard.Compared with the cylinders of other products, the force of supporting and clamping the hub can be increased by more than 50KG. Avoid wheel hub damage caused by slippage of the claws during tire disassembly and assembly
2. The gasket of the turntable not only serves the purpose of safety protection for the operatorbut also avoids the wear of the surface of the turntable and improves the service life.
3. The new aluminum pedal chassis design not only takes into account the air tightness andstability, but also improves the pedal strength, which is in line with ergonomic design
4. The aluminum cylinder with a cylinder diameter of 180 is used to increase the strength of the shovel tire to avoid the
corrosion of the cylinder body and increase the service life
5. The reinforced square shaft and the lengthened hexagonal shaft greatly increase the strength of the whole machine
6. Optional 320 assistant, easy to operate, simple and quick, and improve the overall efficiency of tire removal
2. The gasket of the turntable not only serves the purpose of safety protection for the operatorbut also avoids the wear of the surface of the turntable and improves the service life.
3. The new aluminum pedal chassis design not only takes into account the air tightness andstability, but also improves the pedal strength, which is in line with ergonomic design
4. The aluminum cylinder with a cylinder diameter of 180 is used to increase the strength of the shovel tire to avoid the
corrosion of the cylinder body and increase the service life
5. The reinforced square shaft and the lengthened hexagonal shaft greatly increase the strength of the whole machine
6. Optional 320 assistant, easy to operate, simple and quick, and improve the overall efficiency of tire removal
Details Images
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
