Quick Details
-
Brand Name:
-
Shangdian
-
Product name:
-

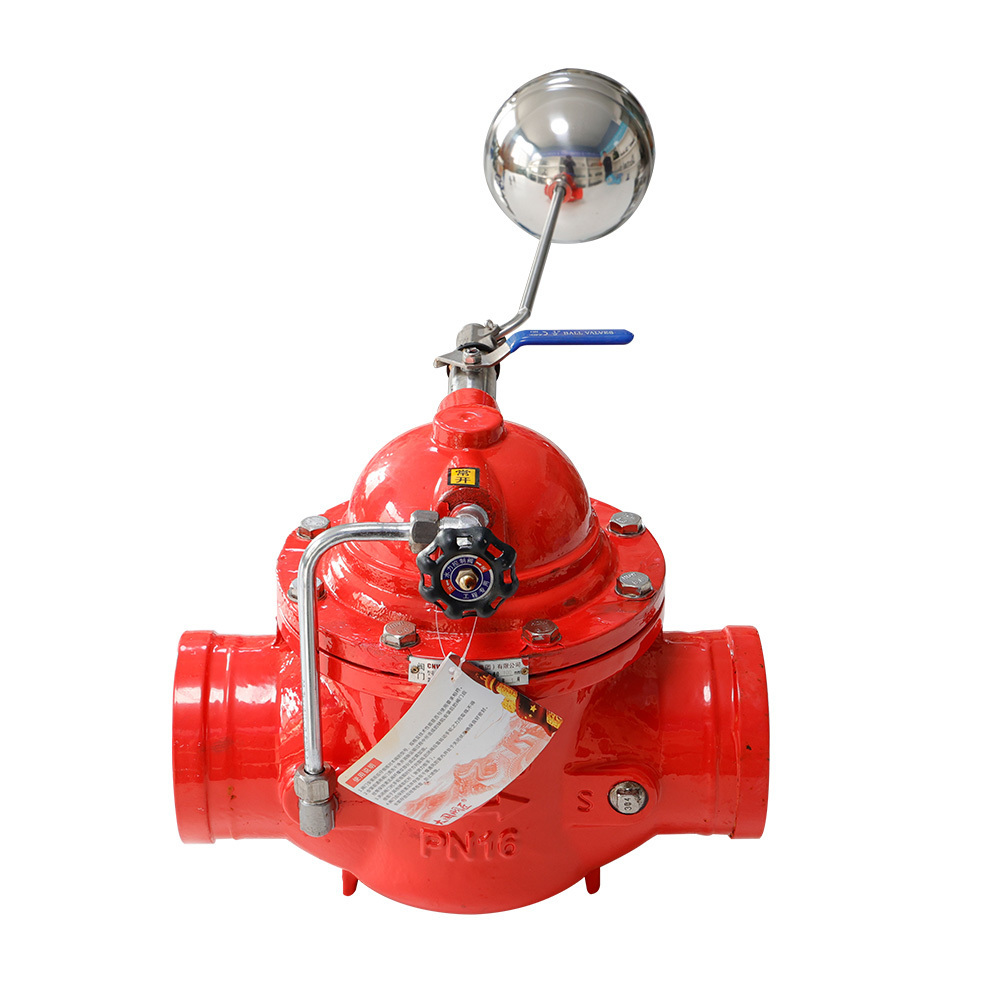

Float Switch Motorized Groove Control Ductile Iron Floating Ball Valve
-
Material:
-
Ductile iron
-
Size:
-
DDN100/customized
-
Medium:
-
Water oil gas
-
Nominal pressure(PN):
-
16
-
Standard or Nonstandard:
-
Standard
-
Connection type:
-
Groove
-
Structural style:
-
Floating ball valve
-
Driving method:
-
Hydraulic control
Quick Details
-
Port Size:
-
DN100/customized
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
G100X
-
Brand Name:
-
Shangdian
-
Product name:
-
Float Switch Motorized Groove Control Ductile Iron Floating Ball Valve
-
Material:
-
Ductile iron
-
Size:
-
DDN100/customized
-
Medium:
-
Water oil gas
-
Nominal pressure(PN):
-
16
-
Standard or Nonstandard:
-
Standard
-
Connection type:
-
Groove
-
Structural style:
-
Floating ball valve
-
Driving method:
-
Hydraulic control
Product Information
1. The pressure difference between the upstream and downstream is driven by a pilot valve, which controls the diaphragm hydraulic differential operation and is fully hydraulically automatically adjusted, thereby making the main valve disc fully open or fully closed or in a regulating state;
2. When the pressure water entering the control room above the diaphragm is discharged into the atmosphere or downstream low-pressure area, the pressure value acting on the bottom of the valve disc and below the diaphragm is greater than the pressure value above, so the main valve disc is pushed to the fully open position;
3. When the pressure water entering the control room above the diaphragm cannot be discharged into the atmosphere or downstream low-pressure area, the pressure value acting above the diaphragm is greater than the pressure value below, so the main valve disc will be pressed to the fully closed position;
4. When the pressure value in the control room above the diaphragm is between the inlet pressure and outlet pressure, the main valve disc is in a regulating state, and its regulating position depends on the joint control effect of the needle valve and adjustable pilot valve in the conduit system.
2. When the pressure water entering the control room above the diaphragm is discharged into the atmosphere or downstream low-pressure area, the pressure value acting on the bottom of the valve disc and below the diaphragm is greater than the pressure value above, so the main valve disc is pushed to the fully open position;
3. When the pressure water entering the control room above the diaphragm cannot be discharged into the atmosphere or downstream low-pressure area, the pressure value acting above the diaphragm is greater than the pressure value below, so the main valve disc will be pressed to the fully closed position;
4. When the pressure value in the control room above the diaphragm is between the inlet pressure and outlet pressure, the main valve disc is in a regulating state, and its regulating position depends on the joint control effect of the needle valve and adjustable pilot valve in the conduit system.
|
Product name
|
Trench floating ball valve
|
|
Availably Size
|
DN100/customized
|
|
Nominal pressure(Mpa)
|
1.6
|
|
Body material
|
Ductile iron
|
|
Connection type
|
Groove
|
|
Media
|
Water/oil/air etc
|
|
Structural style
|
Floating ball valve
|
|
Driving method
|
Hydraulic control
|
Product Show
Product Feature
1.Reasonable and novel structure, reasonable use of the hydraulic principle to control.
2.Stable and reliable operation, large flow.
3.Valve clack quick opening and slow closure, no water hammer impacting(closing time adjustable).
4.High precision of pressure reducing and relief, large range for adjusting.
5.Good sealing ability, long service life.
6.Easy installation and maintenance.
2.Stable and reliable operation, large flow.
3.Valve clack quick opening and slow closure, no water hammer impacting(closing time adjustable).
4.High precision of pressure reducing and relief, large range for adjusting.
5.Good sealing ability, long service life.
6.Easy installation and maintenance.
Product Application
widelyused in chemical industry ,the petroleum industry,water treatment industry,construction industry ,mechanical industry,metallurgical industry etc
