Quick Details
-
Brand Name:
-
portable x-ray animal machine
-
Model Number:
-
JF-10
-
Properties:
-
Medical X-ray Equipments & Accessories
-
Advantage:
-
easy carrying
-
Property 1:
-
Diagnostic
-
Property 2:
-
x-ray unit for veterinary
-
Product name:
-
portable x-ray animal machine
-
Function:
-
x-ray animal
Quick Details
-
Warranty:
-
4 years
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
portable x-ray animal machine
-
Model Number:
-
JF-10
-
Properties:
-
Medical X-ray Equipments & Accessories
-
Advantage:
-
easy carrying
-
Property 1:
-
Diagnostic
-
Property 2:
-
x-ray unit for veterinary
-
Product name:
-
portable x-ray animal machine
-
Function:
-
x-ray animal

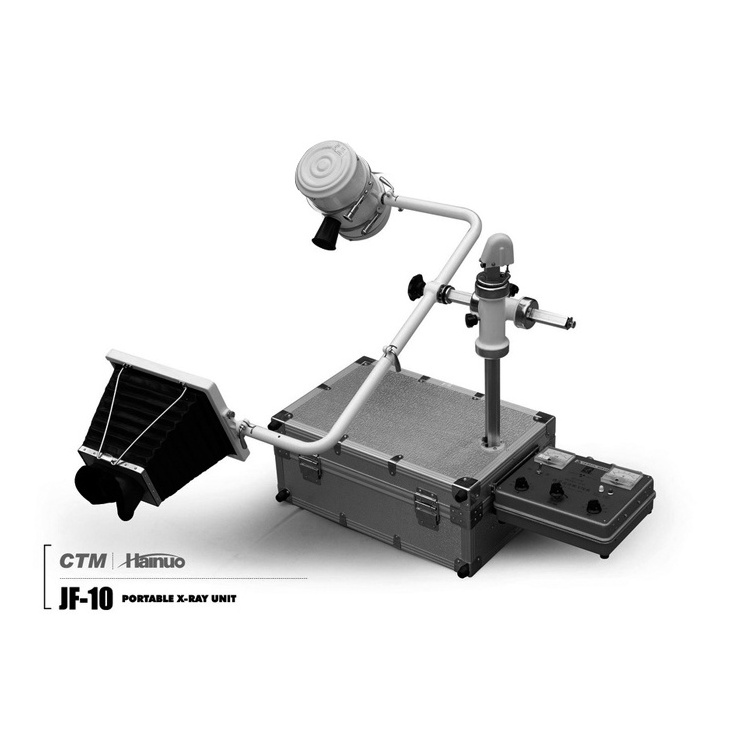

portable x-ray animal machines wholesale medical supplies
Features:
This unit is Shock-proff,ray-roof,single-focus,and self-rectified x ray unit,it applies to medical fluoroscope and radiography on mouth,carity bone,heart, skull as well as contraceptive ring.
Specifications:
| Maximum rating: | |
| For fluoroscopy: | 75 kVp 3-5Ma(uncontinuous use) |
| For radiography: | 75kVp 10Ma 6sec(interval time 3 minutes)(Routine fluoroscopy condition:65kVp 3Ma) |
| Power supply: | AC220V ±10%,50Hz,1Kva |
| current: | for fluoroscopy 2A(uncontinuous ) |
| for radiography 6A(instantaneous) | |
| size of screen: | 203mm x 254mm |
| Range of movement: | up-down:220mm,left-right:130mm. |
| Tube turning angle: | vertical 360°,horizontal 320° |
| volumn | 50cm x 31cm x 18cm |
| Weight: | 25kgs |
