Quick Details
-
Application:
-
Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard
-
Type:
-
Construction Equipment
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Haoke
-
Model Number:
-
ZLP800
-
Material:
-
Hot Galvanized/Steel painted/Aluminum alloy
-
Voltage:
-
3Phases
-
Certificate:
-
ISO/CE/EAC
-
Rated load(kg):
-
800kg
-
NO.of platform:
-
3
-
Motor power (kw):
-
2*1.8 (50HZ/60HZ)
-
Max Lift Height(m):
-
300
-
Counterweight:
-
Concrete/Concrete with steel cover/Cast-Iron
-
Product name:
-

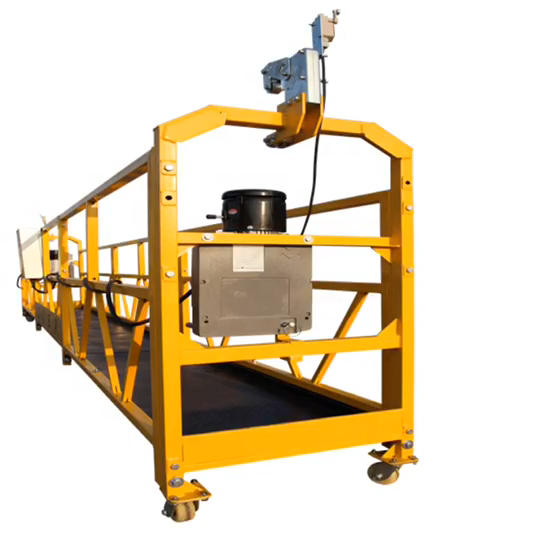

Zlp Hoist Suspended Platform
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, NONE
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, NONE, Others
-
Application:
-
Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard
-
Type:
-
Construction Equipment
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Haoke
-
Model Number:
-
ZLP800
-
Material:
-
Hot Galvanized/Steel painted/Aluminum alloy
-
Voltage:
-
3Phases
-
Certificate:
-
ISO/CE/EAC
-
Rated load(kg):
-
800kg
-
NO.of platform:
-
3
-
Motor power (kw):
-
2*1.8 (50HZ/60HZ)
-
Max Lift Height(m):
-
300
-
Counterweight:
-
Concrete/Concrete with steel cover/Cast-Iron
-
Product name:
-
Zlp Hoist Suspended Platform
Parameter:
|
Property Model No. |
ZLP630 |
ZLP800 |
ZLP1000 |
|
|
Rated load( kg ) |
630 |
800 |
1000 |
|
|
Lifting speed( m/min ) |
9~ 11 |
8~ 10 |
8~10 |
|
|
Motor power( kw ) |
2×1.5 50HZ/60HZ |
2×1.8 50HZ/60HZ |
2 × 2.2 50HZ/60HZ |
|
|
Brake torque( Km ) |
16 |
16 |
16 |
|
|
Steel rope angle adjusting range(°) |
3°- 8° |
3°- 8° |
3°- 8° |
|
|
Distance between two steel rope( mm ) |
≤100 |
≤100 |
≤100 |
|
|
Rated stretch of front beam( mm ) |
1500 |
1500 |
1500 |
|
|
Suspending platform |
Locking |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
|
|
Nr.Of platform rack |
Single rack |
Single rack |
Single rack |
|
|
Nr.Of platform |
3 |
3 |
3 |
|
|
L×W×H( mm ) |
(2000×3)×690×1 300 |
(2500×3)×690×1 300 |
(2500×3)×690×1 300 |
|
|
Weight( kg ) |
375 Kg |
410 Kg |
455kg |
|
Suspending mechanism(kg) |
2×175 Kg |
2×175 Kg |
2×175 Kg |
|
|
Counterweight(kg) optional |
25×36pcs |
25×40pcs |
25×4 4 pcs |
|
|
Diameter of steel rope(mm) |
8.3 |
8.6 / 9.1 |
8.6 / 9.1 |
|
|
Max Lifting height(m) |
300 |
300 |
300 |
|
|
Motor rotation speed(r/min) |
1420 |
1420 |
1420 |
|
|
Voltage(v) 3PHASES |
220V/380V/ 415V |
220V/380V/ 415V |
220V/380V/ 415V |
|
The Height of the platform can be adjusted within 1150-1800mm with arm which can be stretched out and drawn back.It can be widely used parapet and complicated building in different height.And we can also supply customized platform to meet different requirement from the customers .
