SPI DC5-24V SD card Programmable dream color LED controller for dream color light strips

SPI DC5-24V SD card Programmable dream color LED controller for dream color light strips

FOB Reference Price: Get Latest Price

≥10 Pieces

US $7.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product Weight（kg）:: 0.3

Place of Origin:: Hunan, China

Brand Name:: GRACE

Connection Mode:: Common anode

SD Card:: 128MB-2GB

Control Mode:: Manual Switch

Support IC:: LPD6803,8806,TM1803,1809,1812,1829,UCS1903,WS2811,2801, TLS3001,3008

Number of Pixels:: Max 2048 ICs

Quick Details

Warranty(Year):: 3-Year

Type:: dream color LED controller

Luminous Efficacy(lm/w):: 80

Product Weight（kg）:: 0.3

Place of Origin:: Hunan, China

Brand Name:: GRACE

Connection Mode:: Common anode

SD Card:: 128MB-2GB

Control Mode:: Manual Switch

Support IC:: LPD6803,8806,TM1803,1809,1812,1829,UCS1903,WS2811,2801, TLS3001,3008

Number of Pixels:: Max 2048 ICs

Size	L160W88H25mm	working voltage	DC5V-24V
Number of pixels	2048 pixel	working temperature	-30-85
Signal port	3pin connect port	SD card	128MB-2GB
Color Mode	96 Pattern	Speed Control	100 adjustable
Support chip	LPD8806/LPD8809/LPD6803/D705/1101/6909/6912/TM1803/TM1804/TM1809/TM1812/TM1903/TM1904/TM1909/TM1912/UCS6909/UCS6912/UCS7009/UCS5903/UCS1903/UCS1909/UCS1912/UCS3903/DMX512/WS2801/WS2803/WS2811/DS189/TLS3001/TLS3002/TLS3008/P9813/SM16715/SM16716/BS0901,BS0902/BS0815

Products Description

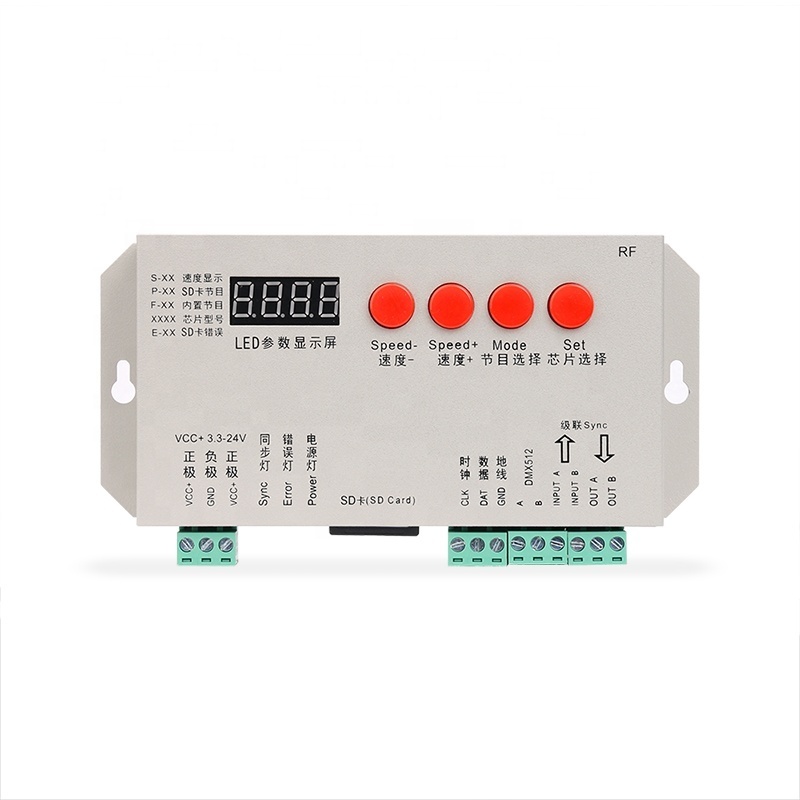

SD card programmable dream color LED controller

1. 32 level -65536 grayscale control, software Gamma correction processing.
2. support various points, lines, surface light source, support various rules, special-shaped processing.
3. the controller can take 2048 pixels.
4. compatible with single and double line IC, single line IC lamps, no need to connect CLK clock line.
5. The data line DAT of the luminaire, the CLK of the clock line and the GND of the negative electrode.

Notes:
(1). When the controller port is loaded with 512 lights, the playback speed can reach 30 frames per second, and when the port is loaded with more than 512/1024 lights, the frame frequency automatically decreases with the increase of the number of lights.
(2). For the output of TTL signal, the controller must supply the ground with the lamp (that is, connect the output of the control ground wire with the ground wire of the lamp). By default, the signal generated by the controller is TTL signal.

6, DMX512 lamp data line A is connected to the controller DMX512 lamp interface A, data line B is connected to the controller DMX512

Function of a key

1, SPEED+ key, speed up the highest playback speed S-19.
2, SPEED- key, slow down the playback speed S-01.
3, MODE key, switch program.
4. SET key, set the chip type, select the current chip, wait 8 seconds for automatic saving, and restart the power supply.

Note: Do not shut down after selecting the key, wait 8 seconds for all Settings to be automatically saved, and then restart the power to start with the new setting.

Display parameter

1. Speed adjustment range from S-01 to S-19 Optional: the smaller the value, the slower the speed, the larger the value, the faster the speed, the maximum speed of multiple synchronization is S-16, set Good speed wait 8 seconds to automatically save, restart the power.
2.Program selection range from P-01 to P-16: up to 30 programs can be stored, and each press will switch
Wait 8 seconds for the next program to save automatically.
3.A-01 Automatic loop: When the mode is selected to A-01, it will automatically play from the first program to the last one The show, in turn.

Controller without SD card, built-in 96 change mode

Note:

Before copying files to the SD card, you must format the SD card first. Note that you must format the SD card before each copy.

The SD card must be formatted in "FAT" format.

The SD card on the controller cannot be hot-swappable. That is, disconnect the power supply of the controller each time you insert or remove an SD card.

FAQ

1. What is the MOQ?
Small order welcome, MOQ=1PC.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
LED Dimmer,LED Controller,Power supply,LED Strip,LED Accessories

4. why should you buy from us not from other suppliers?
Our company has a perennial high-quality professional R&D team engaged in the field of LED lighting high-tech Product, mainly engaged in LED lighting products, LED lighting and accessories, controllers, power adapter, R&D/sales of other lighting products.
