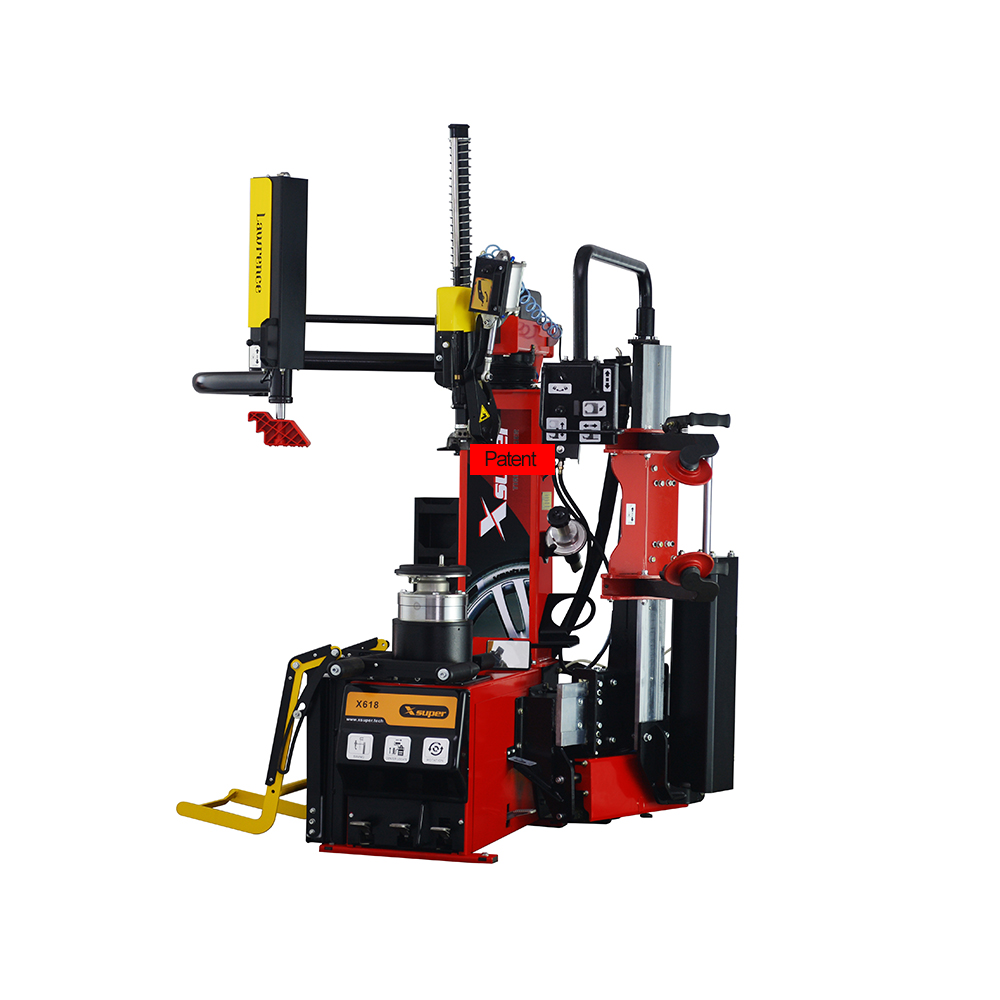

Intelligent and Touchless tire changer for Tire Service with Tire Lifter

Intelligent and Touchless tire changer for Tire Service with Tire Lifter

FOB Reference Price: Get Latest Price

≥1 Pieces

US $4725

≥5 Pieces

US $4500

≥10 Pieces

US $4286

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Other Country

Brand Name:: Lawrence

Model Number:: 618

Warranty:: 12 Months

Tire Pressure:: 2500kgf

Noise:: <70db

Gross Weight:: 500kg

motor power:: 0.8~1.1kw

power supply:: 110v/220v/400v

Max. inflating pressure:: 3.5bar (50 psi)

Rim clamping:: 12''- 30''

Max. wheel diameter:: 1200mm(47'')

Max. wheel width:: 406mm(16'')

Max. spindle torque:: 1200Nm

Quick Details

Motor Power:: 0.8kw / 1.1 Kw

Operating Pressure:: 8~10bar

Power Supply:: 110V/220V/380V

Place of Origin:: Other Country

Brand Name:: Lawrence

Model Number:: 618

Warranty:: 12 Months

Tire Pressure:: 2500kgf

Noise:: <70db

Gross Weight:: 500kg

motor power:: 0.8~1.1kw

power supply:: 110v/220v/400v

Max. inflating pressure:: 3.5bar (50 psi)

Rim clamping:: 12''- 30''

Max. wheel diameter:: 1200mm(47'')

Max. wheel width:: 406mm(16'')

Max. spindle torque:: 1200Nm

Center Air Lock Automatically

· Italian design, equipped with high standard and high strength accessories.

· Powerful pneumatic clamp and protect the tire.

· Center clamp design avoids clamping damage.

· Fast，safe and precise.

Italian Designed Leverless Tool(Patent)

· Demounting without levers.

· No risk for rim and protects operator.

Dual-disc Bead Breaker

The unique dual-disc bead breaker facilitates bead breaking，making it faster

and more ergonomic and reducing the risk of damagingtire and rim.

One-click Step of Bead Press Disc

· Complete the separation of tire and rim in the most efficient way，which is proper

powerful and precise.

· To achieve optimal matching of tires and rims.

· Fast and ergonomic， reducing operator effort in case of large and heavy wheels.

· Exempting the laborious process of manually lifting tires.

Pneumatic Bead Press Arm

The auxiliary arm can better replace the power，making the work more

efficient and safer!

Three Positions Pressing Arm

· Three Positions Pressing Arm.

· Space saving and easy to operate.

· Which can adapt to different sizes of tires freely.

Pneumatic Swing-Arm System

· Saves space over tilt-column designs.

· Suitable for installation by the wall.

· Mounting head reset quickly and saving both time and

labor for mounting or dismounting the same size tires.

Robot Control

· Up and down by pneumatic control.

· Easy operation and save both time and labor.

· Variable speed motor or two speed inverter motor for your choice.

· Easy to control and operate，saving time.

Italian Original Portable Blast Inflation

· Gas-filled for the tyre quickly and directly. With double safety switch and

· made in Italy，more reliable and forceful.

SPECIFICATION
RIM CLAMPING	12''-32''
MAX. WHEEL DIAMETER	1200MM(47'')
MAX. WHEEL WIDTH	406MM(16'')
MAX.BEAD-BREAKER FORCE	12000N
OPERATING PRESSURE	8-10 BAR(116-145 PSI)
POWER SUPPLY	110V/ 240V(5-60Hz/1ph)
MOTOR POWER	1.1KW
MAX. INFLATING PRESSURE	3.5 BAR( 50 PSI)
NET WEIGHT	500KG
GROSS WEIGTH	550KG
PACKING DIMENSION	1340X1410X2040 MM

FAQ

1.Q:Can we use 380V/50HZ as power supply ?

A:Yes,additional cost needed .

2.Q:Can I be exclusive representative?

A:We are looking for long term exclusive distributor except in Brazil ,India, South Africa, Pakistan, Malaysia. Welcome to join Lawrence!

3.Q:Can I get 2 years warranty or longer warranty ?

A:We offer 1 year warranty for free.2 year warranty with extra money.

4.Q:Can I pay in RMB currency?

A:Yes, but we need to add extra 20% based on the current price. Because we need to pay more tax, sowe suggest you pay in US dollars.

5.Q:What is delievery time ?

A:2 working days upon receiption of down payment .

6.Q:How long is the lifetime of the machine ?

A:At least ten years, under good preservation
