Wellhead Wireline 7 1/16"-10000Psi API Hydraulic Dual Ram BOP Blowout Preventer

FOB Reference Price: Get Latest Price

≥1 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Usage:: Oil

Application:: Wellhead

Product name:: Blowout preventer

Advantage:: High Performance

Standard:: API 16A

Key words:: Oil Wells

Size:: 7 1/2"

Quick Details

Place of Origin:: Shaanxi, China

Brand Name:: SAIFU

Color:: Request

Usage:: Oil

Application:: Wellhead

Product name:: Blowout preventer

Advantage:: High Performance

Standard:: API 16A

Key words:: Oil Wells

Size:: 7 1/2"

Product Overview

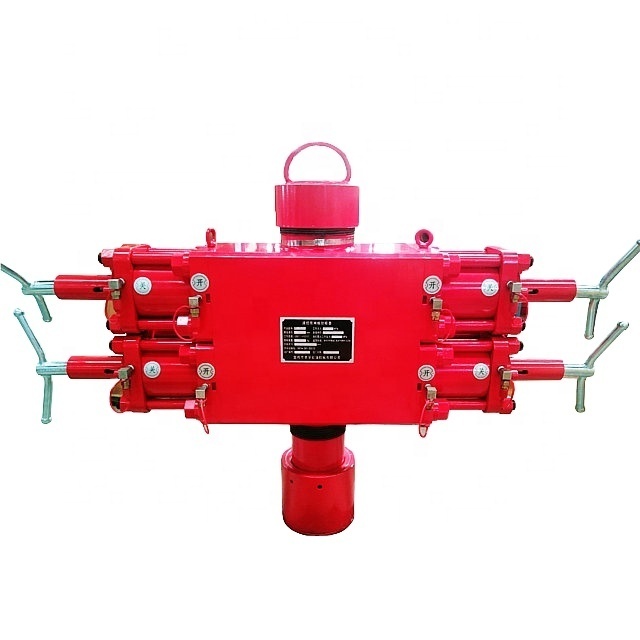

7 1/16"-10000psi Hydraulic Dual Ram BOP

This BOP is designed and manufactured based on the adopting the foreign advanced technology and then develop and design by ourselves.The rams inside this BOP are long and round structure, all seals are made by good rubber and good in sealing. This Ram BOP owns the advantages of simple structures, attractive appearance, easy operation, and quick maintenance, etc.The ram BOP is consist of body, intermediate flange, bonnet, operating piston, opening piston, closing piston and ram assembly,locking housing, locking screw etc.The upper and bottom connection of the BOP are all in accordance with API SPEC 6A .The parts which will touch with the fluid are all meet NACE-MR-01-75 anti-- H2S requirements.BOP is designed for controlling the blowout during the well drilling. The single and double ram BOP match to the control system.They can used incorporate or separately and they also can used with annular BOP.

Main Parameter			main parameter
No.	Item	Data
1	Model	2FZ18-70
2	ID	7 1/16"(180mm)
3	Working pressure	10000 Psi
4	Intensity test pressure	15000Psi
7	Ram size	Blind ram,2 3/8'', 2 7/8'',3 1/2'' ram
8	Connection type	Top and bottom connection 7 1/16''-10000 Psi Flange
9	Service environment	Crude oil, natural gas and drill fluid
10	Working temperature	T20(-29℃~ +121℃)

Our Company

Baoji Safe Petroleum Machinery Co., Ltd. is a technical service company with professional expertise in supplying oilfield
equipments. It's located in Baoji High-tech Development Zone,Shaanxi,China.Basing on ISO 90001:2008 system,good quality is our survivable foundation.All equipments are produced according to API standard, and we have API 6A,16A,16C and API 11D1 certificates.
Considering from clients' requirements, Baoji Safe could satisfy all kinds of tool requirements and manage all deliveries very well.Professional services, reliable quality and attractive prices, our products already been used in the Middle
East,Africa,Middle Asia, and South America.
"Service for human getting energy continually and safely" corporation Mission for our company. We sincerely hope to cooperate with you for provide good service for oil & gas produce prolifically.
