Quick Details
-
Rolling thinckness:
-
0.3-0.8 mm
-
Place of Origin:
-
Tianjin, China
-
Voltage:
-
380V 50HZ 3P or Customize as customer
-
Dimension(L*W*H):
-
6*1.5*1.3 m
-
Weight:
-
5500 kg
-
Feeding width:
-
As customer need product drawing
-
Marketing Type:
-
Hot sell product 2024
-
Coil width before rolling:
-
900mm, 915mm, 1000mm, 1200mm, 1250mm
-
Raw material:
-
PPGI
-
Export port:
-
Tianjin port
-
Need container:
-
1*20 feet
-
Machine color:
-
As customer' need
-
Control box language:
-
As customer' need
-
Machine cutter material:
-
Cr 12
-
After Warranty Service:
-
Whole life
-
Control system:
-
Taiwan Delta
Quick Details
-
Type:
-
Roll forming machine
-
Tile Type:
-
galvanized steel or PPGI
-
Production Capacity:
-
10-20 m/min
-
Rolling thinckness:
-
0.3-0.8 mm
-
Place of Origin:
-
Tianjin, China
-
Voltage:
-
380V 50HZ 3P or Customize as customer
-
Dimension(L*W*H):
-
6*1.5*1.3 m
-
Weight:
-
5500 kg
-
Feeding width:
-
As customer need product drawing
-
Marketing Type:
-
Hot sell product 2024
-
Coil width before rolling:
-
900mm, 915mm, 1000mm, 1200mm, 1250mm
-
Raw material:
-
PPGI
-
Export port:
-
Tianjin port
-
Need container:
-
1*20 feet
-
Machine color:
-
As customer' need
-
Control box language:
-
As customer' need
-
Machine cutter material:
-
Cr 12
-
After Warranty Service:
-
Whole life
-
Control system:
-
Taiwan Delta

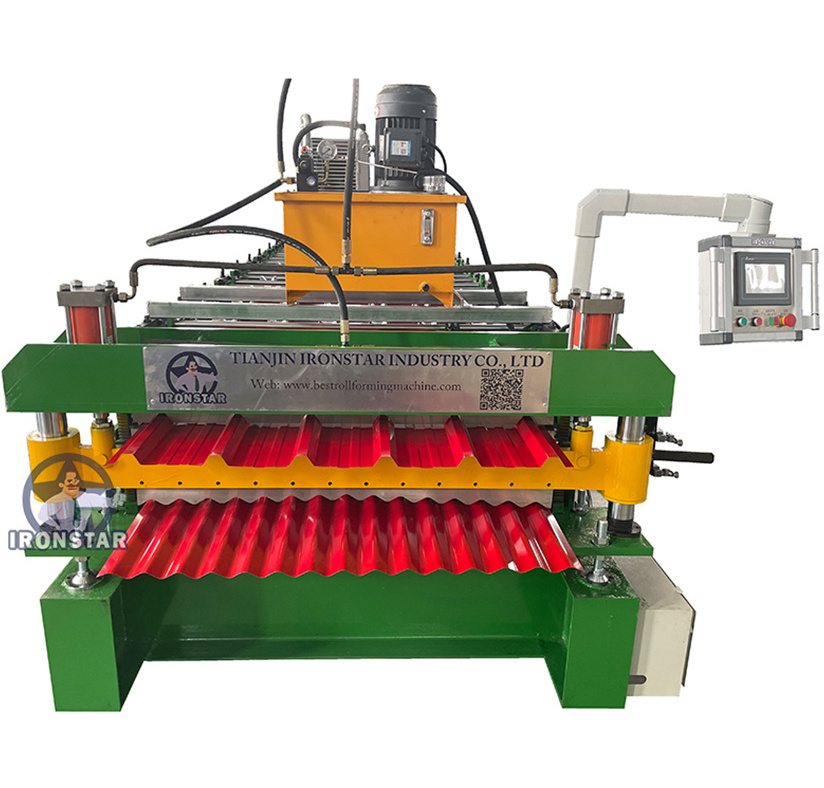

Double layer roll forming machine | double deck roll forming machine | 2 layer roll forming machine
To save space and save money, some customer like to choose double layer roll forming machine, double layer roll forming machine popular sell in many countries, 2 shapes make in one machine, common it include:
2. Trapezoidal sheet and corrugated sheet double layer machine
3. Corrugated sheet and corrugated sheet double layer machine
4. Trapezoidal sheet and glazed tile sheet double layer machine
5. Corrugated sheet and glazed tile sheet double layer machine
Working flow
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
| Part details | Item Name | Specification |
| Material | Raw material | PPGI |
| Thickness | 0.3-0.8 mm | |
| Machine | Roller station | Depend on customer' drawing |
| Shaft diameter | 70 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | 45# steel with 0.05mm chrome | |
| Machine size | About 6×1.5×1.3 m | |
| Machine weight | About 5.5 ton | |
| Machine color | As customer' request | |
| Working speed | 3-8 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1 mm | |
| Material | Cr 12 | |
| Operate | Hydraulic cutting | |
| Power | Driving way | Chain 1 inch |
| Main power | 5.5 kw | |
| Pump power | 7.5 kw | |
| Voltage |
380v/50HZ,3P or customize as customer' request |
|
| Control system | PLC brand | Delta made in Twaiwan |
| Screen | Touchable screen | |
| Language | Chinese and English or add language as customer need | |
| Decoiler | Operation | Manual |
| Weight capicatity | 5 ton | |
| Price | Free as gift | |
| Receiving table | Operation | Manual |
| Length | 3 m | |
| Price | Free as gift |
If u want to see the machine working video, please contact with Gladys with any way below
1. 840 trapezoidal sheet roll forming machine
840 roofing sheet roll forming machine | metal roof roll forming machine | metal roof machine | trapezoidal sheet roll forming machine | roofing sheet making machine | wall sheet roll forming machine
840 trapezoidal sheet roll forming machine popular sell in many countries, Coil width before rolling is 1000mm /1200mm / 1250mm. After rolling product width is 840mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm. Machine details is like up type:
2. 1000 trapezoidal sheet roll forming machine
1000 roofing sheet roll forming machine | metal roof roll forming machine | metal roof machine | trapezoidal sheet roll forming machine | roofing sheet making machine | wall sheet roll forming machine
1000 trapezoidal sheet roll forming machine popular sell in many countries, Coil width before rolling is 1200mm /1220mm / 1250mm. After rolling product width is 1000mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm. Machine details is like up type:
3. Corrugated roofing sheet roll forming machine
1064 Corrugated roll forming machine | corrugated roofing sheet machine | corrugated machine | 836 corrugated roofing sheet machine
Corrugated roofing sheet roll forming machine popular sell in many countries, Coil width before rolling is 1000mm / 1200mm /1220mm / 1250mm. Material common is PPGI material, material thickness common between 0.3-0.8 mm. Machine details is like up type:
4. Glazed tile roll forming machine
Glazed tile machine | step tile machine | C tile machine | tile make machine | roof tile roll forming machine
Glazed tile roll forming machine popular sell in many countries, Coil width before rolling is 1000mm / 1200mm /1220mm / 1250mm. Material common is PPGI material, material thickness common between 0.3-0.8 mm. Machine details is like up type:
