Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hokang
-
Voltage:
-
220/380/415/420/440V
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
20m x 1.1m x 1.4m
-
Weight:
-
5000 kg
-
Product name:
-
Tube Roll Making Machine
-
Rectangle Pipe Diameter:
-
F10*20mm-F30*20mm
-
Square Pipe Diameter:
-
F10*10mm-F25*25mm
-
Round Pipe diameter:
-
6-31.8mm
-
Frame:
-
300H/350H Steel Welding
-
Roller material:
-
45#steel Chrome Plated
-
Shaft material:
-
High Grade No.45 Forged
-
Cutting blade:
-
Cr12 High Grade Steel
-
Control system:
-
PLC(imported Brand)
-
Decoiler:
-
Manual / Electric Decoiler
Quick Details
-
Pipe Material:
-
Stainless steel
-
Marketing Type:
-
New Product
-
Production Capacity:
-
1-1.2Tons/ 8 hours
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hokang
-
Voltage:
-
220/380/415/420/440V
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
20m x 1.1m x 1.4m
-
Weight:
-
5000 kg
-
Product name:
-
Tube Roll Making Machine
-
Rectangle Pipe Diameter:
-
F10*20mm-F30*20mm
-
Square Pipe Diameter:
-
F10*10mm-F25*25mm
-
Round Pipe diameter:
-
6-31.8mm
-
Frame:
-
300H/350H Steel Welding
-
Roller material:
-
45#steel Chrome Plated
-
Shaft material:
-
High Grade No.45 Forged
-
Cutting blade:
-
Cr12 High Grade Steel
-
Control system:
-
PLC(imported Brand)
-
Decoiler:
-
Manual / Electric Decoiler
Products Overview

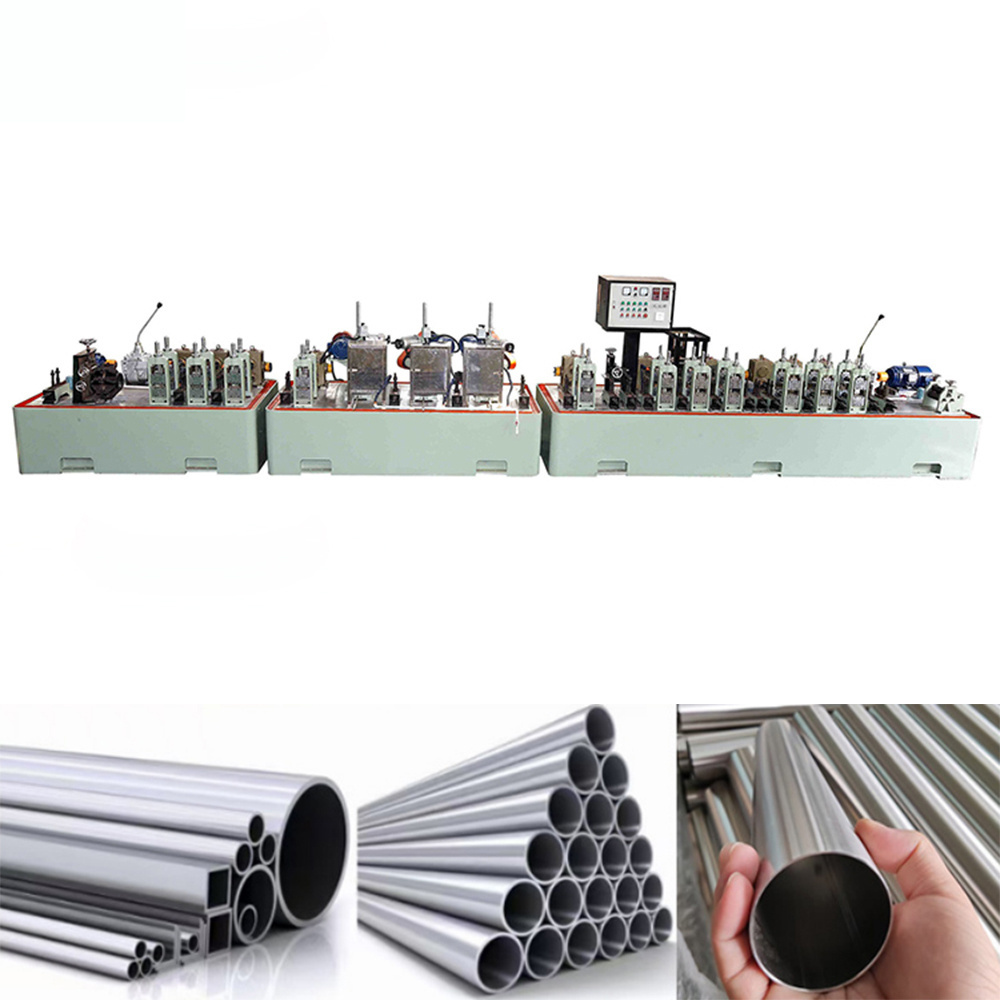

Stainless Steel Metal Tube Pipe Making Machine
Stainless steel industrial pipe making machine is mainly used to produce industrial stainless steel pipes. Due to the maturity of stainless steel welding pipe technology, seamless pipes have been replaced in many fields. It is widely used in chemical industry, medicine, distillery, petroleum, food, automobile, paper making, air conditioning and other industries.
Working Process :
Raw material (strip steel coil) → uncoiling → shearing and butt welding → material storage → leveling → forming and rolling → high-frequency welding → removing internal and external burrs → zinc supplement → spraying and cooling → sizing and shaping → rough straightening → water removal → sizing and cutting → pipe collection and binding. Fine Structure, Easy Operation, Professional Manufacturing, High Quality.
Specification
|
Model
|
Pipe Diameter
|
Pipe Thickness
|
Drive Motor
|
Dimension
|
Horizontal shaft diameter
|
Vertical shaft diameter
|
|
WL40
|
φ8-51mm
|
0.3-2.2mm
|
7.5kw+5.5kw
|
29m*1.5m
|
40mm
|
30mm
|
|
WL50
|
φ25-76mm
|
0.4-2.5mm
|
7.5kw+5.5kw
|
32m*1.5m
|
50mm
|
30mm
|
|
WL60
|
φ50-114mm
|
0.5-3.0mm
|
15kw+15kw
|
35m*1.8m
|
60mm
|
30mm
|
|
WL80
|
φ89-168mm
|
φ89-168mm
|
18.5kw+18.5kw
|
40m*2.5m
|
80mm
|
50mm
|
|
WL100
|
φ114-219mm
|
φ114-219mm
|
22kw+22kw
|
43m*3.0m
|
100mm
|
60mm
|
|
WL-120
|
φ168-325mm
|
φ168-325mm
|
37kw+37kw
|
48m*3.0m
|
120mm
|
80mm
|
Our Advantages
Stainless Steel Metal Tube Pipe Making Machine
1. CNC equipment parts processing, high product accuracy;
2. The machine is sturdy and durable, with little chance of maintenance;
3. Adopt Siemens motor and other brand accessories, with high performance;
3. Adopt Siemens motor and other brand accessories, with high performance;
4. Fully automatic, simple operation, continuous production and high efficiency;
5. The pipe making speed is 15% faster than that of peers, and the output is high;
6. The production cost is low, the material waste is small, and the finished product rate of pipe can reach more than 98%;
7. We have professional designers and planners to customize different solutions for our customers with different requirements, and help them make more reasonable suggestions on production line layout and production management.
8. Provide technical documents and support for mechanical installation, maintenance, operation, etc.
9. Provide machinery related transportation information, be responsible for loading goods and handling transportation related procedures, and pay attention to cargo safety and logistics information at all times.
Forming Part Of steel pipe making production line
High Frequency Welding Part Of steel pipe making production line
High Frequency Welding Part Of steel pipe making production line
Machine parts detail
Why Choose Us
♥ Over 20 years of experience.
♥ Customized according to customer requirements with OEM ODE Services.
♥ Favorable price and easy operation.
♥ For many years, we have always adhered to quality first and service foremost, and have developed high-quality agents in
Chile,Brazil, the Philippines, Malaysia, India, and other countries
♥ Professional technical team strictly controls every step of production to ensure the quality of each equipment.
♥ Provide technical guidance, production, installation, commissioning and maintenance services for our customers.
Our Technical Personnel Provide On-Site Services Overseas:
Our technical personnel arrive at the customer's site in Malaysia for technical guidance and training,If a customer encounters technical problems that are difficult to solve during use, we usually send professional and technical personnel to foreign customer sites for guidance and training. Therefore, if you want to do business in cold bending forming equipment, please feel free to contact our customer service personnel at any time.
♥ Customized according to customer requirements with OEM ODE Services.
♥ Favorable price and easy operation.
♥ For many years, we have always adhered to quality first and service foremost, and have developed high-quality agents in
Chile,Brazil, the Philippines, Malaysia, India, and other countries
♥ Professional technical team strictly controls every step of production to ensure the quality of each equipment.
♥ Provide technical guidance, production, installation, commissioning and maintenance services for our customers.
Our Technical Personnel Provide On-Site Services Overseas:
Our technical personnel arrive at the customer's site in Malaysia for technical guidance and training,If a customer encounters technical problems that are difficult to solve during use, we usually send professional and technical personnel to foreign customer sites for guidance and training. Therefore, if you want to do business in cold bending forming equipment, please feel free to contact our customer service personnel at any time.
