*Reduced hot spot risk * Higher energy yield * Reduced resistive loss *High conversion rate and high output rateStable performance
under weak light conditions
*PID free treatment upon request
*100% In-line Electrical Luminance tested
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
12years, 10 Years
-
Brand Name:
-
Xianghong
-
Model Number:
-
XHM-600W
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
2279X1236X35
-
Product name:
-

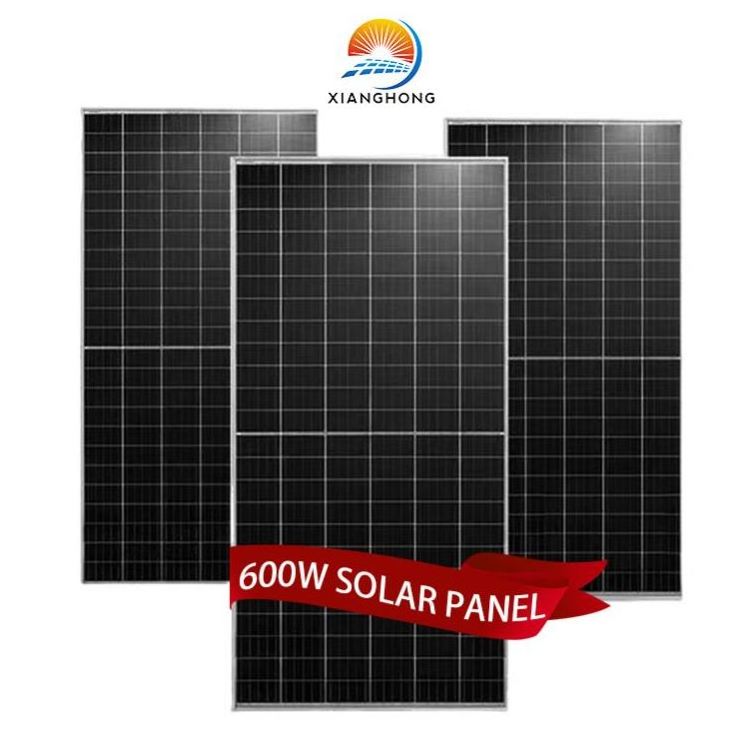

600w solar panel
-
Application:
-
Commercial
-
Solar cell:
-
210X210
-
Junction Box:
-
IP68 Rated
-
Frame:
-
Aluminum Alloy
-
Weight:
-
27.4kg
-
Connector:
-
Compatible Connector
-
Front Cover:
-
3.2mm Tempered Glass High Transmission
-
Number of Cells:
-
72pcs
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
PERC, Half Cell, N-TYPE
-
Panel Efficiency:
-
24%
-
Warranty:
-
12years, 10 Years
-
Brand Name:
-
Xianghong
-
Model Number:
-
XHM-600W
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
2279X1236X35
-
Product name:
-
600w solar panel
-
Application:
-
Commercial
-
Solar cell:
-
210X210
-
Junction Box:
-
IP68 Rated
-
Frame:
-
Aluminum Alloy
-
Weight:
-
27.4kg
-
Connector:
-
Compatible Connector
-
Front Cover:
-
3.2mm Tempered Glass High Transmission
-
Number of Cells:
-
72pcs
Product Description
|
Model
|
B144-550W
|
B144-560W
|
B144-580W
|
B144-590W
|
B144-600W
|
||||
|
Rated Maximum Power at STC
|
550W
|
560W
|
580W
|
590W
|
600W
|
||||
|
Open Circuit Voltage(Voc/V)
|
49.80
|
50.10
|
51.41
|
51.45
|
51.54
|
||||
|
Maximum PowerVoltage(Vmp/V)
|
41.95
|
42.25
|
43.22
|
43.32
|
43.44
|
||||
|
Short Circuit Current(Isc/A)
|
13.98
|
14.10
|
14.22
|
14.30
|
14.50
|
||||
|
Maximum Power Current(Imp/A)
|
13.12
|
13.26
|
13.42
|
13.62
|
13.81
|
||||
|
Module Efficiency(%)
|
21.3
|
21.7
|
22.44
|
22.83
|
23.22
|
||||
|
Power Tolerance
|
-0~+5%
|
|
|
|
|
||||
|
Standard Test Condition(STC)
|
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5
|
|
|
|
|
||||
Details of Solar Panel
Solar Cell Half Cut
Glass
*Antireflective coating to increase the module efficiency up to 22%
*Light transmittance improvement above 3%
*self-cleaning function
*Light transmittance improvement above 3%
*self-cleaning function
EVA Film
*Light transmittance more than 92%
*High resistance to heat and moisture
*UV resistance against ageing
*High resistance to heat and moisture
*UV resistance against ageing
Aluminum Frame
*Strong mechanical load resistance up to 5400 Pa
*Anodic oxidation layer resistant chemical corrosion
*Silver and black color optional
*Anodic oxidation layer resistant chemical corrosion
*Silver and black color optional
Junction box and MC4
*IP 68 protection grade
*High quality diodes for electric safety
*1500V system voltage available
*Reliable by-pass diodes assure surge protection protection
*High quality diodes for electric safety
*1500V system voltage available
*Reliable by-pass diodes assure surge protection protection
Back sheet
*Low moisture permeability against snail trail defect
*Excellent electric insulation for high system
voltage up to 1500V
*Outstanding weatherproof performance
*Excellent electric insulation for high system
voltage up to 1500V
*Outstanding weatherproof performance
