Quick Details
-
Voltage:
-
380V/50HZ/3PH
-
Disc Dia.:
-
Air flow(m³/h):24000
-
No Load Speed:
-
0.3-0.5
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GL
-
Model Number:
-
GL4-CE-11
-
Heating System:
-
RIELLO Brand Diesel Burner
-
Filters:
-
High Efficiency Filter
-
Color:
-
Red White Orange Blue
-
Warranty:
-
12 Months
-
Fans kind:
-
Air-intake/exhaust Fans
-
Door width(m):
-
3.0
-
Door height(m):
-
2.66
-
Usage:
-
Car Painting Baking
-
Lighting System:
-
Led Light
-
Product:
-
Downdraft Car Spray Booth
Quick Details
-
Power:
-
18KW
-
External Size:
-
7.0x5.3x3.5m
-
Internal Size:
-
6.9x3.9x2.7m
-
Voltage:
-
380V/50HZ/3PH
-
Disc Dia.:
-
Air flow(m³/h):24000
-
No Load Speed:
-
0.3-0.5
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GL
-
Model Number:
-
GL4-CE-11
-
Heating System:
-
RIELLO Brand Diesel Burner
-
Filters:
-
High Efficiency Filter
-
Color:
-
Red White Orange Blue
-
Warranty:
-
12 Months
-
Fans kind:
-
Air-intake/exhaust Fans
-
Door width(m):
-
3.0
-
Door height(m):
-
2.66
-
Usage:
-
Car Painting Baking
-
Lighting System:
-
Led Light
-
Product:
-
Downdraft Car Spray Booth

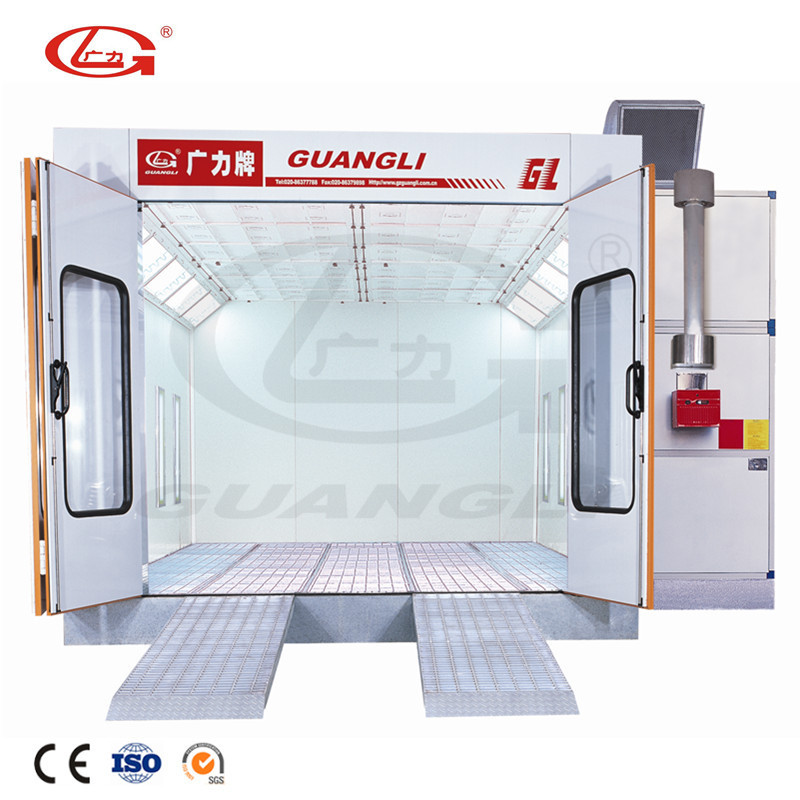

Professional manufacturer mobile paint spray booth with thickness wall panels
GuangLi Spray booth Feature
--Wall panel: sandwich style, δ=50mm,polystyrene. rock wool available as required.
--Basement: steel structure, full grids.
--R amp: 2 pcs of grids.
--Door: 3 pcs of front door without aluminum side cover. 1pcs of emergency door with pressure lock
--One 7.5kw intake fan and one 7.5kw exhaust fan.
--4m straight exhaust ducts, one 90° bend, and one 60° bend.5m straight chimney and 2 small bends
--1 manual VCD exhaust damper, electrical VCD as optional. One pressure meter.
--Spraying/baking transition damper, automatically air controlled.
--Heat exchanger: stainless steel. Riello G20 burner.
--Roof filter: 6 pcs of filter, mounted above support frame, which is made of steel and powder coate
--5 pcs of floor filter and 2 pcs of air mouth filter.
--Upper light: 10 sets, 4*40w per set. Side lights: 8sets, 4*40w.
--Control box: imported components, overload, overheat, phase-lacking,phase-locking protection.
--Automatically stop when preset time is up.constant temperature spraying.
--Environmental filter: the equipment can be adopted M style activated carbon or drawer style activated carbon as optional
| Technical Specifications | GL4-CE |
| External size(m) | 7.0×5.3×3.5 |
| Internal size(m) | 6.9×3.9×2.7 |
| Door width(m) | 3.0 |
| Door height(m) | 2.66 |
| Air flow (m3/h) | 24000 |
| Inside no-load air speed(m/s) | 0.3-0.5 |
| Water Based Paint Device | As option |
| Customization | Available |
| Power (kw) | 18 |
| Vehical suited | Saloon car |
GuangLi Spray booth Show
1. More than 20 -year experience in Spray booth and car lift field .
2.Superb unique technology and Automatic production line.
3.Large order can be placed .
4.Advanced equipment and exquisite workmanship .
5.Durable and reliable .
6.Good pre-sales and after-sale s service .
1. Q: Are you Manufacturer or Trading company?
A: We are a professional manufacturer with our own export department.
2. Q: Where is your company located? How can I visit there?
A: Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3. Q: How about the quality of the products?
A: With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4. Q: Can we customize our product?
A: Yes,you can.Customized material and standard are acceptable. We can provide
different standards according to your market and favor.
5 . Q: What’s the MOQ for each items?
A: We accept one piece/set each time.
6 . Q: What’s the delivery tim e?
A: If the product you ordered is our standard configurations, it ’ s 7 workdays.
