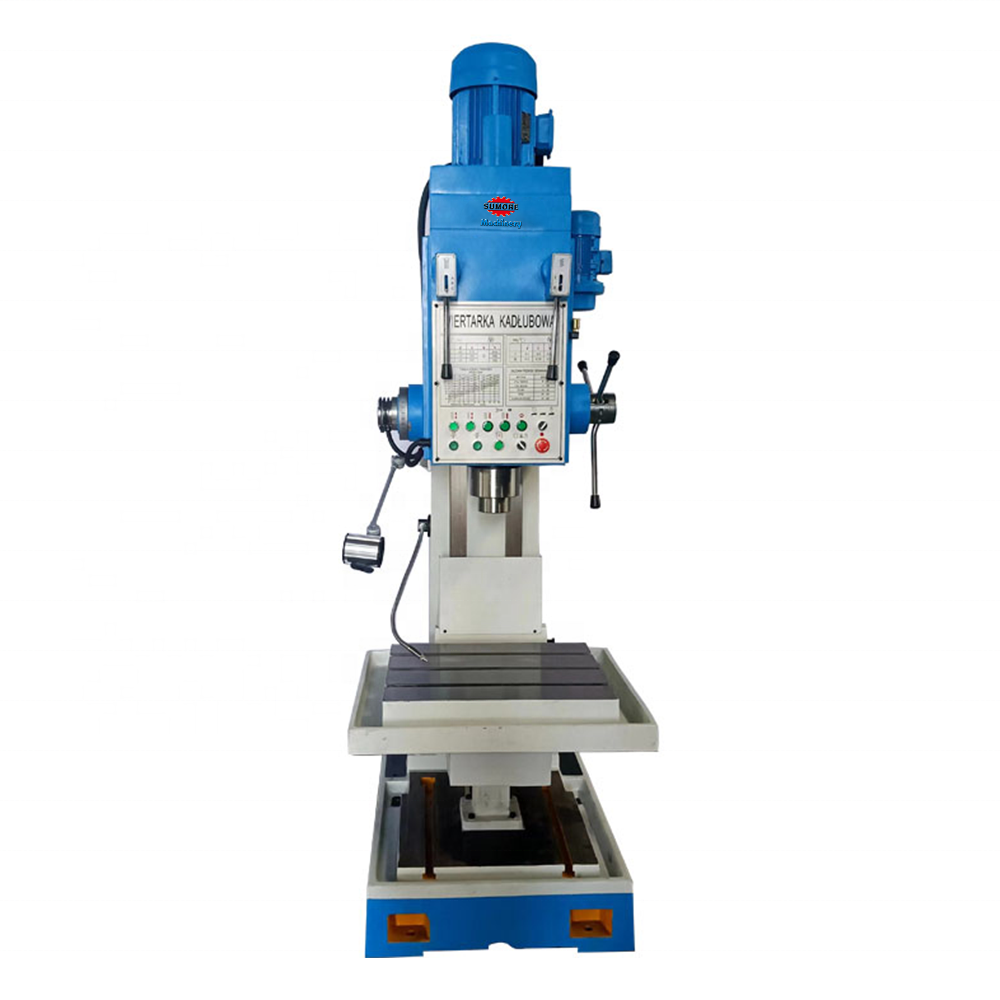

80mm Large Deep Hole Heavy Duty Floor Type Vertical Drilling Machine Z5180B Square Column Drilling Machine for Metal SP5180B

80mm Large Deep Hole Heavy Duty Floor Type Vertical Drilling Machine Z5180B Square Column Drilling Machine for Metal SP5180B

FOB Reference Price: Get Latest Price

≥1 Pieces

US $9050

≥2 Pieces

US $8680

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: Sumore Machinery

Model Number:: SP5180B

Voltage:: Customer's Requirement

Dimension(L*W*H):: 1197*980*2797mm

Power (kW):: 5.5

Weight (KG):: 2500 KG

Marketing Type:: Hot Product

Maximum borehole diameter:: 80mm

Main motor power:: 5.5kw

Feed range:: 0.11-0.78mmr

Conicity of main cone hole:: 6NO

Spindle speed:: 40-570r/min

Spindle stroke:: 250mm

Spindle box stroke (manual):: 250mm

Vertical travel of worktable:: 300mm

Table size:: 650*550mm

Outline dimension:: 1197*980*2797mm

Quick Details

type:: Pillar Drilling Machine

Max. Drilling Dia. (mm):: 80 mm

Range of Spindle Speed(r.p.m):: 40 - 570 r.p.m

Place of Origin:: Shanghai, China

Brand Name:: Sumore Machinery

Model Number:: SP5180B

Voltage:: Customer's Requirement

Dimension(L*W*H):: 1197*980*2797mm

Power (kW):: 5.5

Weight (KG):: 2500 KG

Marketing Type:: Hot Product

Maximum borehole diameter:: 80mm

Main motor power:: 5.5kw

Feed range:: 0.11-0.78mmr

Conicity of main cone hole:: 6NO

Spindle speed:: 40-570r/min

Spindle stroke:: 250mm

Spindle box stroke (manual):: 250mm

Vertical travel of worktable:: 300mm

Table size:: 650*550mm

Outline dimension:: 1197*980*2797mm

Our Other Vertical Drilling Machine:

SP5140B/Z5140B , SP5163A/Z5163A , SP5163B/Z5163B , SP5150B/Z5150B

Product Description

SP5180B Drill Press Drilling Machine 80mm Bench Vertical Drill Press Machine With Factory Price SUMORE

features:

1. Z5180B square column vertical drilling universal machine tool, which can be used for drilling, reaming, countersinking, countersunk drilling, boring and tapping.

2. The automatic reversal of spindle tapping and inching feed are very convenient for
blind holes and fixed depth holes.

3. The machine tool has high efficiency, good rigidity, high accuracy, low noise, wide speed
change range, centralized operation, novel appearance & convenient use & maintenance.

4. Multi axis machine can realize
simultaneous processing of multiple holes and greatly improve processing efficiency.

Specification

Main technical parameters	SP5180B
Maximum borehole diameter mm	80
Maximum Feed Resistance N of Main Shaft	30000
Maximum spindle torque N.m	800
Main motor power kw	5.5
Conicity of main cone hole NO	6
Spindle speed r.p.m	40-570（9级）
Feed per spindle revolution mm/rev	0.11-0.78（6级）
Spindle stroke mm	250
Spindle box stroke mm	250
Distance from spindle centerline to pillar mm	375
Longitudinal and transverse travel mm of worktable	无
Vertical travel mm of worktable	300
Maximum distance from end face of spindle to worktable mm	850
Table size mm	650*550
Machine tool weight kg	2500
Outline dimension mm	11979802797

More Details:

Hot Products

<<Lathe Machine>>

<<Milling Machine>>

<<CNC Machining Center>>

<<CNC Lathe Machine>>

Packing & Delivery

Package	1 set/polywood case (aluminum strips strengthen)
Minimum Order Quantity (MOQ)	1 sets
Full Container Loading Quantity (FCL)	36-60sets/20’GP (unitary; customerized packing available)
Delivery Time	25 calendar days after receiving of advance / full payment
