Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
LINGQIAO
-
Model Number:
-
ZB4-500
-
Place of Origin:
-
Guangxi, China
-
Power:
-
3KW, Electric
-
motor:
-
50MPa
-
Usage:
-
Oil
-
Product name:
-

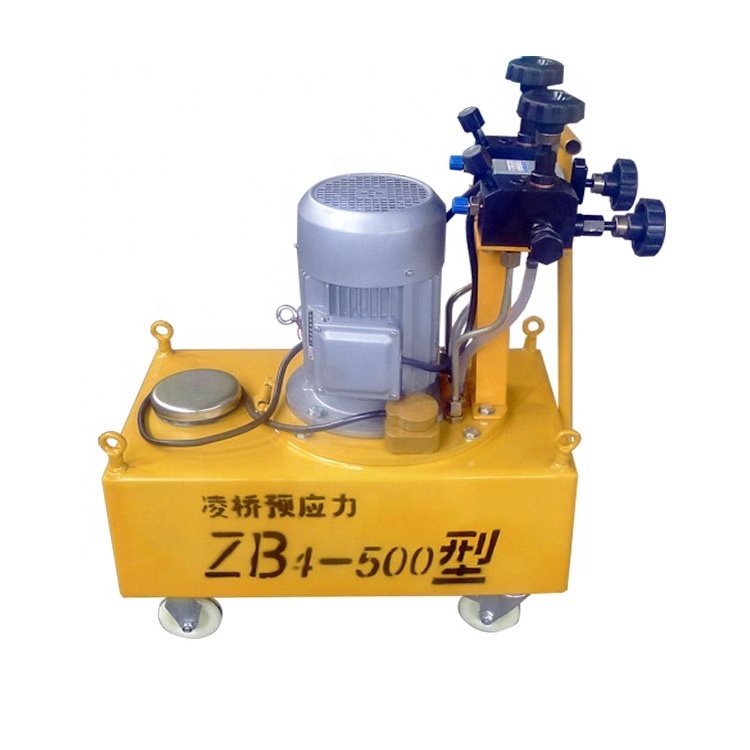

High Pressure Electric Oil Pump Hydraulic Price Oil Pump for Jack
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Axial Flow Pump
-
Material:
-
Standard material
-
Certificate:
-
ISO9001:2008
-
Color:
-
Customers' Requirement
-
Type:
-
Hydraulic
-
Rated pressure:
-
50~80MPa
Quick Details
-
Application:
-
Other, Commercial Buildings, Industrial Utilities
-
Pressure:
-
High Pressure
-
Voltage:
-
50MPa/60MPa
-
Warranty:
-
1 year
-
Brand Name:
-
LINGQIAO
-
Model Number:
-
ZB4-500
-
Place of Origin:
-
Guangxi, China
-
Power:
-
3KW, Electric
-
motor:
-
50MPa
-
Usage:
-
Oil
-
Product name:
-
High Pressure Electric Oil Pump Hydraulic Price Oil Pump for Jack
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Axial Flow Pump
-
Material:
-
Standard material
-
Certificate:
-
ISO9001:2008
-
Color:
-
Customers' Requirement
-
Type:
-
Hydraulic
-
Rated pressure:
-
50~80MPa
High Pressure Electric Oil Pump Hydraulic Price Oil Pump for Jack
Specifications of:
ZB serise electric oil pump consists of pump, control valve,cabinet,and internal pipes.P1 hydraulic system.
|
Type |
Nom. Pressure
MPa |
Nom. Flow
L/Min |
Power
KW |
Cylinder capacity
L |
Frequency
HZ |
Weight
K G |
Size
MM |
| ZB10-800H | 80 | 10x10 | 7.5 | 120 | 50 | 270 | 1090*590*1120 |
| ZB6-600 |
60 |
6x6 | 5.5 | 120 | 50 | 270 | 1090*590*1120 |
| ZB4-600H | 50 | 4x4 | 4 | 40 | 50 | 120 | 745*494*1052 |
| ZB4-500 | 50 | 2x2 | 3 | 40 | 50 | 130 | 745*494*1052 |
| ZB2-500 | 50 | 2x2 | 1.5 | 25 | 50 | 66 | 660*460*260 |
P1: Hydraulic System Chart
The device is a self-priming axial plunger High Pressure Electric Oil Pump Hydraulic Price Oil Pump for Jack . When motor drives axis9, leaned tray will push the plunger into plunger sleeve and return spring raises the plunger. The plunger repeats the operation to meet the function of in-taking and out-putting oil.
|
P2:Pump Structure
|
1 | Screw Plug |
| 2 | Distributing | |
| 3 | Nozzle | |
| 4 | Lower Part | |
| 5 | Plunger Sleeve | |
| 6 | Plunger | |
| 7 | Return Spring | |
| 8 | Upper Part | |
| 9 | Axis | |
| 10 | Out-Put Port |
The left and right valve bodies which are the same structure constitute the High Pressure Electric Oil Pump Hydraulic Price Oil Pump for Jack . Each valve body consists of the throttle valve, unload valve, one-way valve, pressure meter, relief valve, intake nozzle,not put nozzle and oil-return nozzle. (P3)
The throttle valve is a tunable wedge valve used to adjust the input flow of the cylinder. The unload valve is a kind of tunable globe valve(open— unload, close — intake oil).
The one-way valve of ball type stabilizes the pressure of wording system. The relief valve is a tunable overflow valve used to adjust the system pressure of 50MPa.
|
P3: Control Valve Structure
|
1 | Unload Valve Socket Assembly |
| 2 | Throttle Valve Socket Assembly | |
| 3 | One-Way Valve Assembly | |
| 4 | Steel Ball | |
| 5 | Connector Of Pressure Meter | |
| 6 | Output Nozle | |
| 7 | Control Valve Body 1 | |
| 8 | Intake Nozzle | |
| 9 | Control Valve Body 2 | |
| 10 | Relief Valve Assembly | |
| 11 | Oil-Return Nozzle |
Q: What kind of manometer do we have?
A: We have the standard manometer and shock-proof manometer.
Q: Is the
High Pressure Electric Oil Pump Hydraulic Price Oil Pump for Jack
equipped with the oil pipe?
A: It often is no.but if need, it will be kindly provided.kindly know, the jack often complete with the oil pipe.
Q :What is your term of delivery?
A: We accept EXW, FOB Shenzhen, FOB Guangzhou, CFR, CIF, DDU.Kindly choose the one which is the most convenient or cost effective for you. The DDU is often delivery by express.
Q: What about the lead time for the mass production?
A: We often arrange our product within 7 working days. But h onestly, it depends on the order quantity and the season you place the order.
· One set in one wooden box.
