Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Forto Motor
-
Model Number:
-
FT-22PGM180
-
Torque:
-
1-200Kgf.Cm
-
Gears Style:
-
Metal gear
-
Certification:
-
CE/ROHS/CCC
-
Shaft type:
-
D-cut Round/ OEM shaft
-
Rotating Direction:
-
CW/CCW
-
gearbox size:
-
22mm diameter
-
Gearbox Case Material:
-
Zinc Die Cast
-
Shaft diameter:
-
4mm, D shaft , customization available
-
Operating Temperture:
-
-40~ +60 degree
Quick Details
-
Speed(RPM):
-
planetary dc gear motor 1-2000rpm ,custom
-
Continuous Current(A):
-
custom, 0.1-10A ,customization available
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Forto Motor
-
Model Number:
-
FT-22PGM180
-
Torque:
-
1-200Kgf.Cm
-
Gears Style:
-
Metal gear
-
Certification:
-
CE/ROHS/CCC
-
Shaft type:
-
D-cut Round/ OEM shaft
-
Rotating Direction:
-
CW/CCW
-
gearbox size:
-
22mm diameter
-
Gearbox Case Material:
-
Zinc Die Cast
-
Shaft diameter:
-
4mm, D shaft , customization available
-
Operating Temperture:
-
-40~ +60 degree

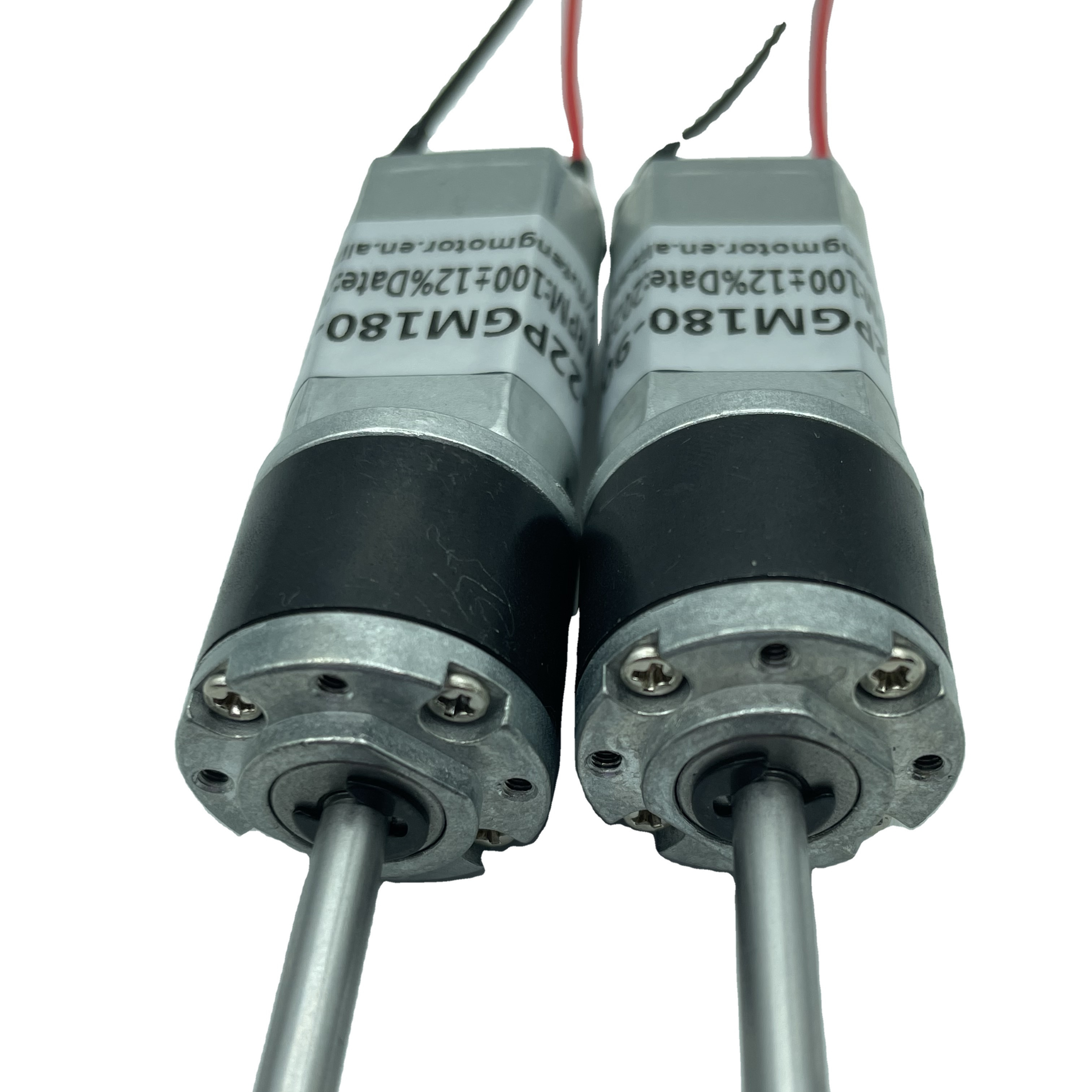

mini DC planetary gearbox gear motor 6v for DIY toy
|
Gear grade |
1 |
2 |
3 |
4 |
|
3.5, 4.8 |
12, 17 , 23 |
43, 58 , 79 , 107 |
150, 204 , 276 , 375 , 509 |
|
|
Gearbox length ( mm ) |
15.4 |
20 |
24.6 |
29.2 |
|
Rated torque ( kg.cm ) |
2 |
3 |
4 |
5 |
|
Stall torque( kg.cm ) |
4 |
6 |
8 |
10 |
|
efficiency (%) |
90% |
81% |
73% |
65% |
