Quick Details
-
Dimension(L*W*H):
-
3000*1620*1600mm
-
Weight:
-
800 KG
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KOTEN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3000*1620*1600mm
-
Weight:
-
800 KG
Product Description

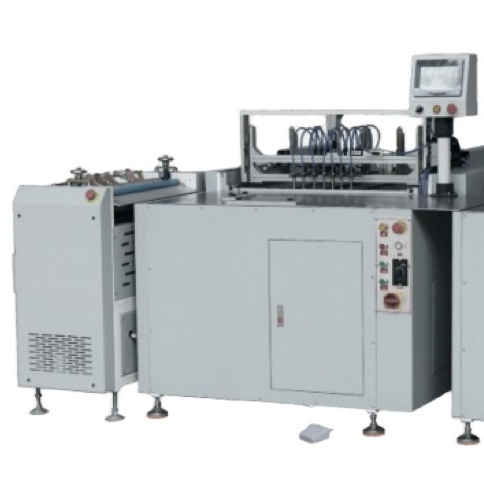

This machine is appiled in covering and pressing various notebooks, photo books (photo album), folders, certificates, hardcover books.
This process is finished easily at twice on both sides at the same time by one operator. It is the good partner of post-press,especially the digital post-press.
This process is finished easily at twice on both sides at the same time by one operator. It is the good partner of post-press,especially the digital post-press.
Features
1.
Automatic and pneumatic feeder position by pressing the foot switch.
2.
Adopting PLC operating system.
3.
Replace products, fast adjustment speed, control the thickness of the cardboard automatically.
4.
Use hot glue (animal glue / Jelly glue), cold glue.
5.
Adjust the size by rotating the handle wheel.
Parameters
|
Model
|
800-SC
|
900-SC
|
|
Power Supply
|
380V/50HZ
|
380V/50HZ
|
|
Mainframe Power
|
6.7KW
|
6.7KW
|
|
WorkSpeed
|
5-8PCS/minute
|
5-8PCS/minute
|
|
Case Size(max)
|
750 x450mm
|
850 x450mm
|
|
CaseSize(min)
|
140 x 140mm
|
140 x 140mm
|
|
Machine Dimension
(L*W*H)
|
3000 x 1620 x 1600mm
|
3200 x 1620 x 1600mm
|
|
PaperThickness
|
80-175g
|
80-175g
|
|
Machine Weight
|
800kg
|
1000kg
|
Application
