Quick Details
Quick Details
-
Place of Origin:
-
Pulau Pinang, Malaysia
-
Brand Name:
-
ALGATEC
-
Certification:
-
ISO 9001:2015, CE, RoHS
Product Description

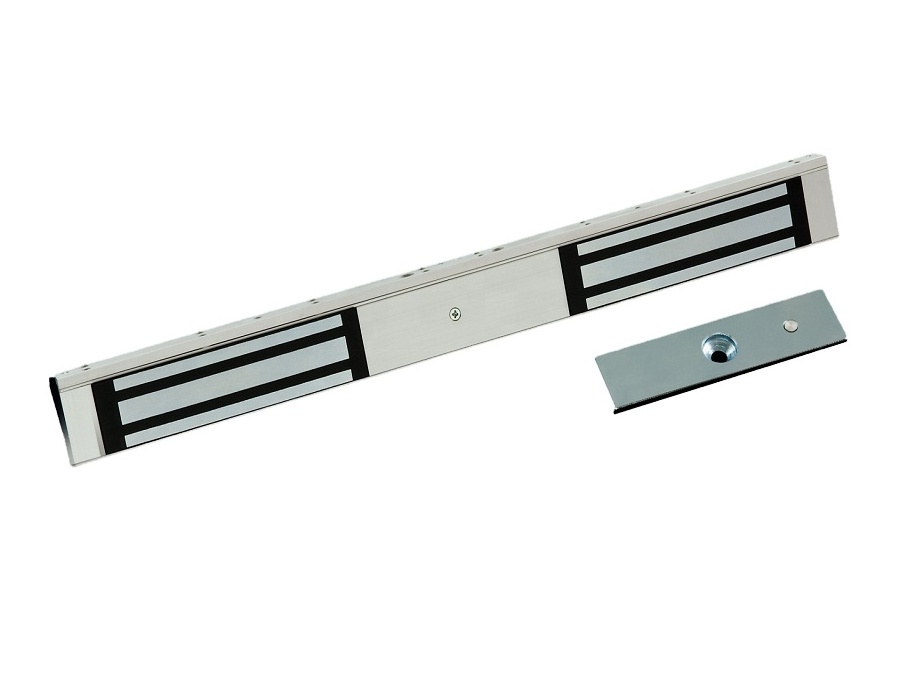

- 300lbs Double Series Surface EM locks were designed to meet fire/life safety applications by providing an auxiliary locking mechanism that has no moving parts to bind or wear out for trouble free operation.
- Fail Safe,Robust, Durable & Efficient.
- Zero Residual Magnetism.
- Dual Voltage Input, 12Vdc or 24Vdc selectable.
- Ease of installation with low maintenance & low energy consumption.
- Operate quietly & care free .
- Versatile mounting brackets: U1-135, ZL-136, LS-136 are suitable for 300lbs electromagnetic lock.
Specification
|
Item
|
Details
|
|
Place of Origin
|
Malaysia
|
|
Brand Name
|
ALGATEC
|
|
Model Number
|
UL136-D
|
|
Certification
|
ISO 9001:2015, CE Certified, RoHS Compliant, TUV Performance Test, Fire Resistance Performance Test
|
|
Product Type
|
Double Series Electromagnetic Lock
|
|
Warranty
|
5 Years
|
|
Application
|
Double Series EM Lock is for access control system which serve in diverse applications such as corporate building, retail, industrial, hospital, transportation, finance institution and military facility. It is a surface mounted EM Lock that ideal for double leaf swinging wooden door, glass door, aluminium door frame and etc.
|
|
Features
|
UL136-D
|
|
Holding Force
|
Up to 300lbs x 2
|
|
Magnet Size
|
420 X 35 X 23 mm
|
|
Armature Size
|
130 X 33 X 11 mm
|
|
Current Drain
|
300mA±10%/12Vdc, 150mA±10%/24Vdc
|
|
Operating Temperature
|
(-10 to 55)°C, (14 to 131)°F
|
|
Housing Finishing
|
Anodized Aluminium
|
|
Est. Weight
|
2.3kg
|
Suitable Mounting Brackets Selections
U1-135
ZL-136
LS-136
