- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
AP-60
-
Work Time (h):
-
24H
-
Max PV Power:
-
3400W
-
Max PV Voltage:
-
150Vdc
-
Certificate:
-
CE FCC
-
Warranty:
-
1 year
-
Display:
-
LCD Screen
-
Color:
-
Gray
-
Product name:
-

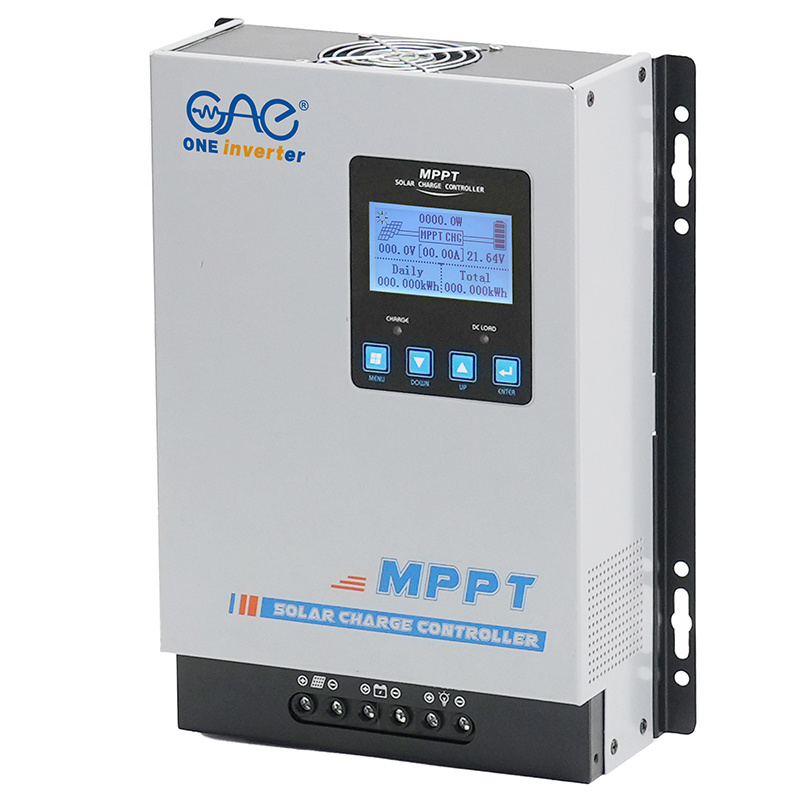

MPPT Solar Charge Controller
-
Charge mode:
-
MPPT Maximum Power Point Tracking
-
Battery type:
-
Lead Acid, lithium battery, lifepo4
-
System voltage:
-
12V/24V/36v/48v Auto
-
Function:
-
Solar Charging
-
Keywords:
-
Solar Charger Controller Mppt
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
AP-60
-
Work Time (h):
-
24H
-
Max PV Power:
-
3400W
-
Max PV Voltage:
-
150Vdc
-
Certificate:
-
CE FCC
-
Warranty:
-
1 year
-
Display:
-
LCD Screen
-
Color:
-
Gray
-
Product name:
-
MPPT Solar Charge Controller
-
Charge mode:
-
MPPT Maximum Power Point Tracking
-
Battery type:
-
Lead Acid, lithium battery, lifepo4
-
System voltage:
-
12V/24V/36v/48v Auto
-
Function:
-
Solar Charging
-
Keywords:
-
Solar Charger Controller Mppt
Product Description
Specification
|
Model
|
|
AP-50
|
AP-60
|
AP-80
|
AP-100
|
AP-120
|
||||||
|
Rated Current
|
|
50A
|
60A
|
80A
|
100A
|
120A
|
||||||
|
Maximum Charging
Current
|
|
52A
|
62A
|
82A
|
102A
|
122A
|
||||||
|
Mppt Range Operating Voltage
|
|
|
|
|
|
|
||||||
|
12VDC
|
|
18VDC~80VDC
|
|
|
|
|
||||||
|
24VDC
|
|
30VDC~100VDC
|
|
|
|
|
||||||
|
36VDC
|
|
40VDC~100VDC
|
|
|
|
|
||||||
|
48VDC
|
|
60VDC~150VDC
|
|
|
|
|
||||||
|
96VDC
|
|
Not Available
|
120VDC~200VDC
|
|
|
|
||||||
|
Maximum PV Array Power
|
|
|
|
|
|
|
||||||
|
12VDC
|
|
700W
|
900W
|
1140W
|
1400W
|
1800W
|
||||||
|
24VDC
|
|
1400W
|
1700W
|
2260W
|
2800W
|
3400W
|
||||||
|
36VDC
|
|
2100W
|
2700W
|
3420W
|
4200W
|
5400W
|
||||||
|
48VDC
|
|
2800W
|
3400W
|
4540W
|
5600W
|
6800W
|
||||||
|
96VDC
|
|
Not Available
|
7200W
|
9120W
|
11200W
|
14400W
|
||||||
|
Battery
|
|
|
|
|
|
|
||||||
|
Supportable Battery Type
|
|
Gel/SLA/AGM/Water/Lithium(lifepo4) battery
|
|
|
|
|
||||||
|
Charging Mode
|
|
Three Stages: Constand Current(mppt),equalizing Charge, Floating Charge
|
|
|
|
|
||||||
|
Maximum Efficiency
|
|
≥99%
|
|
|
|
|
||||||
|
Communication Portal
|
|
|
|
|
|
|
||||||
|
Communication
|
|
RS485, available for wifi box & external control screen
|
|
|
|
|
||||||
|
Packing Details
|
|
|
|
|
|
|
||||||
|
Dimension,
D*W*H(MM)
|
|
360*260*190
|
|
|
570*360*200
|
|
||||||
|
G.W.(KGS)
|
|
4.5KGS
|
|
|
13KGS
|
|
||||||
|
*Product Specifications Are Subject To Change Without Further Notice
|
|
|
|
|
|
|
||||||
