Quick Details
-
Brand Name:
-
PENGTU
-
Model Number:
-
PFDD15-24S48
-
Output Frequency:
-
50KHZ
-
Size:
-
150*127*63MM
-
Weight:
-
1.2KG
-
OEM:
-
Yes
-
Display:
-
NO
-
Application:
-
Boats, Cars, Trucks, Buses, Loaders, Logging Vehicles, LED
-
Color:
-
Silver
-
Rated power:
-
600W
-
Waterproof:
-
IP67
Quick Details
-
Output Current:
-
30A
-
Customized support:
-
specifications
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
PENGTU
-
Model Number:
-
PFDD15-24S48
-
Output Frequency:
-
50KHZ
-
Size:
-
150*127*63MM
-
Weight:
-
1.2KG
-
OEM:
-
Yes
-
Display:
-
NO
-
Application:
-
Boats, Cars, Trucks, Buses, Loaders, Logging Vehicles, LED
-
Color:
-
Silver
-
Rated power:
-
600W
-
Waterproof:
-
IP67
Specification
* Input voltage range 18V to 40V
* Stable output voltage 48V
* Maximum output current 15A
* 100% burn-in test
* Efficiency up to 95%
* IP 65 Waterproof ( excluding terminals, LED lights ) , internal glue sealing , anti-vibration, dust-proof
* Self-cooling , easy installation
* 2 years warranty
* Over current protection: when the output current is higher than the set value, the output voltage gradually decreases until there is no output voltage.
* Over temperature protection: When the case temperature is ≥ 85 ℃, the power converter stops working, and there is no voltage output.
* Low voltage protection: When the input voltage is lower than the set value, the output voltage gradually decreases until there is no output voltage.
* Reference standards: EN 61000-6-3 : 2007/ A 1 : 2011/ AC : 2012 EN 55014-1 : 2006/ A 2 : 2011 EN 60950-1 : 2006/ AC : 2011
* Stable output voltage 48V
* Maximum output current 15A
* 100% burn-in test
* Efficiency up to 95%
* IP 65 Waterproof ( excluding terminals, LED lights ) , internal glue sealing , anti-vibration, dust-proof
* Self-cooling , easy installation
* 2 years warranty
* Over current protection: when the output current is higher than the set value, the output voltage gradually decreases until there is no output voltage.
* Over temperature protection: When the case temperature is ≥ 85 ℃, the power converter stops working, and there is no voltage output.
* Low voltage protection: When the input voltage is lower than the set value, the output voltage gradually decreases until there is no output voltage.
* Reference standards: EN 61000-6-3 : 2007/ A 1 : 2011/ AC : 2012 EN 55014-1 : 2006/ A 2 : 2011 EN 60950-1 : 2006/ AC : 2011

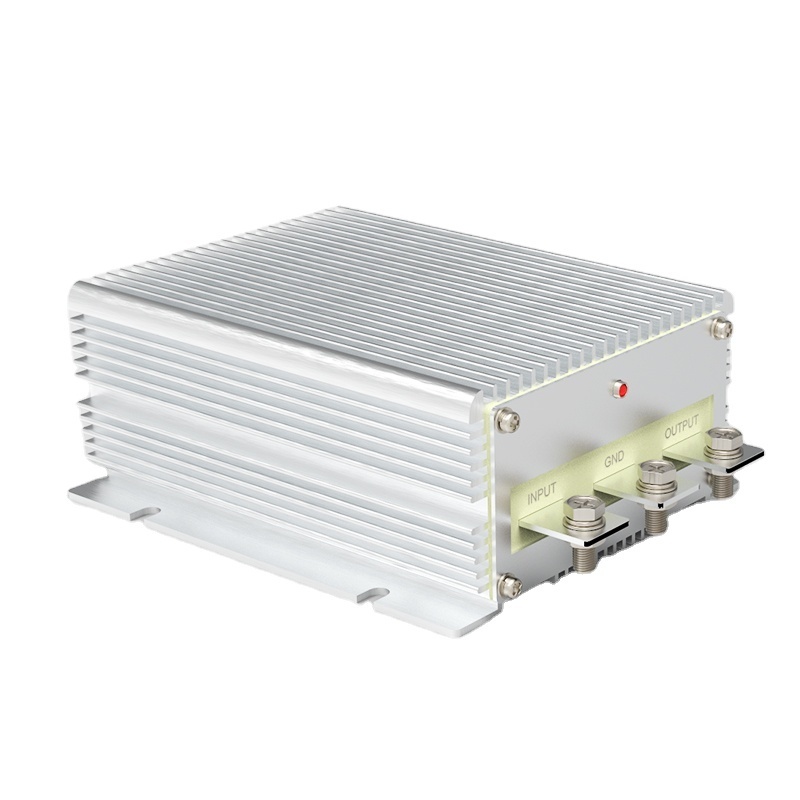

Wiring Definition
OUTPUT + : Load positive
GND : battery negative / load negative
INPUT + : battery positive
OUTPUT + : Load positive
GND : battery negative / load negative
INPUT + : battery positive
|
Product Number
|
PFDD20-24S48
|
|
Efficiency
|
up to 95%
|
|
Input Voltage
|
18-40V DC
|
|
Output Voltage
|
48V DC
|
|
Maximum Output Current
|
20A
|
|
Ripple
|
500mVp ( measured by 20M oscilloscope)
|
|
Line Regulation
|
± 1 %
|
|
Load Regulation
|
± 1 %
|
|
Voltage Accuracy
|
± 2 %
|
|
Waterproof Level
|
IP 6 5 (except output ports and indicator light)
|
|
Dimension
|
150* 127*63mm
|
|
Net Weight
|
1.2kg
|
|
Operating Temperature
|
-40 ~ 55 ° C
|
|
Warranty
|
1 year
|
Over current protection:
when the output current is higher than the set value, the output voltage gradually decreases until there is no output voltage.
Over temperature protection:
When the case temperature is ≥ 85 ℃, the power converter stops working, and there is no voltage output.
Low voltage protection:
When the input voltage is lower than the set value, the output voltage gradually decreases until there is no output voltage.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(20.00%),Eastern Europe(15.00%),Western Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Mid East(6.00%),Eastern Asia(5.00%),South Asia(5.00%),South America(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ACDC Converter,DC DC Converter,EV on board charger,battery charger,Power Supply
4. why should you buy from us not from other suppliers?
We are a manufacturer specializing in power product development, design, production, sales and service company. We has independent research and development of AC/DC, DC/DC switching power supply and EV on board charger. Various products are widely used.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Korean
We are based in Jiangsu, China, start from 2007,sell to North America(20.00%),Eastern Europe(15.00%),Western Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Mid East(6.00%),Eastern Asia(5.00%),South Asia(5.00%),South America(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ACDC Converter,DC DC Converter,EV on board charger,battery charger,Power Supply
4. why should you buy from us not from other suppliers?
We are a manufacturer specializing in power product development, design, production, sales and service company. We has independent research and development of AC/DC, DC/DC switching power supply and EV on board charger. Various products are widely used.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Korean
