Quick Details
-
Power:
-
2.2kw
-
Min. Lifting Height:
-
3.5M
-
Table Size:
-
CUSTOMIZED SIZE
-
Overall Dimensions:
-
Customized
-
Weight:
-
50 kg
-
After-sales Service Provided:
-
Online support
-
Powder Supply:
-
380V/50HZ
-
Motor Power:
-
2.2KW/AC
-
Min Height A:
-
350mm
-
Platform Size:
-
1200mm*2400mm
-
Load Capacity:
-
3000kg
-
Lifting speed:
-
3-5m/min
-
Min Height(Pit depth):
-
350mm
-
Drive System:
-
Hydraulic driven
-
Certification:
-
CE ISO9001
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FORU
-
Power:
-
2.2kw
-
Min. Lifting Height:
-
3.5M
-
Table Size:
-
CUSTOMIZED SIZE
-
Overall Dimensions:
-
Customized
-
Weight:
-
50 kg
-
After-sales Service Provided:
-
Online support
-
Powder Supply:
-
380V/50HZ
-
Motor Power:
-
2.2KW/AC
-
Min Height A:
-
350mm
-
Platform Size:
-
1200mm*2400mm
-
Load Capacity:
-
3000kg
-
Lifting speed:
-
3-5m/min
-
Min Height(Pit depth):
-
350mm
-
Drive System:
-
Hydraulic driven
-
Certification:
-
CE ISO9001

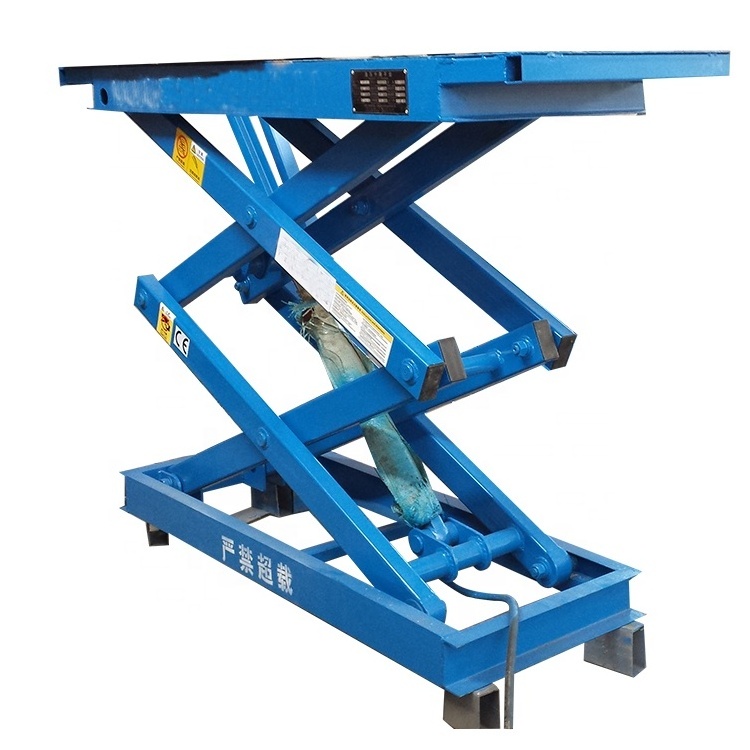

6-12m hot sale fixed scissor lift platform for wheelchair
Cargo lift is used for transfer cargo between different floors. Self-height is about 120-300mm. This platform can install on the ground directly or make one pit. Hydraulic drive, steady working and simple operation.
Cargo lift provides fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings. They can be installed for through-floor, interior or exterior applications. The principle components of the machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.
|
ITEMS |
PARAMETERS |
|
Power Supply |
380 V / 50HZ |
|
Motor Power |
2.2 KW/AC |
|
Min Height A |
350 mm |
|
Max Height B |
800 mm |
|
Platform Size |
1200 mm* 2400 mm |
|
Load Capacity |
3000 kg |
|
Lifting Speed |
3-5 m/min |
|
Min Height(Pit depth) |
350 mm |
|
Running Mode |
Jogging control |
|
Drive System |
Hydraulic driven |
|
Installation Mode |
No pit |
|
Extron Control Device |
The panel boxes are placed on the neighboring wall of the above/below floor. |
Installed in the pit or the ground floor to convey the goods from one working level to another.
Indoor or outdoor is ok. With a heavy duty, safe and reliable.
The lift could be controlled at any floor. Control panels are available at the designated floors and one is on the lift platforms
