Quick Details
-
Load Capacity:
-
80KG/800N
-
Color:
-
Black, White, Grey
-
Input voltage:
-
110V/230VAC
-
Speed(full load):
-
35mm/s
-
Overload Protection:
-
built-in
-
Tube Meterial:
-
Power Painted Steel Tube
-
Column Segments:
-
3 segments column
-
Table Board Dimension:
-
Recommend ( 1400~1800 )*800*25
-
Product Name:
-
linear actuator for adjustable standing desk
Quick Details
-
Material:
-
Metal
-
Place of Origin:
-
Zhejiang, China
-
Lift Range From:
-
560mm-1210mm
-
Load Capacity:
-
80KG/800N
-
Color:
-
Black, White, Grey
-
Input voltage:
-
110V/230VAC
-
Speed(full load):
-
35mm/s
-
Overload Protection:
-
built-in
-
Tube Meterial:
-
Power Painted Steel Tube
-
Column Segments:
-
3 segments column
-
Table Board Dimension:
-
Recommend ( 1400~1800 )*800*25
-
Product Name:
-
linear actuator for adjustable standing desk
electric height adjustable desk

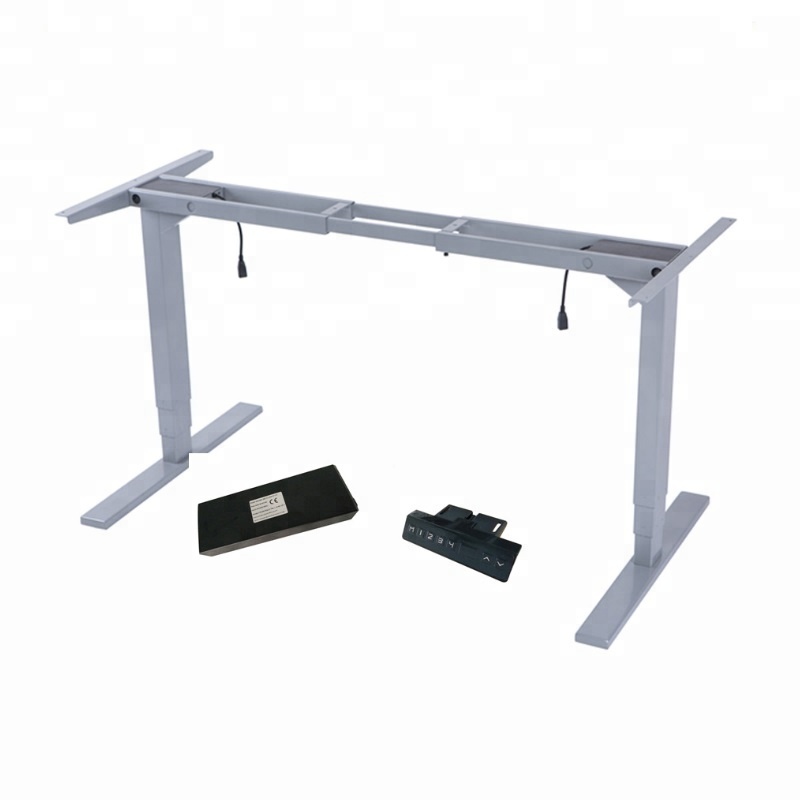

The TLA height adjustable desk frames are specifically designed for use in ergonomic desks and work tables. It provides you with full movability: Create your furniture design in classic, elegant or high-tech style! Using TLA lifting columns with compatible Control Box and Control Switch, work surfaces can be controlled quietly and smoothly with synchronous movement.
Our products offer customers the solutions they require to satisfy their working environment project requirements. The frame is available in 3 classic colour: Black, White and Grey. Thanks for the flexible design, now you can also adjust the width of the desk frame to fit for different size of tabletops. We also provide customisized service to our clients.
Specification:
| Product Name |
Table lift |
| Clours |
Black, White, Grey |
| Input voltage |
110V/230VAC |
| Column Segments |
3 segments column |
| Lowest Position |
560mm |
| Highest Position | 1210mm |
| Load Capacity | 80kg/800N |
| Speed(full load) | 35mm/s |
| Table Board Dimension | Recommend ( 1400~1800 )*800*25 |
| Overload Protection | Built-in |
| Duty Cycle | 10%, max. 2min. continuous use |
| Tube Meterial | Power Painted Steel Tube |
| Operation Temperature | +5℃~+ 40℃ |
| Protection Class | IP20 |
| Hand control | Hand control with digital display |
Drawing:
