High efficiency 5BB PV cell
Uniform color
Anti-PID
Germany standard Cell
Full test
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25years, 25 Years Output Power Guarantee
-
Brand Name:
-
Rosen/OEM
-
Model Number:
-
RS300M-60
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1640*992*40mm
-

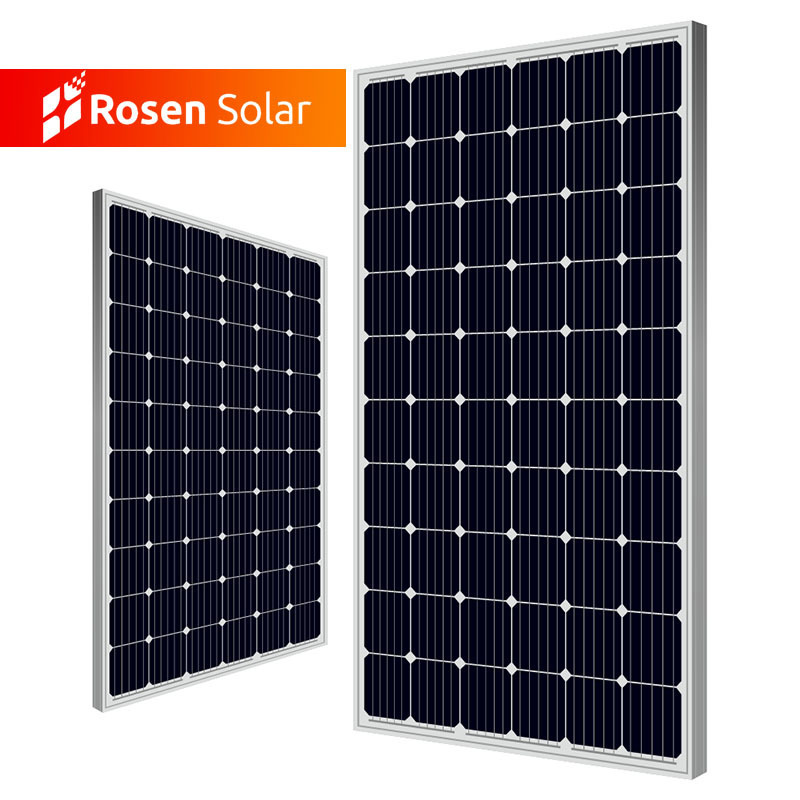

Product name:
-
Mono 300watt Solar Panels
-
Cable:
-
4mm2/6mm2
-
Glass:
-
3.2mm Tempered Low Iron
-
Solar cell:
-
5BB Mono 156*156
-
Dimension:
-
1640*992*40mm
-
Junction Box:
-
IP68
-
TPT back sheet:
-
Black/White Backsheet
-
Color:
-
Blue Ad Black
-
Efficiency:
-
15-18%
-
Certificate:
-
CE/TUV/IEC/ISO9000
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
PERC, Standard
-
Panel Efficiency:
-
High efficiency
-
Warranty:
-
25years, 25 Years Output Power Guarantee
-
Brand Name:
-
Rosen/OEM
-
Model Number:
-
RS300M-60
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1640*992*40mm
-
Product name:
-
Mono 300watt Solar Panels
-
Cable:
-
4mm2/6mm2
-
Glass:
-
3.2mm Tempered Low Iron
-
Solar cell:
-
5BB Mono 156*156
-
Dimension:
-
1640*992*40mm
-
Junction Box:
-
IP68
-
TPT back sheet:
-
Black/White Backsheet
-
Color:
-
Blue Ad Black
-
Efficiency:
-
15-18%
-
Certificate:
-
CE/TUV/IEC/ISO9000
Panels Description
Technical Specification Data
|
Model
|
RS275M-60
|
RS280M-60
|
RS285M-60
|
RS290M-60
|
RS300M-60
|
||||
|
Rated Maximum Power at STC
|
275W
|
280W
|
285W
|
290W
|
300W
|
||||
|
Open Circuit Voltage(Voc/V)
|
38.86
|
39.05
|
39.25
|
39.46
|
39.5
|
||||
|
Maximum Power Voltage(Vmp/V)
|
31.51
|
31.86
|
31.85
|
32.07
|
32.2
|
||||
|
Short Circuit Current(Isc/A)
|
9.27
|
9.36
|
9.45
|
9.56
|
9.84
|
||||
|
Maximum Power Current(Imp/A)
|
8.72
|
8.84
|
8.97
|
9.11
|
9.33
|
||||
|
Module Efficiency
|
16.8%
|
17.2%
|
17.4%
|
17.7%
|
18.3%
|
||||
|
Standard Test Condition(STC)
|
Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5
|
|
|
|
|
||||
Detailed Images
Solar Cells
Junction box
Conventional standalone edition and engineering custom edition
Quality diode ensures module running safety
IP67 protection level
Heat dissipation
Long service life
Glass
Antireflective glass
Translucency of normal luminance is increased 2%
Module efficiency is increased 2%
Self-clean function
Service life 25 years
Frame
Stock-size
Silvery and black
Thickness 30/35/40/50mm
Stress test
Packing & Delivery
Packing Details : Pallets, 2pcs per carton or wooden box
Delivery Details : 5-10days
1. Lamination
2. Production Line
3. Assembling
4. Warehouse
5. Loading
6. Delivery
|
Container(60cells)
|
20GP
|
40GP
|
40HQ
|
|
Pcs/Pallet
|
30
|
30
|
30
|
|
Pallets/Container
|
14
|
28
|
28
|
|
Pcs/Container
|
400
|
840
|
924
|
|
Container(72cells)
|
20GP
|
40GP
|
40HQ
|
|
Pcs/Pallet
|
27
|
27
|
27
|
|
Pallets/Container
|
10
|
24
|
24
|
|
Pcs/Container
|
270
|
648
|
696
|
