Quick Details
-
Model Number:
-
PE100 PE80
-
Specification:
-
200mm 250mm or 8 inch 10 inch
-
Length:
-
5.8m or 11.8 meter/piece
-
Thickness:
-
7.7mm-22.7mm
-
Standard:
-
ISO4427,AS/NZS4130
-
Product name:
-
SDR21 HDPE pipe 200mm 250mm dredge pipeline with floaters
-
Color:
-
Black with blue stripe line or as customized
-
Application:
-
Dredging mud slurry and sand
-
Feature:
-
Light weight, High flexibility, High UV resistance, Non-toxic
-
Connection:
-
Butt fusion and socket fusion joint
-
Working pressure:
-
0.6Mpa PN6 SDR26
-
Packing:
-
20'GP or 40'HQ Container
-
OEM:
-
Yes
-
Lifespan:
-
50yrs
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
OEM
-
Model Number:
-
PE100 PE80
-
Specification:
-
200mm 250mm or 8 inch 10 inch
-
Length:
-
5.8m or 11.8 meter/piece
-
Thickness:
-
7.7mm-22.7mm
-
Standard:
-
ISO4427,AS/NZS4130
-
Product name:
-
SDR21 HDPE pipe 200mm 250mm dredge pipeline with floaters
-
Color:
-
Black with blue stripe line or as customized
-
Application:
-
Dredging mud slurry and sand
-
Feature:
-
Light weight, High flexibility, High UV resistance, Non-toxic
-
Connection:
-
Butt fusion and socket fusion joint
-
Working pressure:
-
0.6Mpa PN6 SDR26
-
Packing:
-
20'GP or 40'HQ Container
-
OEM:
-
Yes
-
Lifespan:
-
50yrs

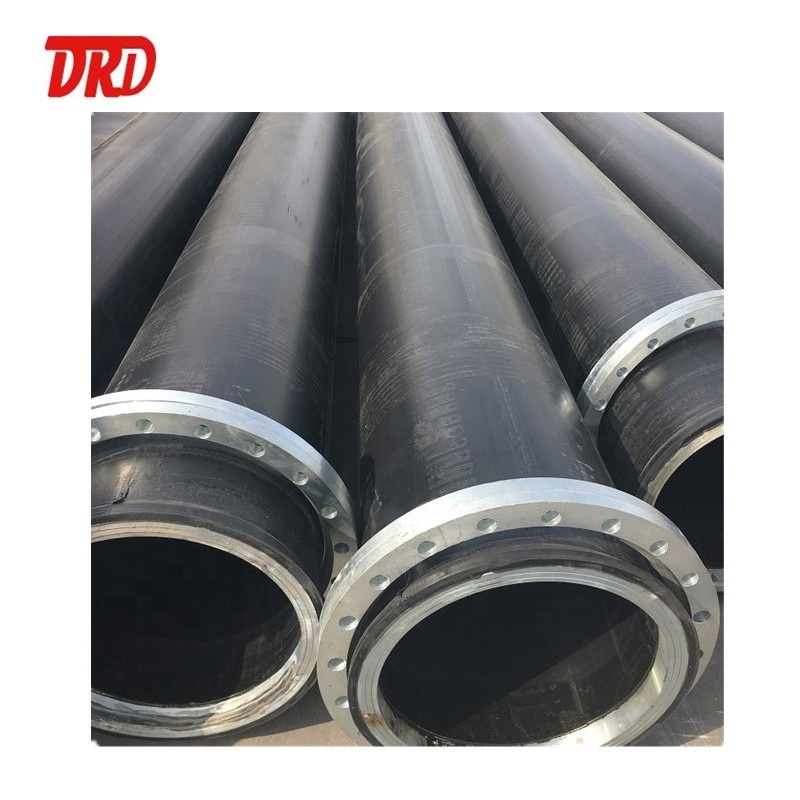

HDPE Dredge Pipes HDPE Pipes with Flange for Dredging
Welcome to our Tianjin Dingrunda Group Co., Ltd Alishop!!!
You can enquiry with product diameter, working pressure, quantity ect. Price will be given accordingly.
Working pressure expressive methord: MPa, PN, SDR.
Diameter: 20mm-1600mm
Standard: ISO4427, AS/NZS4130, DIN8074, GB/T13663-2000
Materials: PE100, PE80
Color: Black with blue, green, orange, yellow, red line, or as client's requirement.
Fittings offered: Elbow, Tee, Reducer, Coupler, End cap, Stub end, Flange, Cross and all.
SDR21 HDPE pipe 200mm 250mm dredge pipeline with floaters
Physical properties index:
|
No. |
Item |
Requirements |
|
|
1 |
Percentage of breaking-elongation,% |
≥350 |
|
|
2 |
Longitudinal reversion(110℃),% |
≤3 |
|
|
3 |
Oxidation induction time (200℃)min |
≥20 |
|
|
4 |
Weather resistance 1. (After the pipe has accepted the aging energy which equal to or more than 3.5GJ/m2) |
80℃ static hydraulic strength (165h) |
No break, no leakage. |
|
Percentage of breaking-elongation,% |
≥350 |
||
|
Oxidation induction time (200℃)min |
≥10 |
||
|
1. Only suitable for pipe in blue color. |
|||
|
Application field: Drinking water supply pipe for urban and rural area, liquid transmission pipe in chemical, chemical fiber, food, forestry and metallurgy industry, waste water drainage pipe, mining slurry transmission pipe for mining field. |
|||
Technical data sheet:
|
No |
Items |
HDPE Pipe |
|
1 |
Molecular |
≥300 000 |
|
2 |
Density |
0.960 g/cm3 |
|
3 |
Tensile breaking strength |
≥28 Mpa |
|
4 |
Longitudinal contraction rate of return |
≤3% |
|
5 |
Breaking elongation |
≥500% |
|
6 |
Resistant to corrosion |
good |
|
7 |
Tensile strength |
≥28Mpa |
|
8 |
Static hydraulic strength |
1)20℃,cycle stress 12.4Mpa,100h,no break,no leakage |
|
2)80℃,cycle stress5.5Mpa,165h,no break,no leakage |
||
|
3)80℃,cycle stress5.0Mpa,1000h,no break,no leakage |
||
|
9 |
MFR(190℃,5kg,)g/10min |
≤25% |
|
10 |
Oxidation induction time (200℃)min |
≥20 |
1. Nontoxic:
HDPE pipe material is nontoxic and tastelee. It belongs to green building materials, never scalling, which can effectively improve the water quality.
2. Corrosion resistance:
High resistance to attack from various types of chemicals. No electrochemical corrosion.
3. No Leakage:
HDPE pipe is connected in the ways of butt fusion, socket fusion and electrofusion and the strength of joint point is higher than tube itself.
4. Higher flow capacity:
The smooth inner wall is easy for pipeline transportation. Under the same condition, delivery capacity can be increased by at least 30%.
5. Convenient for construction and installation:
HDPE pipe could be snstalled in a variety of trenchless ways, so it is very convenent for construction and installation.
6. Lower system and maintenance costs:
HDPE pipe is not only convenient to transport and install, but also reduce the worker's Labor intensity and improve work efficiency.
7. Longevity of working life:
More than 50 years under pressure use.
8. HDPE pipe is recycled and Environment -friendly.
SDR21 HDPE pipe 200mm 250mm dredge pipeline with floaters
Packing: 5.8 mters/pc in 20'GP or 11.8 meters/pc in 40'HQ.
Delivery: Within 15 days after receiving the deposit.
1. Urban tap water pipe network system:
Large diameter HDPE pipe is health non-toxic, not fouling, more suitable for urban water supply main conduit and buried tube, safety, hygiene, convenient construction.
2. Replaceable cement tubes, iron pipe and steel tube:
Used for old nets renovation project, don't need large area excavation, low cost, can be widely used in old bown of pipe network reconareuxrion.
3. Insustrial materials duct:
Chemical industry, chemical fiber, food, forestry, pharmacy, light industry and papermaking, metallurgical and other industrial raw material conveying pipe.
4. Landscaping water supply network:
Landscaping need lots of water pipe, HDPE pipe toughness and low cost, make it become the best choice.
5. Sewage discharge pipes:
HDPE pipe have unique corrosion resistance, can be used in industrial wastewater, sewage discharged pipe, low costs and maintenance costs.
6. Ore, mud transfers:
HDPE pipe has high resistance to stress and wear resistance, can be widely applied in conveying ore, coal ash and river bait-casting mud.
7. Agricultural irrigation pipe:
HDPE pipe inside sleek, great flow, cross road construction, good impact resistance, it is the ideal tool for agricultural irrigation.
SDR21 HDPE pipe 200mm 250mm dredge pipeline with floaters
Fittings offered: Elbow, Tee, Reducer, Coupler, End cap, Stub end, Flanges, Cross and all.
Q1. Are you trading company or manufacturer ?
A: We are professional manufacturer and welcome to your visit at any time.
Q2. How long is your delivery time?
A: Generally it takes 5-10 days if the goods are in stock,which is depends on your quantity and can be negotiable.
Q3. Do you provide samples ?
A: Yes,of course sample is avaliable and for small quantity we can supply for free.
Q4.What is your terms of payment ?
A: L/C,Western Union,T/T30% in advance ,balance before shippment and so on.
Q5. For pipe fittings, what do you do mainly?
A: For fittings, coupling (socket), elbows, tee, reducer, union, valve, cap some electrofusion fittings and compression fittings.
Q6.Can I have my own Logo on the product?
A: Yes, sure,you just send us your drawing,we'll make logo for you and before production we will confirm with you in advance.
Q7.Can I request to change the method of packaging and transportation?
A: Yes, the packaging and transportation can be made as per your requirements.
