Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
weichai
-
Weight:
-
600
-
Rated power/speed:
-
170-350HP/1500-2000rmp
-
Marketing Type:
-
Hot Product 2023
-
Key Selling Points:
-
Low price
-
cylinder diameter/stroke:
-
126*130/155mm
-
mode:
-
wet cylinder liner
-
fuel consumption rate:
-
0.5g/kw h
Quick Details
-
Displacement:
-
9.726L/11.596L
-
Emission Standard:
-
IMO TIER
-
Power:
-
170HP, 190HP, 260HP, 280HP, 200HP, 300HP, 350HP, 400HP
-
Place of Origin:
-
China
-
Brand Name:
-
weichai
-
Weight:
-
600
-
Rated power/speed:
-
170-350HP/1500-2000rmp
-
Marketing Type:
-
Hot Product 2023
-
Key Selling Points:
-
Low price
-
cylinder diameter/stroke:
-
126*130/155mm
-
mode:
-
wet cylinder liner
-
fuel consumption rate:
-
0.5g/kw h
Products Description

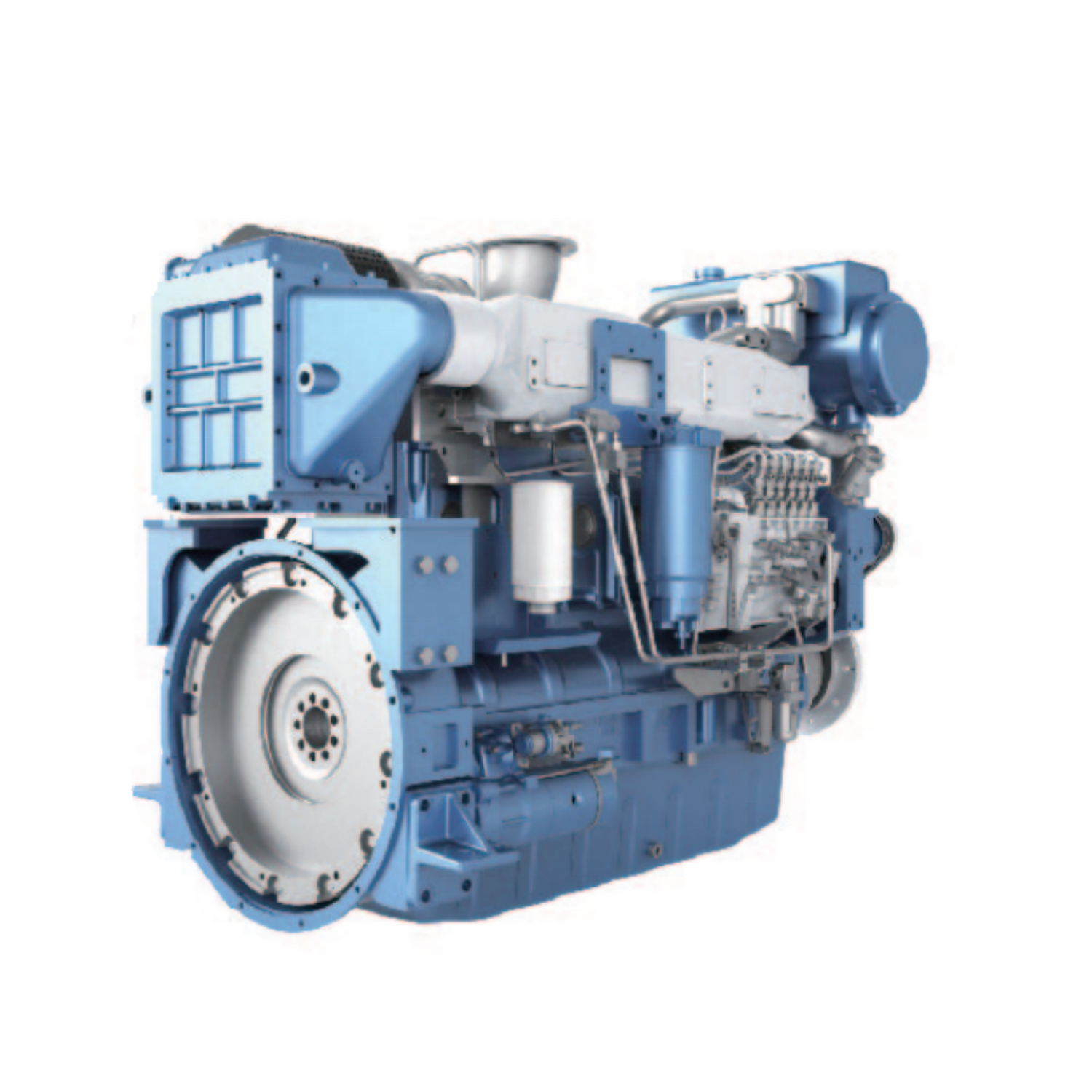

The machine is developed on the basis of the WP6 series diesel engine by increasing the stroke and increasing the power. It integrates the WP6 series diesel engine with the advantages of large power reserve, low fuel consumption, good emissions, high reliability, simple operation, and convenient maintenance.
The main advantages of diesel engines
A
.
High safety, frame main bearing structure, high body stiffness, high safety performance index.
B
.
Strong power, large power reserve, the use of preferred equipment, fast acceleration, high speed.
C
.
Economical and fuel-efficient, optimized power supply system, low fuel consumption under common working conditions, expand the operation range of diesel engine.
D
.
The internal and external double-circulation water cooling method uses fresh water in the inner circulation to cool the diesel engine, and the seawater in the outer circulation cools the fresh water through the sea-fresh water exchanger to increase the service life of the diesel engine. A water jacket drain pipe is selected to reduce the temperature of the engine room.
E
.
Comfortable and environmental protection, strengthen the setting of key parts, so that the product vibration is small, low noise.
F
.
Strong power:large power reserve, maximum output torque of 1500N.m, fast ship speed, high speed. Suitable for high-speed ships and heavy-duty fishing boats.
Main product type spectrum
|
WD10
|
model
|
air intake method
|
power（kw）
|
rotading speed(rpm)
|
|
|
WD10C140-15
|
Turbocharged
|
125
|
1500
|
|
|
WD10C190-15
|
Turbocharged
|
140
|
1500
|
|
|
WD10C218-15
|
Turbocharged
|
160
|
1500
|
|
|
WD10C240-15
|
Turbocharged
|
176
|
1500
|
|
|
WD10C258-15
|
Turbocharged
|
190
|
1500
|
|
|
WD10C278-15
|
Turbocharged
|
205
|
1500
|
|
|
WD10C190-18
|
Turbocharged
|
140
|
1800
|
|
|
WD10C200-18
|
Turbocharged
|
147
|
1800
|
|
|
WD10C240-18
|
1Turbocharged
|
176
|
1800
|
|
|
WD10C278-18
|
Turbocharged
|
205
|
1800
|
|
|
WD10C312-18
|
Turbocharged
|
230
|
1800
|
|
|
WD10C200-21
|
Turbocharged
|
147
|
2100
|
|
|
WD10C278-21
|
Turbocharged
|
205
|
2100
|
|
|
WD10C300-21
|
Turbocharged
|
220
|
2100
|
|
|
WD10C326-21
|
Turbocharged
|
240
|
2100
|
|
WD12
|
Model
|
Air intake method
|
Power(KW)
|
Rotating speed(rpm)
|
|
WD12
|
WD12C300-15
|
Turbocharged
|
220
|
1500
|
|
|
WD12C300-18
|
Turbocharged
|
220
|
1800
|
|
|
WD12C327-15
|
Turbocharged
|
240
|
1500
|
|
|
WD12C327-18
|
Turbocharged
|
240
|
1800
|
|
|
WD12C350-18
|
Turbocharged
|
258
|
1800
|
|
|
WD12C350-21
|
Turbocharged
|
275
|
2150
|
|
|
WD12C400-21
|
Turbocharged
|
294
|
2150
|
|
|
WD12C350NG
|
Turbocharged
|
258
|
2000
|
Outline
|
Size(mm) and weight(Kg)
|
|
|
|
Model
|
WD12
|
|
|
L
|
1534
|
|
|
W
|
807
|
|
|
H
|
1512
|
|
|
H*
|
800
|
|
|
Weight
|
1100
|
|
Applications
|
Ship parameters
|
|
Host
|
|
||
|
Captain(m)
|
28.6
|
Model
|
WD10C278-18
|
||
|
Ship width(m)
|
6
|
Power (kw)
|
204
|
||
|
Type depth(m)
|
3.2
|
|
|
||
|
Draft(m)
|
2
|
Speed (r/min)
|
1800
|
||
|
Speed(km)
|
10
|
|
|
||
|
Ship parameters
|
|
Host
|
|
||
|
Captain(m)
|
45
|
Model
|
WD12C327-21
|
||
|
Ship width(m)
|
7.7
|
Power (kw)
|
275
|
||
|
Type depth(m)
|
3.5
|
|
|
||
|
Draft(m)
|
2.6
|
Speed (r/min)
|
2150
|
||
|
Displacement（t）
|
500
|
|
|
||
|
Speed(km)
|
10
|
|
|
||
Marine hydraulic steering control system
Ship propeller shaft
Ship propeller
