Quick Details
-
Operating Weight:
-
6000KGS
-
Bucket capacity:
-
0.22
-
Machine Weight:
-
5795 KG
-
Hydraulic Cylinder Brand:
-
ORIGINAL
-
Hydraulic Pump Brand:
-
ORIGINAL
-
Hydraulic Valve Brand:
-
ORIGINAL
-
Engine Brand:
-
Cat C2.6 DLturbo
-
Power:
-
41.5KW
-
Working hours:
-
1200
-
used caterpillar 306E:
-
used Tracks shoes caterpillar 306E
-
used 306E excavators:
-
used 306E
Quick Details
-
Year:
-
2022
-
Showroom Location:
-
CHINA
-
Place of Origin:
-
Shanghai, China
-
Operating Weight:
-
6000KGS
-
Bucket capacity:
-
0.22
-
Machine Weight:
-
5795 KG
-
Hydraulic Cylinder Brand:
-
ORIGINAL
-
Hydraulic Pump Brand:
-
ORIGINAL
-
Hydraulic Valve Brand:
-
ORIGINAL
-
Engine Brand:
-
Cat C2.6 DLturbo
-
Power:
-
41.5KW
-
Working hours:
-
1200
-
used caterpillar 306E:
-
used Tracks shoes caterpillar 306E
-
used 306E excavators:
-
used 306E
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
Name:ShangHai Long shou Machinery Co,Ltd
|
|||||
|
|
|||||

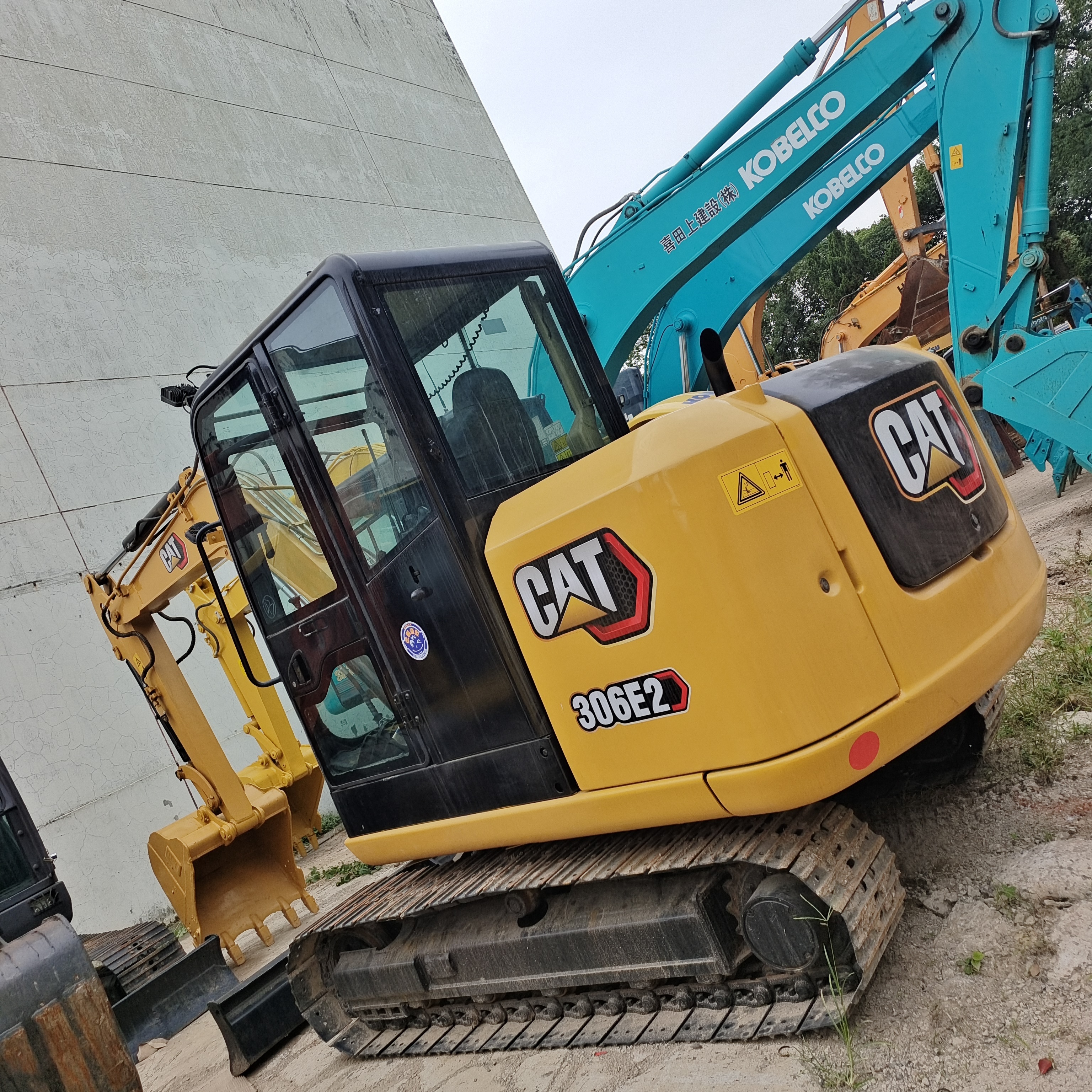

Parameter Configuration of Caterpillar 306E Hydraulic Excavator |
|||||
|
• Specifications |
|||||
|
Working weight of the whole machine (kg) 5795 |
|||||
|
Bucket capacity (m) ³) zero point two two |
|||||
|
Stick length (mm) 1580 |
|||||
|
Origin: Wujiang, Jiangsu |
|||||
|
Tonnage (ton) 6 |
|||||
|
Power Traditional Power |
|||||
|
• Bucket backhoe |
|||||
|
Manufacturer joint venture/import |
|||||
|
Power Traditional Power |
|||||
|
Performance |
|||||
|
Rotation speed (rpm) 10.3 |
|||||
|
Rotating torque (Nm) 14.2 |
|||||
|
Walking speed (km/h) 2.8/4.8 |
|||||
|
• Bucket excavation force (kN) 40 |
|||||
|
Dipper arm excavation force (kN) 26 |
|||||
|
Maximum traction force (kN) 48.2 |
|||||
|
Power system |
|||||
|
Engine model Cat C2.6 DLturbo |
|||||
|
Rated power (kW/rpm) 41.5 |
|||||
|
Displacement (L) 2.615 |
|||||
|
Cylinder diameter x stroke (mm) 87 x 110 |
|||||
|
• Cooling method: water cooling |
|||||
|
• Working form: direct spraying; Turbocharging |
|||||
|
• Oil capacity |
|||||
|
Fuel tank (L) 135 |
|||||
|
Hydraulic oil tank (L) 58 |
|||||
|
Hydraulic system (L) 85 |
|||||
|
Engine oil change quantity (L) 11.2 |
|||||
|
Cooling liquid (L) 15.5 |
|||||
|
Main body size |
|||||
|
Total length of transportation (mm) 5990 |
|||||
|
Total transportation width (mm) 1950 |
|||||
|
Total transportation height (mm) 2540 |
|||||
|
Track grounding length (mm) 1900 |
|||||
|
Total length of track (mm) 2500 |
|||||
|
Track shoe width (mm) 400 |
|||||
|
Minimum turning radius of the front working device (mm) 2470 |
|||||
|
Rear end turning radius (mm) 1700 |
|||||
|
• Scope of work |
|||||
|
Maximum excavation radius (mm) 6140 |
|||||
|
Maximum excavation radius of the parking surface (mm) 6010 |
|||||
|
Maximum excavation depth (mm) 3800 |
|||||
|
Maximum excavation height (mm) 5530 |
|||||
|
Maximum unloading height (mm) 3960 |
