Quick Details
-
Brand Name:
-
GENOR
-
Product name:
-
Oil Mist Collector
-
Power Source:
-
Electrical
-
Motor power:
-
0.75kw
-
Voltage:
-
380V
-
Frequency:
-
50Hz
-
Material:
-
Corrosion protection shell
-
Filter type:
-
HEPA filter
-
Type:
-
Oil mist collector
-
Application:
-
CNC machines
Quick Details
-
Weight (KG):
-
50
-
Warranty of core components:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GENOR
-
Product name:
-
Oil Mist Collector
-
Power Source:
-
Electrical
-
Motor power:
-
0.75kw
-
Voltage:
-
380V
-
Frequency:
-
50Hz
-
Material:
-
Corrosion protection shell
-
Filter type:
-
HEPA filter
-
Type:
-
Oil mist collector
-
Application:
-
CNC machines

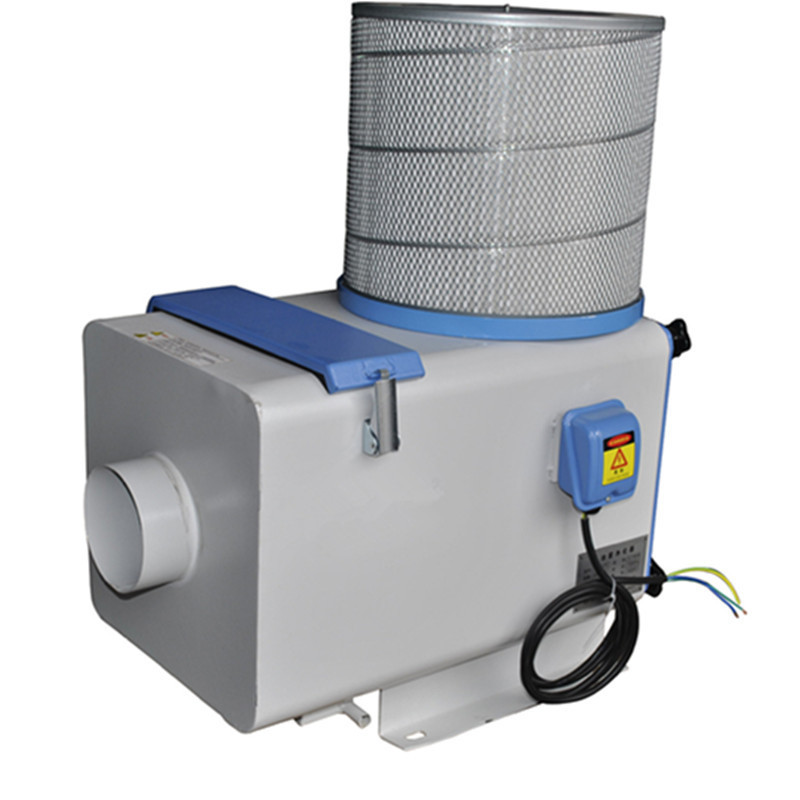

MAZAK CNC Machines Centrifugal Separator Dust Steam Smoke coolant HEPA Filter Air Cleaner Oil Mist Collector
Oil mist collector also known as oil mist eliminators, efficiently remove oil mist, coolant mist, fume and steam in machine and manufacturing facilities to ensure a clean and safe work environment .
It uses centrifugal separation and high-efficiency filtration technology.
The oil mist is drawn into the unit , it passes through the split cone and many stage filtration devices to filter out stray solid particles . Strong Centrifugal force pushes oil to the unit's outer case where it drains back to the machine for re-use or collection and clean air is returned to the workshop through the top of the unit.
After the oil mist is treated by the system, it is effectively collected and purified, and the collection and purification efficiency is as high as 98% or more.
| Model | GFT500 | GFT750 | GFT1500 | GFT2200 |
| Voltage | 50 / 60Hz , 3phase , 120V, 220V, 380V,400V ,415V | |||
| Power(kw) | 0.35 | 0.75 | 1.5 | 2.2 |
| Air Volume(m3/h) | 500 | 900 | 1300 | 1600 |
| Air pressure(pa) | 1100 | 1200 | 1800 | 1800 |
| Noise(Db) | 58 | 60 | 65 | 68 |
| Capture efficiency | 99.97% | |||
| Suction diameter(mm) | Φ125 | Φ125 | Φ150 | Φ150 |
| Dimensions(L*W*H)mm | 610*410*425 | 680*440*460 | 770*500*530 | 800*530*575 |
Application :
The oil mist collector is a collection and purification device designed for various types of processing machine tools.
It is widely used in CNC lathes, washing machines, grinding machines. hobbing, milling and edging machine tools, vacuum pumps, spray test chambers, electric discharge machining, spark eroding; turning; food spraying ,industrial washing processes, CNC machining centers and other processing equipment .
