Quick Details
-
Filling Accuracy:
-
0.2%
-
Place of Origin:
-
China
-
Weight:
-
300 KG
-
Core Components:
-
Other
-
Product name:
-
Paint Bucket Filling Sealing machin
-
Application industry:
-
chemical industry
-
Max Capacity:
-
30kg
-
Min readability:
-
0.1kg
-
Filling speed:
-
about 2-3 barrel/min(depends on the material)
-
Power:
-
7.220/50Hz(customer provide)
-
Relative humidity:
-
<95% (non-condensing)
-
Platform size:
-
400**400mm
-
Filling nozzle:
-
SUS304 and PTFE
-
Material interface:
-
DN50 flanged joint
Quick Details
-
Machinery Capacity:
-
2-3 barrel/min(depends on the material)
-
Packaging Material:
-
Plastic, Iron
-
Filling Material:
-
Oil, oil paint, emulsion paint, coatings
-
Filling Accuracy:
-
0.2%
-
Place of Origin:
-
China
-
Weight:
-
300 KG
-
Core Components:
-
Other
-
Product name:
-
Paint Bucket Filling Sealing machin
-
Application industry:
-
chemical industry
-
Max Capacity:
-
30kg
-
Min readability:
-
0.1kg
-
Filling speed:
-
about 2-3 barrel/min(depends on the material)
-
Power:
-
7.220/50Hz(customer provide)
-
Relative humidity:
-
<95% (non-condensing)
-
Platform size:
-
400**400mm
-
Filling nozzle:
-
SUS304 and PTFE
-
Material interface:
-
DN50 flanged joint
Product Overview

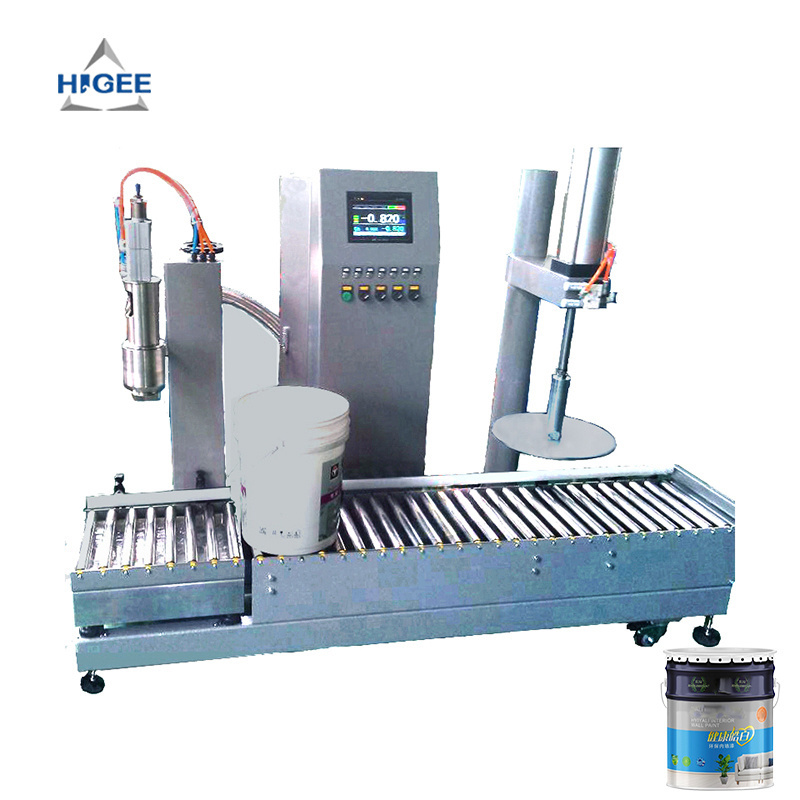

20 litres Semi-automatic coatings emulsion paint 2 in 1 filling and capping machine
Working process
place the drum on the weighing platform--machine starts to fill automatically--achieve the target
weight--machine stops--manually push the drum to the capping device--the device caps the cover.
weight--machine stops--manually push the drum to the capping device--the device caps the cover.
Higee Paint Bucket Filling Sealing machine/Plastic Coating Bucket Lid Capper/Pails Capping Machine
Features
1. Contacting material parts using SUS304 & PTFE;
2. Using Mitsubishi PLC, Omron relay;
3. The sealing system uses PTFE, solvent resistance, acid and alkali resistance and long life;
4. The platform and roller all use stainless steel, acid resistance;
5. Filling inside the drum, avoiding material dripping out;
6. Fast and slow filling method to increase the filling accuracy;
7. After the filling is finished, the filling gun will pull up automatically and wait for the next filling;
8. unique dripping hold device avoids dropping on the drum;
9. If the gun does not insert the drum correctly, the gun will pull up automatically and do not fill;
10. RS232 interface can transfer the data to the PC.
11. All digital adjustment, anti-vibration software;
12. Only need to push the drum on the platform and target the drum hole manually;
13. Press the emergency stop button when an emergency situation occurs;
Product Paramenters
|
Machine line
|
semi automatic filling machine ,capping machine
|
|
Max Capacity
|
30kg
|
|
Min readability
|
0.1kg
|
|
Filling speed
|
about 2-3 barrel/min(depends on the material)
|
|
Operate temperature
|
-10℃-50℃
|
|
Relative humidity
|
< 95% （non-condensing）
|
|
Platform size
|
400×400mm structure and
|
|
roller material
|
304 stainless steel.
|
|
Filling nozzle
|
SUS304 and PTFE
|
|
Tube pressure
|
(0.2-0.6)MPa(depends on the material)
|
|
Power
|
220/50Hz(customer provide)
|
|
Machine size
|
can be customized
|
