Quick Details
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
China
-
Brand Name:
-
Jinghong
-
Voltage:
-
220V/380V
-
Dimensions(L*W*H):
-
1.56*0.8*0.85M
-
Weight:
-
120 KG
-
Marketing Type:
-
Updated design 2022
-
Print head:
-
EPS heads (DX10/DX7)
-
Printing Color:
-
CMYK/W
-
Printing Size:
-
3m high * 6m long
-
Application:
-
Indoor Outdoor Advertisement
-
Ink type:
-
UV ink /waterbased pigment ink
-
Number of printhead:
-
1-3(Optional)
Quick Details
-
Print Dimension:
-
1-12.7mm, 200mm*200mm, 210mm*290mm, 210mm*300mm, 297mm*210mm, 300mm*450mm, 600mm*900mm, 900mm*600mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
China
-
Brand Name:
-
Jinghong
-
Voltage:
-
220V/380V
-
Dimensions(L*W*H):
-
1.56*0.8*0.85M
-
Weight:
-
120 KG
-
Marketing Type:
-
Updated design 2022
-
Print head:
-
EPS heads (DX10/DX7)
-
Printing Color:
-
CMYK/W
-
Printing Size:
-
3m high * 6m long
-
Application:
-
Indoor Outdoor Advertisement
-
Ink type:
-
UV ink /waterbased pigment ink
-
Number of printhead:
-
1-3(Optional)
Product Description
Specification
|

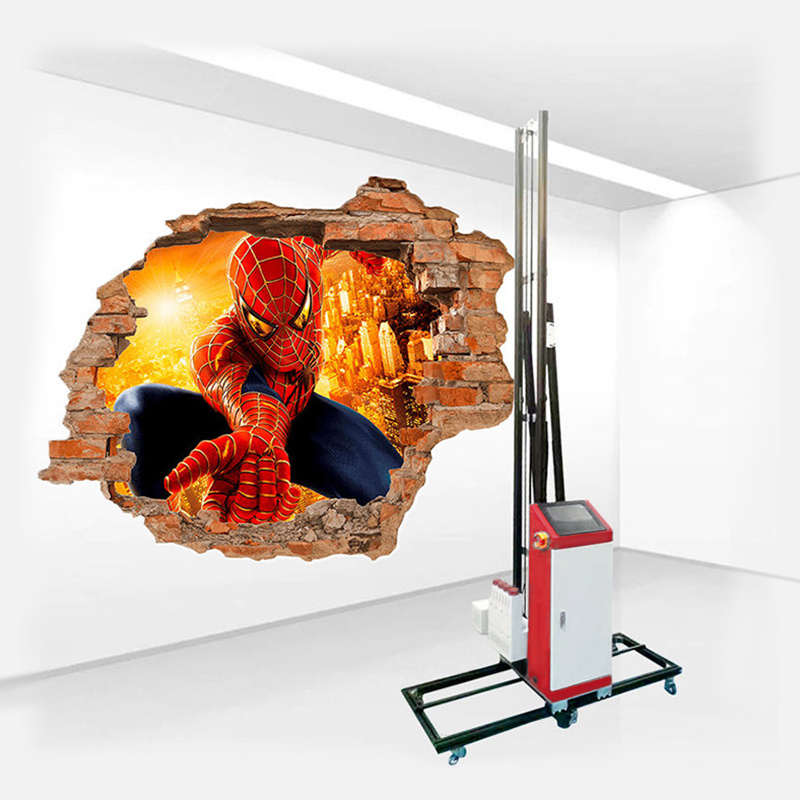

Machine name
|
Portable wall machine
|
|
Print size
|
3m high * 4.5m long
|
|
Nozzle model
|
Epson, JapanDX10/DX7Optional
|
|
Nozzle selection
|
dx7,dx10optional
|
|
Machine power
|
350W
|
|
Voltage
|
110V-220V(mobile power can be used)
|
|
Accuracy
|
360*720*1440*2880dpi
|
|
Ink color
|
C-M-Y-K-W
|
|
Speed
|
6-14 m2 / h
|
|
Picture format
|
PSD、JPG、JPEG、PNG、TIF、AI-PDF
|
|
Machine weight
|
Main machine 15kg, guide rail 4 * 8kg, base shaft 15kg
|
|
Output mode
|
Wired transmission, printing controlled by computer
|
|
Key components
|
6 sections of 1m track, 2 ultrasonic probes, 3 motors and 1 reducer
|
|
Apply
|
Lime wall, emulsion paint wall, putty powder wall, ceramic tile, metal, wallpaper
|
|
3D/5D
|
Yes (can simulate printing)
|
|
Detection function
|
Up and down two-way detection of concave convex, with an accuracy of 1mm
|
|
Power failure recovery
|
There is software to store data in real time
|
|
Nozzle inspection
|
Yes (software detects nozzle condition)
|
|
Color calibration
|
Yes (software color correction)
|
|
Distance adjustment
|
Yes (print size and distance can be adjusted by software)
|
|
Power failure endurance
|
Yes (self provided UPS mobile power supply is required)
|
|
Print positioning
|
Yes (the laser cross locator makes the picture print to the specified position)
|
|
Horizontal adjustment
|
Yes (equipment track has horizontal adjustment function)
|
|
Stack disassembly
|
One meter after folding, it can be disassembled into three parts for convenient handling
|
|
Picture splicing
|
Yes (seamless splicing of pictures can be realized) Subject to actual conditions。
|
