Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
3330x1800x1950mm
-
Machine Weight:
-
3200 kg
-
Bucket capacity:
-
0.45m3, 0.45m3
-
Marketing Type:
-
Hot Product 2024
-
Emission standard:
-
Chinese-III
-
Certification:
-
ISO
-
Rated Load:
-
1000kg
-
Max. breakout force:
-
18kn
-
Port:
-
Any China port
-
Cooling mode:
-
Water-cooling
-
Operation mode:
-
Mechanical & multi-function electronic control
Quick Details
-
Engine Brand:
-
YANMAR
-
Power:
-
50KW
-
Brand Name:
-
XCMG, Evangel
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
3330x1800x1950mm
-
Machine Weight:
-
3200 kg
-
Bucket capacity:
-
0.45m3, 0.45m3
-
Marketing Type:
-
Hot Product 2024
-
Emission standard:
-
Chinese-III
-
Certification:
-
ISO
-
Rated Load:
-
1000kg
-
Max. breakout force:
-
18kn
-
Port:
-
Any China port
-
Cooling mode:
-
Water-cooling
-
Operation mode:
-
Mechanical & multi-function electronic control
Contact Way
Sales Manager: Frank Xie
Whatsapp/Mobile Phone/Wechat: +86 18321199733
Whatsapp/Mobile Phone/Wechat: +86 18321199733
Email: frank@evangelchina.com
I'm Frank and I will always be frank.
Pls feel free to contact me if you need more information. Looking forward to your news!
Products Description

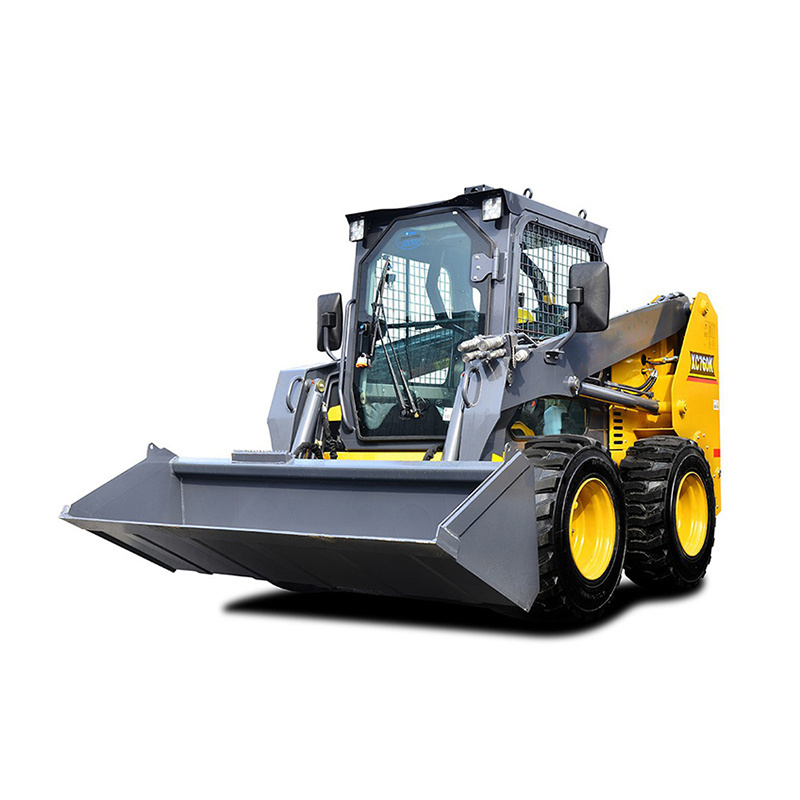

Chinese Factory Supply XC7-SR08 1Ton Mini Skid Steer Loader with Attachments Deposit Shipment
The XC-Series skid loader is a new multi-function engineering machine which gathering the loading and excavating in the integral whole machine.It is the new generation model of the development based on the same kind product technique in domestic and international. Having adopted four wheel drive, hydraulic torque conberter, hydraulic streering system, hydrulic.It is extensively used in the roadmaintenance, farml and developments, getting clay for making brckiln, piping builds, the cable builds, park virescence and the excavating of the road opens to dig, broking up etc.
1. The Yanmar engine：
Low noise, low exhaust gas, low west, green environmental protection, driving motive, good reliability. The spirit valve controltake type brake system and parking brake system move two unite as one, when there is trouble in the gas brake system, it can make intime brake automatically,so it is more safety.
2. Humanization designs:
The hand handle layout reasonable, manipulating is portable;steer device, gauge dish and the chair all can be adjusted in up-down and front-back directions according to your sense, so it is comfortable. The back wheel bridge can swing up and down round the cancer, it make wheels has well cling, so the machine has good span and cross capability.
3. Optimized load work device:
Reasonable joint layout,dependable position limit function. Lavelling bucket automati-cally in unload position, lacenning labor intensity, and the w
ork ra
nge is larger, workfore is more study and steady, the work efficiency is higher.
4.Optional parts:
4 in 1 bucket/ hammers/ Snow plough/ Augers
Specification
|
Description
|
|
Unit
|
Parameter value
|
|
|
Rated load
|
|
kg
|
1000
|
|
|
Tipping load
|
|
kg
|
1500
|
|
|
Operating weight
|
|
kg
|
3140
|
|
|
Maximum breakout force
|
|
kN
|
18
|
|
|
Engine
|
Manufacturer
|
|
Yanmar
|
|
|
|
Model
|
|
4D27G31
|
|
|
|
Rated power
|
Hp/kw
|
49.3/36.8
|
|
|
|
Rated speed
|
rpm
|
2500
|
|
|
|
Cooling mode
|
|
Water-cooling
|
|
|
Performance parameter
|
Operation mode
|
Mechanical & multi-function electronic control
|
|
|
|
|
Tire standard
|
|
10-16.5
|
|
|
|
Maximum speed
|
Km/h
|
14
|
|
|
Hydraulic system
|
Hydraulic flow rate
|
L/min
|
62.5
|
|
|
|
Optional large flow
|
|
/
|
|
|
|
Hydraulic pressure
|
bar
|
200
|
|
|
Maximum operating height
|
|
mm
|
3878
|
|
|
Bucket hinge pin height
|
|
mm
|
3057
|
|
|
Cabin top height
|
|
mm
|
1960
|
|
|
Maximum horizontal height of bucket bottom
|
|
mm
|
2851
|
|
|
Length without bucket
|
|
mm
|
2533
|
|
|
Length with bucket
|
|
mm
|
3310
|
|
|
Toppling angle
|
|
°
|
40
|
|
|
Maximum unloading height
|
|
mm
|
2375
|
|
|
Ground-bucket angle
|
|
°
|
30
|
|
|
Rotating angle of bucket at highest point
|
|
°
|
83
|
|
|
Unloading distance
|
|
mm
|
575
|
|
|
Wheel base
|
|
mm
|
1027
|
|
|
Departure angle
|
|
°
|
25
|
|
