KINGLAN Press Machine

25T to 2400T

Power press / Punching machine / Press machine

High quality power press machine --factory direct sale

We could provide the whole line solution including power press, feeder and decoiler, mold, manipulator, Iron-hand, robot, etc.

After twenty years of struggle, KINGLAN has become stamping manufacturers set technology research and development,manufacturing,sales as a whole, widely used in aero space, automobile, ship electronic appliances, instrumentation, mediacal equipment, metal products and other industries such as manufacuring field.

Precision assembly, promotion value. The manipulateor and the punch assembly joint simulation and other first-class assembly equipment, Grreatly improve the assembly efficiency, through adjusting, inspecation, testing and other assembly process, to ensure the high precision and reliability of the product.

In all our years of manufacturing quality power presses and other power press products, we have made it our goal to put the customer first. We believe in offering the right solution to meet your needs, whether it is having the right parts to fix your existing machines, the presses you need at an affordable price, or the ongoing support to keep your machines in top condition.

Our goal is to provide our customers with the highest level of quality, whether it is in our power presses and other press designs, or in our customer service dealings with each customer. We have been in business for 20 years, which makes us uniquely suited to meet the needs of our varied customers. Contact us today to learn more!

Products Description

Introduction ALP Series

Pneumatic machanical single crank precision press macine

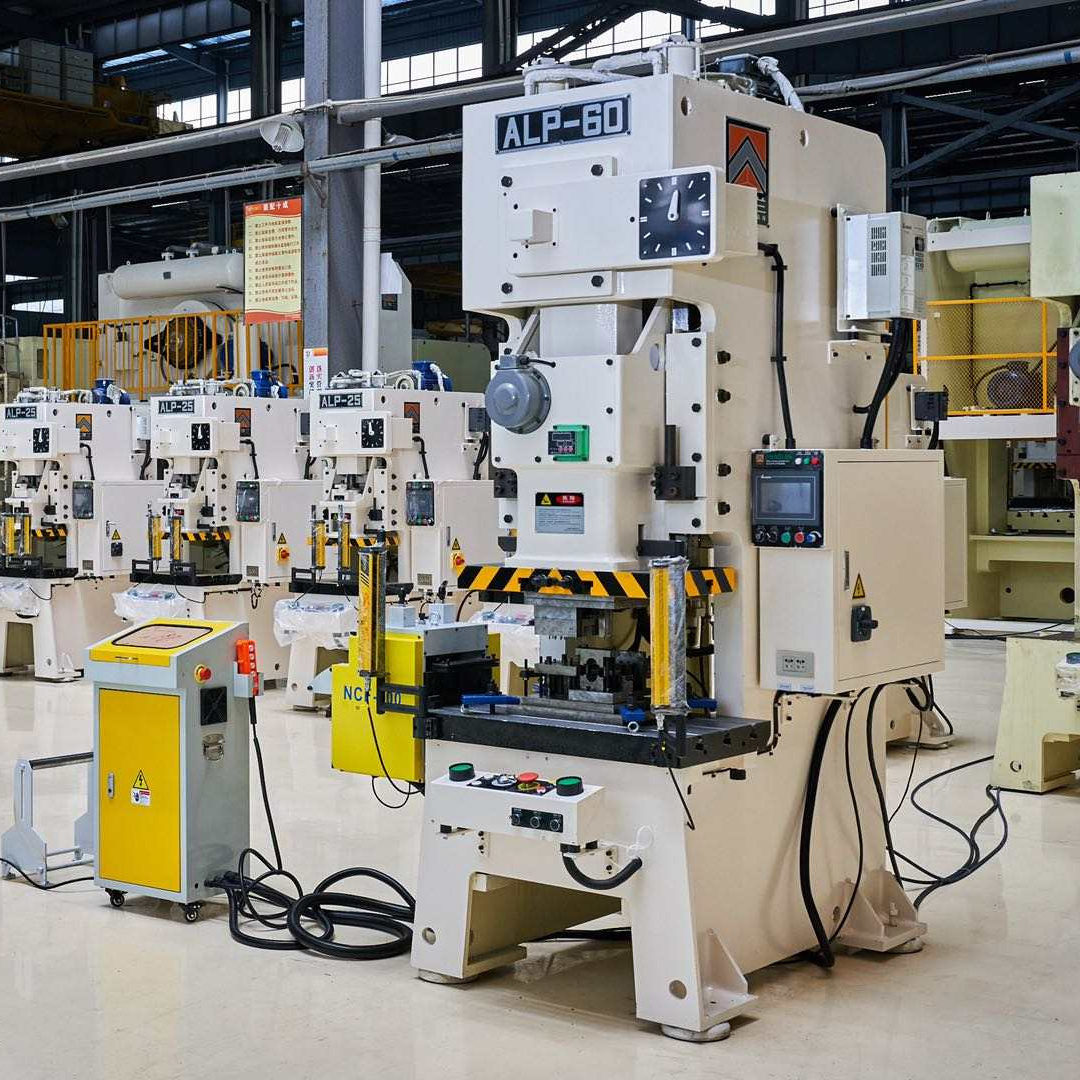

- KINGLAN famous brand, the ALP (JH21) series press machina capacity can be 20T, 35T, 45T, 60T, 80T,110T,160T, 200T, 260T, 315T, 415T. Punching -machine Stamping Mold Save Energy 30% . ISO /CE certificate approved. - Pneumatic C frame/open type single crank Punching Machine /press machine/power press - ALP air source punching machine customized table size

Excellent connect with: -Decoiler&straightner + NC servo feeder -Transfer system -Robot -Tools/Molds/Progressive die -Production line complete solution -Filed service /On line service

PRODUCTIVITY -High precision processing -High efficiency operation -Machine to ensure products of high quality

OPERATIONAL -Facilitate the operation of implementation -Fixed locking type six-surface guide way -Cutting low-noise -Safe and reliable operating state -Lauguage: Chinese / English (lauguage switch)

Product Images

Machine Main Features

1.Welded steel plates for machine body, removed of inner stress and high in rigidit. 2. Crankshaft arranged in longitudinal direction, simple in structure and convenient for adjustment and maintenance 3. Crack-down type protective device to prevent damage of the machine tool due to overload 4. Combined type pneumatic friction clutch-brake, steady engagement and low noise level 5. PLC control for electrical section, safety duplex valve for air passages, flexible in movement, safe and reliable with options of single operation, inching and continuous operation, conforming to the safety standard for stamping machines 6. Slide blocks fitted with pneumatic balance device for 80T and plus to enhance stability and precision in operation 7. Optional automatic feeding air cushion device, photoelectric protection device, etc. 9.Optional device: automatic feeding device,, electric protective device, photoelectric protection device and air cushion device, etc.

Scope Of Application

Application

It can used for Home applicance, Air conditioner, Air cooler, refrigerator, Auto parts, Automotive parts, Car parts, Filters,Washing machine, Kitchen sinks, Kitchen products，Kitchenware,Kitchen applicance,Kitchen utensile,Kitchen supplies, Gas stove, Gas cooker, Mobile parts, Mobile phone parts， Microwave oven, hinge etc.

Product Details

Working Face

Operation Screen

Product Details

Pressure Monitoring

Whole Line Solution

Feedering Material System Machines

The wide range of automatic equipment that we supply including 3 in 1 decoiler straightener feeder, 2 in 1 decoiler straightener, decoiler, coil straightener, press feeder, coil blanking line as well as all kinds of press transfer including 2D transfer, 3D transfer, single bar transfer and long beam transfer between multi-press etc. Dependable Quality KINGLAN continues to control the entire supply chain and quality from raw material to machines assembly. All machines are certified with European CE. Less maintenance and purchase cost help you maximize efficiency and profits. KINGLAN is active in global markets with the permit for import and export. We have run lots of successful projects with local manufacturers in The Czech Republic, Italy, Portugal, Ireland, Spain, Canada, USA, Mexico, South Africa, as well as Asian markets, such as South Korea, Malaysia, Indonesia, Pakistan and India.

Manipulator

The stamping robotic arm manipulator is a device developed on the basis of automation equipment and specially developed for the unmanned production of stamping automation according to the characteristics of stamping products. It can replace the man power in terms of stamping, handling, loading and unloading of materials in various stamping stations.

Mold

Design & Manufacturing

The power press stamping molds/tools are including: 1. Progressive die, 2. Stage mold (single stage mold), 3. Transfer mold (with transfer system) What is the difference between progessive die, stage mold and transfer mold? Continuous die (also known as progressive die, step die) refers to the press in a stroke, in turn in several different positions, at the same time to complete a number of procedures of the die. Blanking parts are gradually formed in the continuous die, continuous forming is a process method of process concentration, can make the edge cutting, incision, groove cutting, punching, plastic deformation, blanking and other processes in a mold to complete. According to the actual needs of stamping parts, according to a certain order arranged a number of stamping processes (called in the progressive die station) for continuous stamping. It can not only complete the blanking process, but also complete the forming process, and even the assembly process, many complex stamping parts that need multi-process stamping can be completely formed on a die, which provides favorable conditions for high-speed automatic stamping. It can be seen that the continuous die is a kind of punching die with many working stations and high efficiency. Engineering mould (single working procedure mold/ single stage mold), is a single working position, single working procedure mould.It is characterized by a simple mold structure, the need for artificial or robotic arm assistance;So the relative production efficiency is low, mainly used for batch is not large, precision requirements are not high workpiece production.Due to the low cost of the engineering mould and the low requirement on the tonnage of the punch press, the engineering mould scheme is often preferred when making the mould scheme. However, with the continuous cost rising, the engineering mould will be gradually replaced by the continuous mould or transfer mould. Multi-station transfer mold, generally refers to the use of special multi-station punch, by a number of engineering mold with a certain process connection according to the process sequence installation, a kind of mold delivered by the manipulator. The most important characteristics of the multi-station transfer die (1) in the use of multi-station punch;(2) Each station is a complete engineering model to complete a specific process. Each engineering mold (single station-mold) has a certain connection, each station mold can be adjusted independently, and the adjustment is generally not restricted by the front and back mold;(3) transmission mode: mechanical hand delivery.

Product Name	Precision metal progressive stamping dieprecision metal progressive stamping die
Material	SKD11,D9, Tungsten steel, Cr12 Mov
Standard	DIN GB ISO JIS BA ANSI
Design file format	dwg, dxf, step, x_t, top, igs
Tooling manufacturing cycle	3 weeks to 10 weeks
Forming way	Punching, blanking, bending, burning, deep drawing, forming, etc
Stamping parts	Aluminum, phosphor bronze,stainless steel,steel,alloy,copper,plastic etc
Parts machining equipment	Hot galvanized,Polish,Anodize,Sand blasting,Powder coating,Vacuum Plating,Nickel, Zinc, Chorme,Tin, Silver plating,gold-plated,imitation gold-plated,etc

Mould Design Capacity

· Sheet metal finite element analysis capability; · 3 Dand 2 Ddesign capability; · 10 mould design engineers; · 20 years mould design experience, · 15 ~ 30 days fast mould delivery; · Mold manufacturing capacity: 50set/Month

Stamping Capacity

· 30T~400T Punching machine 25 sets; · Product minimum size to 5mm, maximum size to1000mm processing capacity · Servo Press Machine; · Material: Steel, Stainless steel, Aluminum, Copper,Brass, Kovar etc.; · Stamping capacity: 15000000shot/Month.

Quality Control Capacity

· 8 persons Full-time quality control personnel; · Mitoyo three coordinate measuring instrument,Keyence height 3D profilometer,TESA altimeterand other high-precision measurin equipment; · IS9002 quality management system certification; · With PDCA and 5W1H good work habits.; · Inspection report and SGS report are providefor each product.
