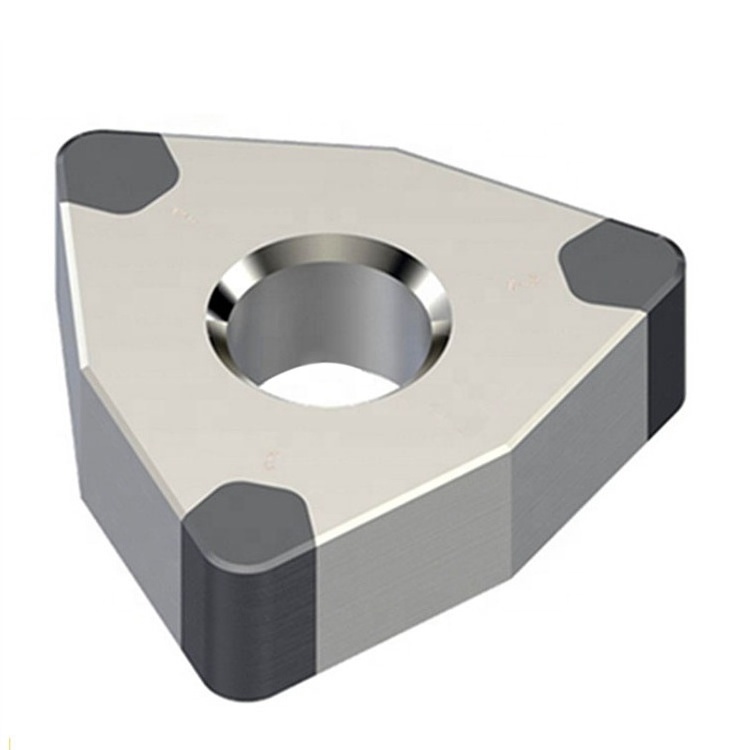

CBN CNC insert WNMG080408 WNGA 080404 Wnmg 080412 PCBN Tip Lathe Cutter Turning Tools for Cutting Hardened Steel Cast Iron Roll

CBN CNC insert WNMG080408 WNGA 080404 Wnmg 080412 PCBN Tip Lathe Cutter Turning Tools for Cutting Hardened Steel Cast Iron Roll

FOB Reference Price: Get Latest Price

≥1 Pieces

US $5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Henan, China

Brand Name:: Drills-king

Model Number:: DK-CBN

Product name:: PCBN CBN PCD Inserts

Cutting accuracy:: semi-finish/finish cutting

Control machine:: CNC, lathe machine

Dlivery:: 3-15days

Surface finish:: Polished

Edge type:: 1edges\2 edges\4 edges

Workpiece:: Hardened Steel\Cast Iron

Application:: Internal External Turning Inserts

CBN content:: 55%-95%

Certification:: ISO9001

Quick Details

Usage:: External Turning Tool, aluminium cutting, External Turning Tool

Hardness:: 80-100

Coating:: CBN

Place of Origin:: Henan, China

Brand Name:: Drills-king

Model Number:: DK-CBN

Product name:: PCBN CBN PCD Inserts

Cutting accuracy:: semi-finish/finish cutting

Control machine:: CNC, lathe machine

Dlivery:: 3-15days

Surface finish:: Polished

Edge type:: 1edges\2 edges\4 edges

Workpiece:: Hardened Steel\Cast Iron

Application:: Internal External Turning Inserts

CBN content:: 55%-95%

Certification:: ISO9001

Product Overview

What is PCBN/CBN Insert?

Polycrystalline cubic boron nitride (PCBN) is a synthesized mass of randomly orientated cubic boron nitride (CBN) particles, bound by a ceramic binder phase. PCBN-Cubic Boron Nitride Blade (CBN) is mainly suitable for processing of hardened steel, hard/ grey cast iron, HSS Roll. Sintered metal,high hardness materials.

High Quality: 1. Optimize the cutting edge to make the cutting edge sharper and reduce the resistance during cutting.

2. The design of the cutter body provides the ability of anti-vibration cutter during cutting.

3. High hardness and ultrafine particle matrix composition, which effectively improves the wear resistance of the blade.

CBN cubic boron nitride superhard CNC blade

1. Suitable for processing high hardness quenched steel, tool steel, die steel. 2. Suitable for processing chilled cast iron, cast iron, nickel base alloy, carburizing. 3. Suitable for processing high temperature alloy steel, high chromium cast iron and thermal spray welding materials. 4. The working hardness can be above HRC50-60 degrees.

PRODUCT SPECIFICATIONS

Product Name	PCBN INSERTS
Brand	Drills-King
Application	Quenching steel, cast iron, powder metal, super alloy
Hardness	super hardened
Material for Inserts	Tungsten Carbide and CBN
Usage	cnc lathe machinery

Product Display

Application:

PCBN/CBN cutting tools are suitable for the high-speed and super high-speed precision machining of hardened steel of HRC>45, wear-resistant cast iron, heat-resistant alloys of HRC>35, pearlite grey cast iron, nodular cast iron, Fe-based P/M sintered materials and hardened cast iron.
