- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
WLL0.5-4.5
-
Power:
-
1.5kw
-
Rated Loading Capacity:
-
500kg
-
Min. Lifting Height:
-
150mm
-
Max. Lifting Height:
-
4500m
-
Table Size:
-
2000mm*1500mm
-
Overall Dimensions:
-
standard
-
Weight:
-
standard
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Optional
-
Customer design:
-
Available
-
Application:
-
Warehouse
-
Material:
-
High-duty Steel Structure
-
Usage:
-
Higher Level
-
Voltage:
-
110v 220v 240v 380v Optional
-
Feature:
-
Easy Operation Safety Convenience
-
Keywords:
-
Hydraulic Lift
-
Certification:
-
CE
Quick Details
-
Warranty:
-
12months
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WL
-
Model Number:
-
WLL0.5-4.5
-
Power:
-
1.5kw
-
Rated Loading Capacity:
-
500kg
-
Min. Lifting Height:
-
150mm
-
Max. Lifting Height:
-
4500m
-
Table Size:
-
2000mm*1500mm
-
Overall Dimensions:
-
standard
-
Weight:
-
standard
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Optional
-
Customer design:
-
Available
-
Application:
-
Warehouse
-
Material:
-
High-duty Steel Structure
-
Usage:
-
Higher Level
-
Voltage:
-
110v 220v 240v 380v Optional
-
Feature:
-
Easy Operation Safety Convenience
-
Keywords:
-
Hydraulic Lift
-
Certification:
-
CE
Safety Precautions:
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
4. Anti-dropping device: Prevent falling of platform.
Product induction:

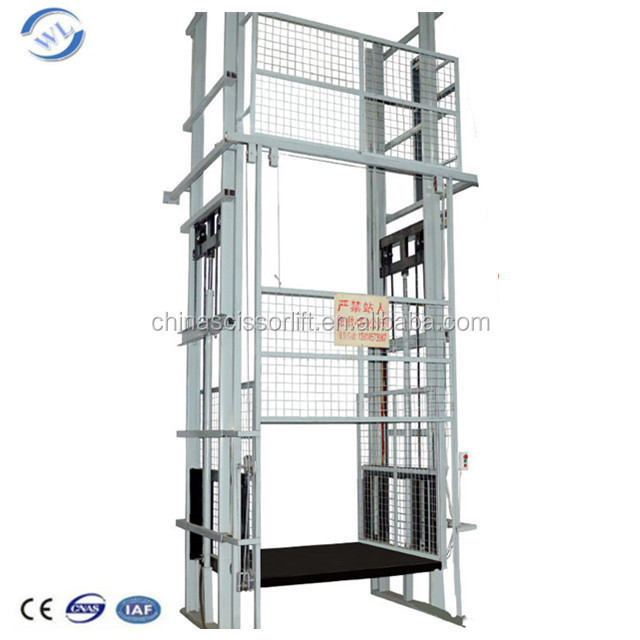

Vertical lift--Lead rail hydraulic lifting platform is used for transfer cargo between different floors. Self-height is about 150-300mm. This platform can install on the ground directly or make one pit. Hydraulic drive, steady working and simple operate.
Models of the product:
|
Model |
Loading Capacity |
Lifting height |
Min.height |
Table s ize |
Power |
|
WL L 0.5-4.5 |
500kg |
4500mm |
150mm |
2000*1500mm |
2.2kw |
|
WL L 1.0-4.5 |
1000kg |
4500mm |
150mm |
2000*1500mm |
3kw |
|
WL L 2.0-4.5 |
2000kg |
4500mm |
150mm |
2000*1500mm |
3kw |
|
WL L 3.0-4.5 |
3000kg |
4500mm |
160mm |
2000*1500mm |
3kw |
|
WL L 0.5-7.5 |
500kg |
7500mm |
150mm |
1200*1200mm |
1.5kw |
|
WL L 1.0-7.5 |
1000kg |
7500mm |
150mm |
1800*1400mm |
2.2kw |
|
WL L 2.0-7.5 |
2000kg |
7500mm |
150mm |
2000*1500mm |
2.2kw |
|
WL L 3.0-7.5 |
3000kg |
7500mm |
160mm |
2000*1600mm |
3kw |
|
WL L 1.0-10.5 |
1000kg |
1050 0 mm |
150mm |
1800*1400mm |
2.2kw |
|
WL L 1.0-14 |
1000kg |
1400 0 mm |
150mm |
1800*1500mm |
2.2kw |
|
WL L 3.0-4.5 |
3000kg |
4500mm |
160mm |
5000*3000mm |
4kw |
Product show:
Packing and delivery
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Remarks:
1. All of the products will be full tested before delivery.
2. Payment: By T/T in advance
3. Delivery: within 15 days after receipt of T/T payment
4. Min. order: I unit
5. Validity: 30 days
A. All the machines will be full tested before shipment
B.Technical supports and suggestions before you order a machine according to your work place.
C. Professional opertion instruction of the machine.
D. 12 months warranty period and we will provide the consumable parts at cost price after t he warranty period.
E. 24-hour technical support by emails, calling or videos.
