Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOSJ
-
Voltage:
-
Requirment
-
Dimension(L*W*H):
-
5000*800*1200Mm
-
Weight:
-
10 kg
-
Name:
-
c channel roll forming machine
-
Usage:
-
Automatic Control Operation
-
Certification:
-
CE ISO SGS
-
Function:
-
Stable
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Raw material:
-
Galvanized Sheet
-
Roller material:
-
GCr15
-
Control system:
-
PLC
-
Application:
-
channel support
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
0-15m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOSJ
-
Voltage:
-
Requirment
-
Dimension(L*W*H):
-
5000*800*1200Mm
-
Weight:
-
10 kg
-
Name:
-
c channel roll forming machine
-
Usage:
-
Automatic Control Operation
-
Certification:
-
CE ISO SGS
-
Function:
-
Stable
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Raw material:
-
Galvanized Sheet
-
Roller material:
-
GCr15
-
Control system:
-
PLC
-
Application:
-
channel support
Galvanized Steel Drywall Profile C U Channel Roll Forming Machine
Technical Parameters
|
Main Forming machine |
Forming steps |
24 steps |
|
Shaft diameter |
50mm |
|
|
Machine stand |
Individual Arch Plate |
|
|
Machine frame |
steel plate welded |
|
|
roller material |
Cr12 |
|
|
shaft material |
45# steel with quenching and tempering |
|
|
Work speed |
standard: 20---25m/min; 45---60m/min |
|
|
Transport |
By gear |
|
|
Power of main machine |
18.5kw |
|
|
Voltage |
380V-50HZ-3P(as required) |
|
|
Machine dimension |
30*3.5*1.5m |
|
|
Machine weight |
About 30T |
|
|
Machine color |
Yellow and blue(as required) |
|
|
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gearbox transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working Feature : Ensure stability , precision and lifetime. |
||
Equipment structure
It is composed of passived-decoiler, leveler, servo feeding machine, punching machine, roll forming machine, hydraulic cutting machine, collection table, electrical control system etc.
Machine Details

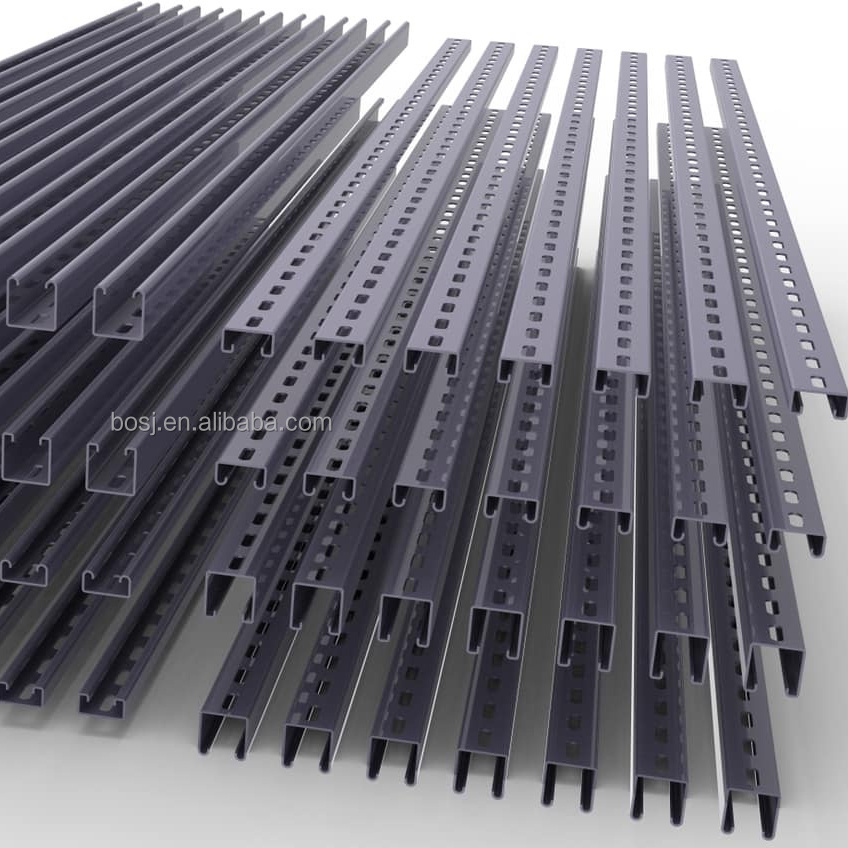

C Channel Profiles
