1.Automatic break protection for power leakage and short circuit;
2.Under-pressure protection: when incoming air's pressure is Less than or equal 0.5MPa, the equipment will be automatically stopped.
3.Water-shortage protection: when the level of the water tank is lower than that of the liquid switch, the equipment will be automatically stopped.
4.Remarks:We can add other functions as customer's requirements like:hot tank heating washing,bottle external washing,cap washing ,capacity note and man-machine control.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
99.8%
-
Voltage:
-
380V 50HZ 3P or customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Grandee
-
Dimension(L*W*H):
-
2900*1000*1800mm
-
Weight:
-
500 KG
-
Machine name:
-
Automatic 5 gallon bottle water filling machine
-
Filling material:
-
Non Gas Liquid
-
Capacity:
-
150BPH for 5 gallon bottle
-
Filling temperature:
-
Normal temperature filling
-
Bottle type:
-
Round Bottle
-
Machine type:
-
Linear type
-
Function:
-
5 gallon bottle water washing filling capping
-
Material:
-
Stainless Steel 304/316
-
Processing Types:
-
Gravity pressure filling
-
Control:
-
PLC+ Touch Screen
Quick Details
-
Machinery Capacity:
-
150BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Water
-
Filling Accuracy:
-
99.8%
-
Voltage:
-
380V 50HZ 3P or customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Grandee
-
Dimension(L*W*H):
-
2900*1000*1800mm
-
Weight:
-
500 KG
-
Machine name:
-
Automatic 5 gallon bottle water filling machine
-
Filling material:
-
Non Gas Liquid
-
Capacity:
-
150BPH for 5 gallon bottle
-
Filling temperature:
-
Normal temperature filling
-
Bottle type:
-
Round Bottle
-
Machine type:
-
Linear type
-
Function:
-
5 gallon bottle water washing filling capping
-
Material:
-
Stainless Steel 304/316
-
Processing Types:
-
Gravity pressure filling
-
Control:
-
PLC+ Touch Screen
GRANDEE MACHINE
is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
Products Description

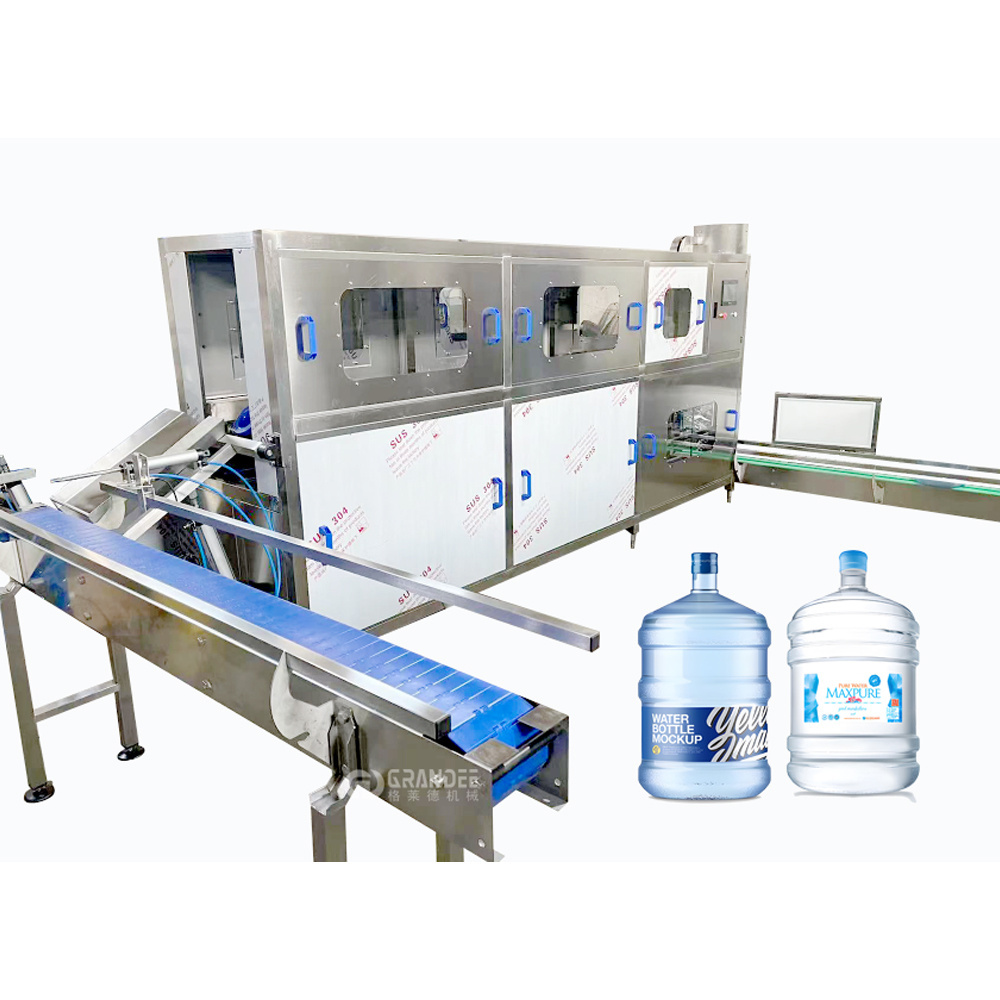

5 Gallon Mineral Pure Water Filling Production Machine
Washing part
1.In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly.
2.There are five or seven flushing process: First, second steps are disinfectant, the third step: drip dry, four step: recycling
water inside and outside rinsing, five step: pure water and drip dry.
2.There are five or seven flushing process: First, second steps are disinfectant, the third step: drip dry, four step: recycling
water inside and outside rinsing, five step: pure water and drip dry.
Water tanks and water pumps part 1
This 80-150bph filling machine has two water tanks with thick strong and good quality SUS304, one is disinfectant tank, two is purwe water tank, and has three good quality and good brand water pumps, 2pcs are washing pumps. 1pcs is filling pump.
Water tanks and water pumps part 2
This 100-120bph filling machine has two water tanks with thick strong and good quality SUS304, and has three good quality and good
brand water pumps, 2pcs are washing pumps. 1pcs is filling pump, power of water pump is 0.37KW.
brand water pumps, 2pcs are washing pumps. 1pcs is filling pump, power of water pump is 0.37KW.
Filling sealing part
This filling machine and sealing machine working with automatic cylinder controlled, cap holding and cap hopper, use gravity filling type, full bottle filling process.
Automatic cap unscrambler
Automatic cap unscrambler works very smooth, with function of alarm for lack of caps.
Main technical parameter
|
Model
|
QGF-120
|
QGF-200
|
QGF-300
|
QGF-450
|
QGF-600
|
QGF-900
|
QGF-1200
|
||||||
|
Capacity(500ml/BPH)
|
150
|
200
|
300
|
450
|
600
|
900
|
1200
|
||||||
|
Suitable bottle shape and size
|
18.9L bottle
|
|
|
|
|
|
|
||||||
|
Compressed air pressure
|
0.3-0.7MPa
|
|
|
|
|
|
|
||||||
|
Bottle washing medium
|
Sterile water
|
|
|
|
|
|
|
||||||
|
Washing pressure
|
0.25MPa
|
|
|
|
|
|
|
||||||
|
Main motor
|
1.5
|
2.2
|
2.2
|
2.2
|
4.5
|
5.5
|
7.5
|
||||||
|
Dimension(mm)
|
2900*1000*1800
|
3200*1200*2300
|
3900*1200*2300
|
5000*1500*2300
|
6200*18*2300
|
7970*1800*2700
|
10780*2000*2700
|
||||||
|
Weight(KG)
|
500
|
1500
|
3000
|
3500
|
4500
|
5500
|
7500
|
||||||
|
NAME
|
BRAND
|
AREA
|
|
PLC
|
Siemens
|
Germany
|
|
INVERTER
|
Siemens
|
Germany
|
|
CONTACTOR
|
Siemens
|
Germany
|
|
TOUCH SCREEN
|
Siemens
|
Germany
|
|
INVERTER
|
Siemens
|
Germany
|
|
MOTOR
|
ABB
|
SWISS
|
|
PNEUMATIC PARTS
|
FESTO
|
GERMANY
|
|
ELECTRICAL PARTS
|
SCHNEIDER
|
FRANCE
|
For more information, please feel free to contact us to
send an inquiry
!
Turnkey Solution
1.Decapping machine 2. bottle interior and exterior washing machine 3. 5 gallon washing filling capping machine 4. Sleeve shrink labeling machine 5. Bag packing machine 6. Palletizer
