Quick Details
-
Torque:
-
710/1500(N.m/(r/min))
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Yuchai
-
Model Number:
-
YC6J210-20
-
Warranty:
-
1 Months
-
Engine Code:
-
YC6J210-20
-
Car Model:
-
Truck
-
Emission Standard:
-
Euro 2
-
Weight:
-
880KG
-
Rated power/speed:
-
155KW/2500
-
Cold Style:
-
Water-cooled
-
Start:
-
Electric Start
-
Dimension(L*W*H):
-
1570x1030x1280mm
-
Application:
-
construction machinery
Quick Details
-
OE NO.:
-
YC6J210-20
-
Power:
-
160HP
-
Displacement:
-
6.5L
-
Torque:
-
710/1500(N.m/(r/min))
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Yuchai
-
Model Number:
-
YC6J210-20
-
Warranty:
-
1 Months
-
Engine Code:
-
YC6J210-20
-
Car Model:
-
Truck
-
Emission Standard:
-
Euro 2
-
Weight:
-
880KG
-
Rated power/speed:
-
155KW/2500
-
Cold Style:
-
Water-cooled
-
Start:
-
Electric Start
-
Dimension(L*W*H):
-
1570x1030x1280mm
-
Application:
-
construction machinery
Product Description
Remarks
The quality of the products sold in our shop is guaranteed by the actual goods inspection, the price is affordable, the engine is guaranteed to run normally and the performance is excellent. Before starting the vehicle for the first time, you must check whether the oil, cooling water, and electrical circuits are properly installed as required.
Never start with empty oil.
Product Description

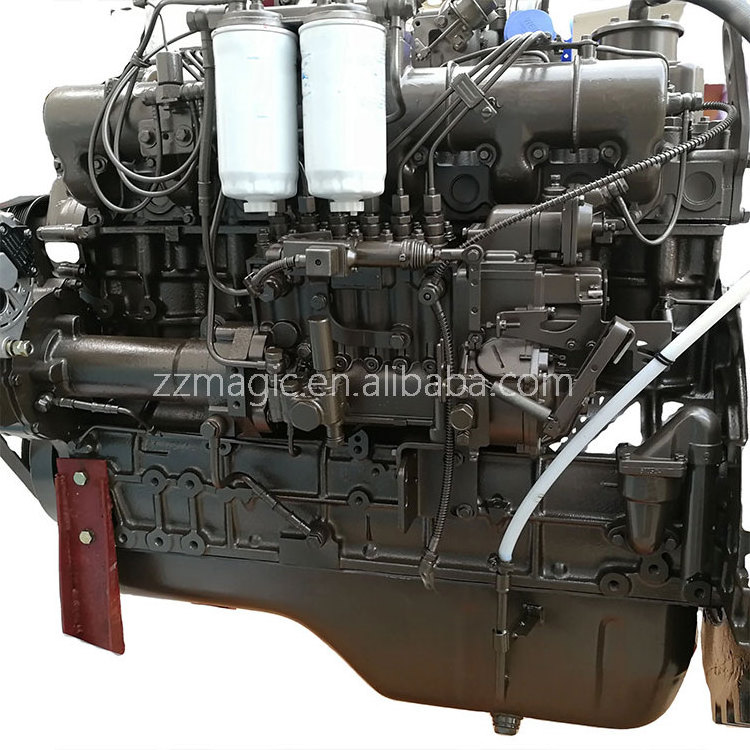

Yuchai YC6J Series Bus Diesel Engine power YC6J210-20
Yuchai YC6J Series industrial and electric power engines are designed to operate around the clock, in whatever environmental conditions you choose. They are packed with the latest technology to provide clean, quiet, and dependable power, and meet Stage IV/Tier 4 Final emission standards.
Features & Benefits
1. Designed and developed based on Germany technology platform.
2. Built upon the proven durability of YC6105Q, while adding our rich market experience for 30 years.
3. One-piece cylinder head and wet sleeve liners – Ensure a longer performance life.
4. High torque, low-speed performance outperform most of their domestic competitors.
5. Intelligent electronic control system-Complete in functionality.
6. Spare parts of Euro3 and Euro 4 versions are highly interchangeable, making replacement parts easier to access.
7. Point-line meshing gear drive- Give you the best comfort ride with less noise and vibration.
Product details
Engine Model:
YC6J160-21 YC6J170-21 YC6J180-21 YC6J190-20 YC6J210-20
Configuration Vertical, in-line, 4 stroke, water-cooled, direct injection
Number of Cylinders 6
Bore x Stroke (mm) 105x125
Displacement (L) 6.49
Aspiration Turbocharged, inter-cooled
System P-pump
Rated Power /Speed (kW/r/min) 118/2500 125/2500 132/2500 140/2500 155/2500
Peak Torque/Speed (N.m/r/min) 520/1400-1700 550/1400-1700 590/1400-1700 630/1400-1700 710/1400-1600
Min. fuel consumption with full load (g/kW.h) ≤200
Noise (ISO 3744)dB(A) ≤99
Emissions Euro 2
Dry Weight (kg) 733
Application 6-14T medium-duty tractor trucks
Configuration Vertical, in-line, 4 stroke, water-cooled, direct injection
Number of Cylinders 6
Bore x Stroke (mm) 105x125
Displacement (L) 6.49
Aspiration Turbocharged, inter-cooled
System P-pump
Rated Power /Speed (kW/r/min) 118/2500 125/2500 132/2500 140/2500 155/2500
Peak Torque/Speed (N.m/r/min) 520/1400-1700 550/1400-1700 590/1400-1700 630/1400-1700 710/1400-1600
Min. fuel consumption with full load (g/kW.h) ≤200
Noise (ISO 3744)dB(A) ≤99
Emissions Euro 2
Dry Weight (kg) 733
Application 6-14T medium-duty tractor trucks
Engine Model:
YC6M220Z
Engine Type: 6 Cylinders, in Line
Displacement: 10 L
Rated Speed: 2000 rpm
Rated Power: 162 kW (220 HP)
Max. Torque/Speed: 950 N.m @ 1300-1600 rpm
Aspiration Method: Turbocharged-Intercooled
Emission Standard: Euro Ⅱ
Fuel Consumption: 193 g/kW.h
Delivery Time: 7-15 working days
Payment Terms: T/T ,L/C
Weichai YC6M220Z Construction Diesel Engine
Other Items in this category:
YC6M220Z
YC6M240Z
YC6M320
YC6M340
YC6M360
YC6M390
Engine Type: 6 Cylinders, in Line
Displacement: 10 L
Rated Speed: 2000 rpm
Rated Power: 162 kW (220 HP)
Max. Torque/Speed: 950 N.m @ 1300-1600 rpm
Aspiration Method: Turbocharged-Intercooled
Emission Standard: Euro Ⅱ
Fuel Consumption: 193 g/kW.h
Delivery Time: 7-15 working days
Payment Terms: T/T ,L/C
Weichai YC6M220Z Construction Diesel Engine
Other Items in this category:
YC6M220Z
YC6M240Z
YC6M320
YC6M340
YC6M360
YC6M390
WHY CHOOSE US
1) Time is Gold -- For all our clients, you will receive exactly what you ordered, and you will receive it on time
2) Super Value -- We have much cost advantage. By choosing us, you can increase profit and get high quality products.
3) Great Services -- We live by the principle that customer comes first.
4) Sample order is accepted.
5) Your choice make different!
2) Super Value -- We have much cost advantage. By choosing us, you can increase profit and get high quality products.
3) Great Services -- We live by the principle that customer comes first.
4) Sample order is accepted.
5) Your choice make different!
6)
Competitive Price!!
Our company can supply spare parts
1) Undercarriage spare parts: Track shoe, Track Link, Bolt, Track roller, Carrier Roller, Sprocket, Front Idler, Idler Cushion
2) Engine spare parts: Cylinder Head, Cylinder Block, Turbocharger, Piston, Piston Ring, Metal, Crankshaft, Oil Pump, Fuel injection Pump, Water Pump, Alternator, Starting Motor
3) Hydraulic spare parts: Main Valve, Main Pump, Soenoid Valve, Boom/Arm/Bucket Cylinder, Final Drive, Travel Motor, Swing Machinery, Swing Motor
4) Operator’s Cab spare parts: Cab Ass’y, Monitor, Controller, Engine Controller, Wiring Harness, Seat, Air Conditioner, Air Compressor
2) Engine spare parts: Cylinder Head, Cylinder Block, Turbocharger, Piston, Piston Ring, Metal, Crankshaft, Oil Pump, Fuel injection Pump, Water Pump, Alternator, Starting Motor
3) Hydraulic spare parts: Main Valve, Main Pump, Soenoid Valve, Boom/Arm/Bucket Cylinder, Final Drive, Travel Motor, Swing Machinery, Swing Motor
4) Operator’s Cab spare parts: Cab Ass’y, Monitor, Controller, Engine Controller, Wiring Harness, Seat, Air Conditioner, Air Compressor
If youn need other product of our company,please enquiry free. Tell the modle type and the part number please.
Application Domain
Widely used in special vehicles ,contrsution machines, pertoleum equipments and generating sets.
Packaging & Shipping
Customized wodden packing & DHL/FEDEX/UPS/TNT/ARAMEX, AIR, SEA
