Quick Details
-
Product name:
-
Automatic glue dispenser liquid pvc silicone dripping dispensing
-
Input air pressure:
-
10-100PSI
-
Speed:
-
0~200rmp
-
minimum spit amount:
-
0.0001ml
-
Auto setting spitting time:
-
0.01-99.99ss
-
external dimensions (mm):
-
188 X 168 X 88
-
Weight:
-
3.5KG
-
applicable material viscosity:
-
10000cps below
-
power:
-
AC110V+/-10% 60Hz AC220V+/-10% 50Hz
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WILLDONE
-
After-sales Service Provided:
-
No overseas service provided, Video technical support, Online support
-
Product name:
-
Automatic glue dispenser liquid pvc silicone dripping dispensing
-
Input air pressure:
-
10-100PSI
-
Speed:
-
0~200rmp
-
minimum spit amount:
-
0.0001ml
-
Auto setting spitting time:
-
0.01-99.99ss
-
external dimensions (mm):
-
188 X 168 X 88
-
Weight:
-
3.5KG
-
applicable material viscosity:
-
10000cps below
-
power:
-
AC110V+/-10% 60Hz AC220V+/-10% 50Hz

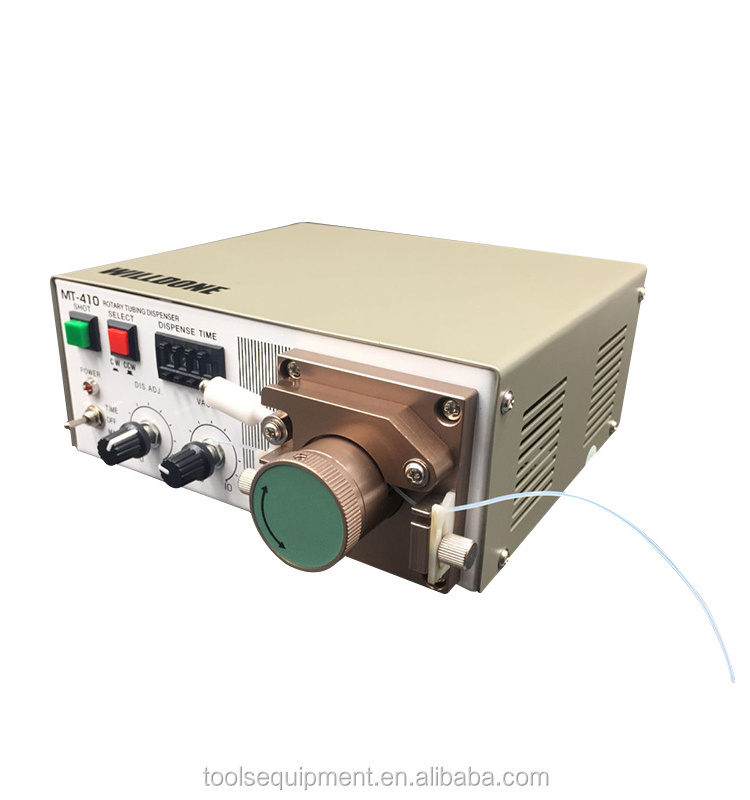

Automatic glue dispenser liquid pvc silicone dripping dispensing machine
1)
T
he manual mode:
1. Install the power cord of the machine and connect it to power. Pull the switch to the MAN position and the indicator light is on.
2. Install the Teflon tube.
3. Set the forward and reverse press CW CCW button to convert, we select the CCW button to convert, we select CW - turn clockwise.
4. Set back to VAC.ADJ. Shun big, reverse small to choose the required value. In manual mode it is best to reverse the back suction.
5. Adjust DIS, ADJ, knob, set the speed (operating speed is 50~120RAM).
6. Press the “SHOT” button, or manually switch the foot switch to complete the job.
2)
T
he automatic mode:
1. Pull the switch to the TIME position and the indicator lights.
2. Use the DISPENSE TIME button to set the dispensing angle.
3. Press the manual mode 2, 3, 4, 5, 6 above to work.
Note: When the 410 instant glue dispenser is turned counterclockwise, the (DISPENSE TIME) button becomes the suction function. The suction knob (VAC, ADJ) changes to the set dispensing angle.
Note: In the counterclockwise state, the (DISPENSE TIME) button becomes the suckback function. The suction knob (VAC, ADJ) changes to the set dispensing angle.
T echnical specifications:
|
S peed |
0~200rmp |
|
S pit out the rubber rotation time |
0.01 seconds - 99.99 seconds |
|
T he amount of glue back adjustment |
0~400 |
|
T he minimum amount of glue |
0.0001ml |
|
Applicable material viscosity |
10000cps or less |
|
S pitting mode |
stable action mode (quantitative spit), manual control mode |
|
P ower |
AC110V +/- 10% 60Hz AC220V +/- 10% 50Hz |
|
P ower consumption |
30VA |
|
D imensions (mm) |
188 X 168 X 88 |
|
W eight |
3.5KG |
Application:
High-precision spit operation of precision machines such as plug wiring, mobile phone buttons, remote control buttons, VCD, DVD optical heads, magnetic heads, and solution dispensing.
Suitable for dispensing liquid materials:
Loctite quick-drying glue, instant dry glue, electrolyte, ink, liquid, oil and other liquids with a viscosity of less than 10000 cps.
use:
Bonding, fixing, dot coating, linear coating, and so on.
1.Good quality and competitive price.
2.Any Inquires will be replied within 24 hours.
3.All of our products 100% inspection before shipment, we guarantee to use our products safety.
4.OEM/ODM orders are warmly preferred.
5.We own the best after-sale service.Any problems occur,our team will do our best to solve for customers.
6.Faster delivery, sample order in stock, and 3-7 days after bulk production.
