Quick Details
-
Weight (KG):
-
300
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product fineness::
-
d97: 3 - 45 micron
-
Coating agent::
-
Stearic acid/ wax/ silance, etc.
-
Coated rate::
-
96 - 99%
-
Civil engineering service::
-
Available
-
Drawing software::
-
3D by Solidworks/ProE/Ug, 2D by AutoCAD
-
Automation and control::
-
PLC/ SCADA/ DCS
-
Installation service::
-
Engineer instruction and supervision on site
-
After-sale service term::
-
Lifetime service
-
Certification:
-
CE ISO
Quick Details
-
Machine Type:
-
Powder Surface Coating Machine, Coating Equipment, Other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EPIC Powder
-
Weight (KG):
-
300
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product fineness::
-
d97: 3 - 45 micron
-
Coating agent::
-
Stearic acid/ wax/ silance, etc.
-
Coated rate::
-
96 - 99%
-
Civil engineering service::
-
Available
-
Drawing software::
-
3D by Solidworks/ProE/Ug, 2D by AutoCAD
-
Automation and control::
-
PLC/ SCADA/ DCS
-
Installation service::
-
Engineer instruction and supervision on site
-
After-sale service term::
-
Lifetime service
-
Certification:
-
CE ISO

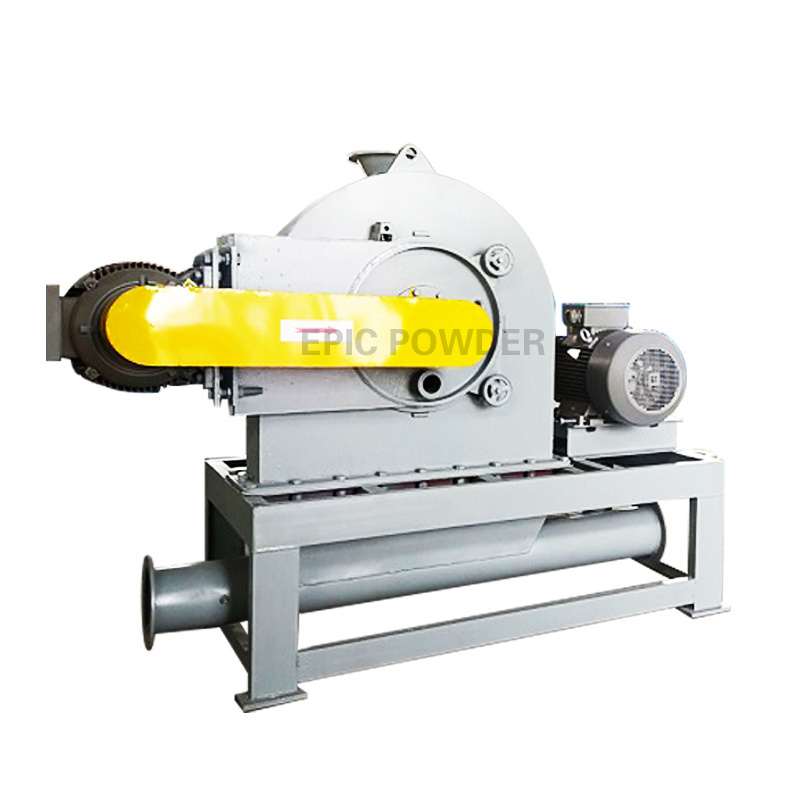

Limestone Powder Pin Mill Coating Machine
Processing Description:
T he uncoated powder will be fed into the system by dosing screw, and then heated by heating screw. the coating agent will be fed into the melting tank by dosing screw, and after melted into liquid will be pumped into the PIN MILL. The heated powder and coating agent will be pre-mixed in the bin by high-pressure air flow, and then go into the PIN MILL. The powder will be coated under the high-speed rotation of double pin discs. the coated powder will be collected by bag filter, and then conveyed intot he product silo by pneumatic conveyor.
Our engineers help to develp innovative and efficient processes that give you a competitive edge and efficient, reliable and predictable manufacturing.
- Knowledgable engineers
- Abundant precise testing results of various materials
- More than 30 years experience in different powder projects
- Using the latest technologies of powder processing
- Exploiting the knowledge gained from hundreds of applications across any industries
- Leverage expertise from our experienced engineers and partners
- Plant design
- Process monitoring, control and automation
- Software development and real time application programming
- Mechnical engineering
- Machinery and vessel manufacturing
- Project plannning
- Construction site supervision and management
- Installation and testing of instrumentation and control systsems
- Machinery and plant commissioining
- Employee training
- Support throughout production
PIN MILL coating system:
The uncoated powder feeds into the system via dosing screw and heated by heating screw. The coating agent is fed into the melting tank and after melted into liquid which will be pumped into the pin mill. The heated powder and coating agent is pre-mixed in the bin by high-pressure air flow and then go into the pin mill. The powder is coated under the high-speed rotation of double pin discs. The coated powder is collected by bag filter.
For example coating the limestone powder:
The most important target with this process is a uniform and complete distribution of the coating agent in the limestone powder. The proportion of coating agent is only 0.4% to 1.4% by weight for GCC and up to 5% weight for PCC. And in order to uniformly supply this small quantity to the large amount of limestone, the coating agent is melted and then mixed with the limestone powder. Natural or synthethic max like Stearic acid is predominantly used as a coating agent.
Completing the powder surface treatment, the system is by this means of three coating drums with stagger arrangement in a triangle. Dry powder and precise measured agent, gets in the coating drum, turning fluidized snail-like running along with the high rotation of rotor; coating completion is the means of high-speed running powder’s collision, grinding and shearing as well as of the thermal energy produced by the high-speed rotated rotor.
