Quick Details
-
Brand Name:
-
BONENS
-
Model Number:
-
rk097n
-
Description:
-
rotary potentiometer
-
Rotational torque:
-
10~80gf.cm
-
Rotation stopper strengrh:
-
≥5Kgf
-
Cold proof:
-
-40℃±3℃ for 240h
-
Moisture resistance:
-
60℃±2℃ 90 to 95RH for 240h
-
Technology:
-
Carbon Film
-
Shaft Size:
-
9mm
-
Max. Operating Voltage:
-
DC 10V, AC 50V
-
Rotation:
-
300°±5°
-
Rated Power:
-
0.05W
-
Product name:
-
rotary potentiometer
Quick Details
-
Resistance:
-
500Ω~2M
-
Resistance Tolerance:
-
20%
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
BONENS
-
Model Number:
-
rk097n
-
Description:
-
rotary potentiometer
-
Rotational torque:
-
10~80gf.cm
-
Rotation stopper strengrh:
-
≥5Kgf
-
Cold proof:
-
-40℃±3℃ for 240h
-
Moisture resistance:
-
60℃±2℃ 90 to 95RH for 240h
-
Technology:
-
Carbon Film
-
Shaft Size:
-
9mm
-
Max. Operating Voltage:
-
DC 10V, AC 50V
-
Rotation:
-
300°±5°
-
Rated Power:
-
0.05W
-
Product name:
-
rotary potentiometer

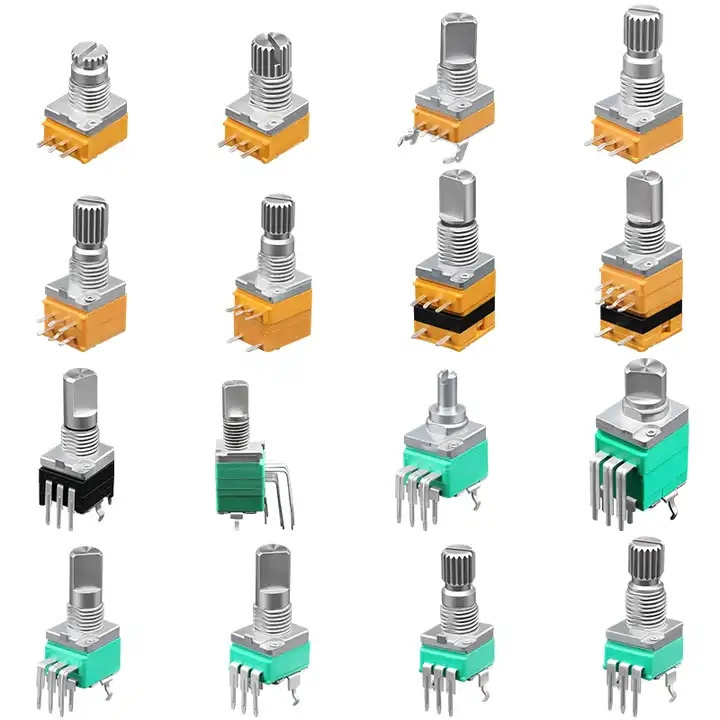

097 high quality 1K 5K 10k 50k 100k Carbon film 9mm volume control potentiometer
Product Description
Specification
|
item
|
value
|
|
Model Number
|
rv097ns
|
|
Type
|
Rotary Potentiometer
|
|
Place of Origin
|
China
|
|
|
Sichuan
|
|
Brand Name
|
BONENS
|
|
Technology
|
Carbon Film
|
|
Resistance
|
500Ω~2M
|
|
Resistance Tolerance
|
20%
|
|
Rated Power
|
0.05W
|
|
Max. Operating Voltage
|
20V
|
|
Operating Temperature
|
-25℃~+70℃
|
|
Shaft Size
|
9mm
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
