Quick Details
-
Brand Name:
-
HOMG JIN
-
Product name:
-

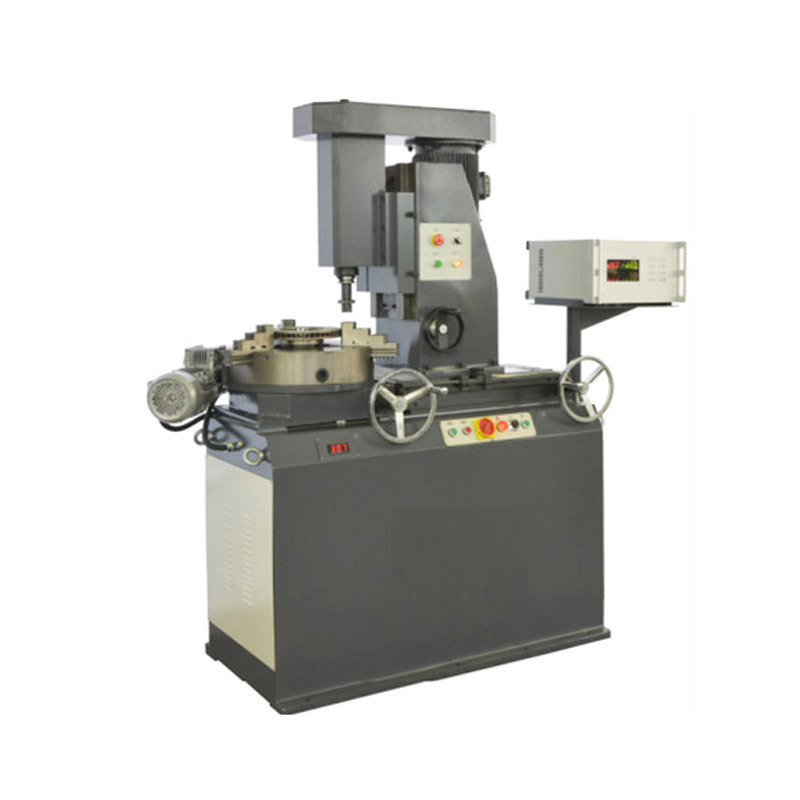

Milling weight removal and balancing machine
-
Application:
-
Widely
-
Color:
-
Customer Required
-
Power supply:
-
220V 50Hz
-
Model:
-
Coustomization
-
MOQ:
-
1 Set
-
Brand:
-
Hong Jin
-
Port:
-
Shen Zhen
-
Delivery time:
-
7-15days
Quick Details
-
Warranty:
-
1 YEAR
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOMG JIN
-
Product name:
-
Milling weight removal and balancing machine
-
Application:
-
Widely
-
Color:
-
Customer Required
-
Power supply:
-
220V 50Hz
-
Model:
-
Coustomization
-
MOQ:
-
1 Set
-
Brand:
-
Hong Jin
-
Port:
-
Shen Zhen
-
Delivery time:
-
7-15days
Product Paramenters
product description:
This product is mainly used for balance measurement and milling weight removal of water pump impellers/brake discs/brake hubs/etc. discs.
Features:
The balance measurement and milling deweighting of the rotor are completed on the same equipment.High production efficiency, high precision, convenient measurement, milling and weight removal. Equipped with different fixtures, it can meet the needs of various specifications of products, and is suitable for batch and single-piece production of products.
Introduction:
This product is mainly used for balance measurement and weight removal of automobile brake discs. The characteristic of this product is that the balance measurement and milling deweighting of the workpiece are completed on the same equipment. This product has high production efficiency and is convenient for measurement and weight removal. Equipped with different fixtures, it can meet the needs of various specifications and is suitable for batch and single-piece production of products.
|
Maximum mass of workpiece (kg)
|
100
|
|
Milling diameter range (mm)
|
φ220～φ450
|
|
Three-jaw clamping range (mm)
|
φ200～φ450
|
|
Individual balance maximum diameter (mm)
|
φ500
|
|
Balance speed
|
Stepless variable frequency speed regulation
|
|
Brake disc positioning aperture range (mm)
|
φ65～φ90 (can be adjusted according to the actual user)
|
|
Brake disc thickness range (mm)
|
20～75
|
|
Maximum depth of deduplication for milling (mm)
|
5
|
|
Main motor power (KW)
|
3
|
|
Balance Measurement System
|
Equipped with HJ-S60 microcomputer digital display electric measuring box, with electric braking speed control device
|
