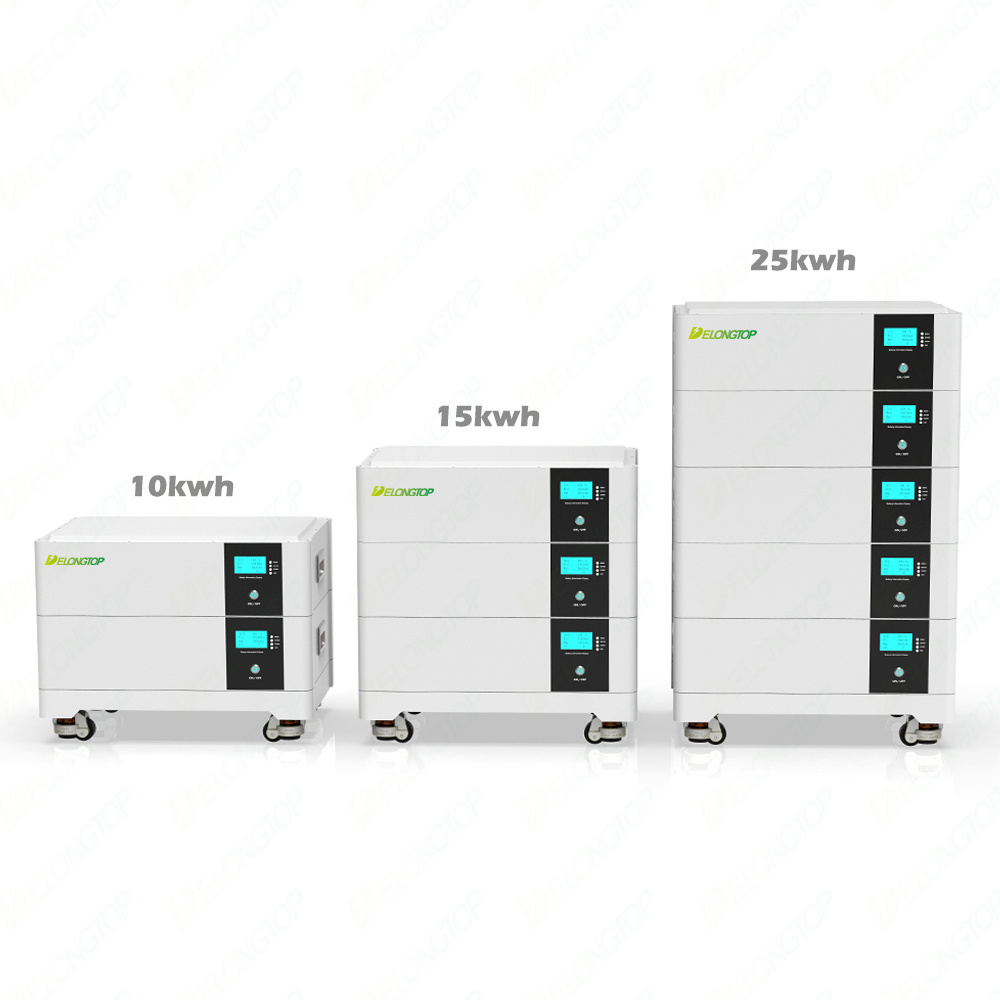

Stackable LiFePO4 5KWH 10KWH 15KWH 20KWH 25KWH Battery vertical Cabinet:
1)One Module 5KWH 51.2V 100AH LiFePO4 Battery , 2pcs Stackable modules in parallel will get 10KWH,3PCS Stackable modules in
parallel will get 15KWH...unit max each cabinet contains 5pcs( 25kwh）
2)Battery Support smart communication function RS485/ RS232/ CANbus and can compatible with most of famous Hybrid off grid inverters / MPPT controllers
3) Built in accurate coulomb counter (LCD display), ON/OFF Switch, Handles，bracket and movable base.
4)For the bracket, we customized the high quality unique metal bracket which is more stable, safely and very firm to hold the
power wall lifepo4 battery install on the wall and ground.
- Product Details
- {{item.text}}
Quick Details
-
Dimension (L*W*H):
-
640*450*310mm
-
Weight:
-
65kg
-
Product name:
-
5kwh Solar Home Energy Storage
-
Application:
-
Off Grid House Battery Bank 5kwh
-
Material:
-
Metal Box
-
Voltage:
-
48V/51.2V
-
Capacity:
-
100AH 5KWH
-
Cell Type:
-
LiFePO4 Battery
-
Cycle life:
-
6000-8000
-
Communication mode:
-
RS485/CAN/RS232
-
Assembly Method:
-
Stackable & Movable Battery
-
Size:
-
640*450*310mm(with roller base)
Quick Details
-
Model Number:
-
LFP51100
-
Brand Name:
-
Delong
-
Place of Origin:
-
Guangdong, China
-
Dimension (L*W*H):
-
640*450*310mm
-
Weight:
-
65kg
-
Product name:
-
5kwh Solar Home Energy Storage
-
Application:
-
Off Grid House Battery Bank 5kwh
-
Material:
-
Metal Box
-
Voltage:
-
48V/51.2V
-
Capacity:
-
100AH 5KWH
-
Cell Type:
-
LiFePO4 Battery
-
Cycle life:
-
6000-8000
-
Communication mode:
-
RS485/CAN/RS232
-
Assembly Method:
-
Stackable & Movable Battery
-
Size:
-
640*450*310mm(with roller base)
Details Images
Deep Cycle Energy Storage 5KWH 48v Lifepo4 100Ah Stackable Lithium Ion Lifepo4 Solar Battery Bateria Rechargeable Pack
Deep Cycle Energy Storage 5KWH 48v Lifepo4 100Ah Stackable Lithium Ion Lifepo4 Solar Battery Bateria Rechargeable Pack
Product Features:
Deep Cycle Energy Storage 5KWH 48v Lifepo4 100Ah Stackable Lithium Ion Lifepo4 Solar Battery Bateria Rechargeable Pack
1) High-energy density, excellent high-temperature and low-temperature performance, specific high energy, excellent safety performance;
2)Long circulation life, low self-discharge, connection in parallel, available for overlapping, high capacity, and long lifetime;
3) Match most Hybrid and off grid inverter brands in the world.
WHAT BATTERY CELL WE USE:
As a 10-year-old store engaged in the battery business, we are responsible for our customers and our brand.
Using only A grade cells, the cycle life can up to 6000-8000 times
: 10AH/ 25AH/ 30AH/ 50AH/ 100AH/ 200AH...
1> Our batteries are the primary source of supply from the original cells manufacturer, battery cells are paired and distributed before outgoing, and can be assembled directly.
2> Through a number of certification and testing, quality assurance.
3> There are two types of pouch cells and prismatic cells. The pouch cells: lighter, cheaper, and easy to customized in special sizes. The prismatic cells: not easily deformed , stable performance, mature market, more popular at present.
1> Our batteries are the primary source of supply from the original cells manufacturer, battery cells are paired and distributed before outgoing, and can be assembled directly.
2> Through a number of certification and testing, quality assurance.
3> There are two types of pouch cells and prismatic cells. The pouch cells: lighter, cheaper, and easy to customized in special sizes. The prismatic cells: not easily deformed , stable performance, mature market, more popular at present.
Products Description
|
Deep Cycle Energy Storage 5KWH 48v Lifepo4 100Ah Stackable Lithium Ion Lifepo4 Solar Battery Bateria Rechargeable Pack
|
|
|
|
|||
|
Item
|
Specification
|
|
Note
|
|||
|
Battery Pack
|
Nominal Voltage:
|
48V/51.2V
|
Support Customized 6.4V-96V
|
|||
|
|
Nominal Capacity:
|
5KWH 10KWH 15KWH 20KWH 25KWH
|
Any capacity can be customized
|
|||
|
|
End of Discharge Voltage:
|
54.75V/58.4V
|
|
|||
|
|
End of charge Voltage:
|
36V/38.4V
|
|
|||
|
|
Max.Cont. Charge Current:
|
≤200A/Module
|
Free Customization Service
|
|||
|
|
End of Charge Current:
|
100mA
|
Free Customization Service
|
|||
|
|
Nominal Discharge Current:
|
200A/Module
|
Free Customization Service
|
|||
|
|
Max. Pulse Discharge Current:
|
400A(3S)/Module
|
Free Customization Service
|
|||
|
|
Internal Resistance:
|
≤50mΩ
|
|
|||
|
|
Operating Charge Temperature:
|
0～45℃
|
|
|||
|
|
Operating Discharge Temperature:
|
-20～60℃
|
|
|||
|
|
Storage Temp.(60-80% SOC Storage):
|
-10～45℃
|
|
|||
|
|
Charge Method:
|
CC/CV
|
|
|||
|
|
BMS:
|
Built in BMS
|
Support Customized Extra Function
|
|||
|
|
Dimension:
|
640*450*310mm/Module
|
|
|||
|
|
Weight:
|
50KG-250KG
|
|
|||
|
|
Cycle Life:
|
6000+
|
(Cycle @RT, 1C rate)
|
|||
|
Battery Cell Used
|
Prismatic LiFePO4 Cell/ Pouch LiFePO4 Cell
|
3.2V 100AH
|
15S1P/ or 16S1P /Module
|
|||
|
BMS
|
Charge Protection, Over charge Protection, Over Discharge Protection, Short Circuit Protection
|
|
Support Customized Extra Function of RS485/RS232/ CANbus
|
|||
|
LED Indicator
|
/
|
/
|
|
|||
|
|
Metal Case
|
/
|
|
|||
|
|
IP Grade:
|
IP65
|
|
|||
Certifications
10 YEARS WARRANTY
We offer 10 years truly warranty to provide after-sale service and technology support.
Deep Cycle Energy Storage 5KWH 48v Lifepo4 100Ah Stackable Lithium Ion Lifepo4 Solar Battery Bateria Rechargeable Pack
Deep Cycle Energy Storage 5KWH 48v Lifepo4 100Ah Stackable Lithium Ion Lifepo4 Solar Battery Bateria Rechargeable Pack
FAQ
Q1:Are you a factory or a trader?
A1: We are the battery manufacturer. Our factory is in Dongguan Guangdong.
Q2: What are there included for a battery or pack , may I buy charger from you?
A2: Battery case, BMS, battery pack, can buy customized connector, charger.
Q3: How long frequency does recharge the battery?
A3: Usually per 2 months to recharge the battery pack , to charge full the battery depends on the charger current you use. 20A charger can charge full for 12V 100Ah battery in 5 hours, fast charger 50A in 2 hours.
Q4: Can I customize the size of battery?
A4: Yes if your quantity match the MOQ.
Q5: Whether can print the logo?
A5: yes, Logo/sticker/OEM/ODM is accepted.
Q6: Whether can make Application for the battery?
A6: Yes, you can add RS485 & RS232 & CAN bus Protocol, and also with Bluetooth.
A1: We are the battery manufacturer. Our factory is in Dongguan Guangdong.
Q2: What are there included for a battery or pack , may I buy charger from you?
A2: Battery case, BMS, battery pack, can buy customized connector, charger.
Q3: How long frequency does recharge the battery?
A3: Usually per 2 months to recharge the battery pack , to charge full the battery depends on the charger current you use. 20A charger can charge full for 12V 100Ah battery in 5 hours, fast charger 50A in 2 hours.
Q4: Can I customize the size of battery?
A4: Yes if your quantity match the MOQ.
Q5: Whether can print the logo?
A5: yes, Logo/sticker/OEM/ODM is accepted.
Q6: Whether can make Application for the battery?
A6: Yes, you can add RS485 & RS232 & CAN bus Protocol, and also with Bluetooth.
Deep Cycle Energy Storage 5KWH 48v Lifepo4 100Ah Stackable Lithium Ion Lifepo4 Solar Battery Bateria Rechargeable Pack
