Quick Details
-
Size:
-
10*17mm
-
MAX voltage:
-
100V
-
Rated current:
-
0-0.5A
-
Max Power:
-
10W
-
Reed Form:
-
NC, COM (NO, COM/NC, NO, COM Customization )
-
Operating Gap:
-
15-25mm
-
Case:
-
ABS housing, white/brown
-
Wire rode:
-
1007UL #24AWG 260mm
-
Packing:
-
40pcs/bag , 1600pcs/carton ,15kgs/ctn
-
Application:
-
Ideal for wooden door or window
Quick Details
-
Place of Origin:
-
Nordson
-
Brand Name:
-
China
-
Model Number:
-
NK-Y1324
-
Size:
-
10*17mm
-
MAX voltage:
-
100V
-
Rated current:
-
0-0.5A
-
Max Power:
-
10W
-
Reed Form:
-
NC, COM (NO, COM/NC, NO, COM Customization )
-
Operating Gap:
-
15-25mm
-
Case:
-
ABS housing, white/brown
-
Wire rode:
-
1007UL #24AWG 260mm
-
Packing:
-
40pcs/bag , 1600pcs/carton ,15kgs/ctn
-
Application:
-
Ideal for wooden door or window

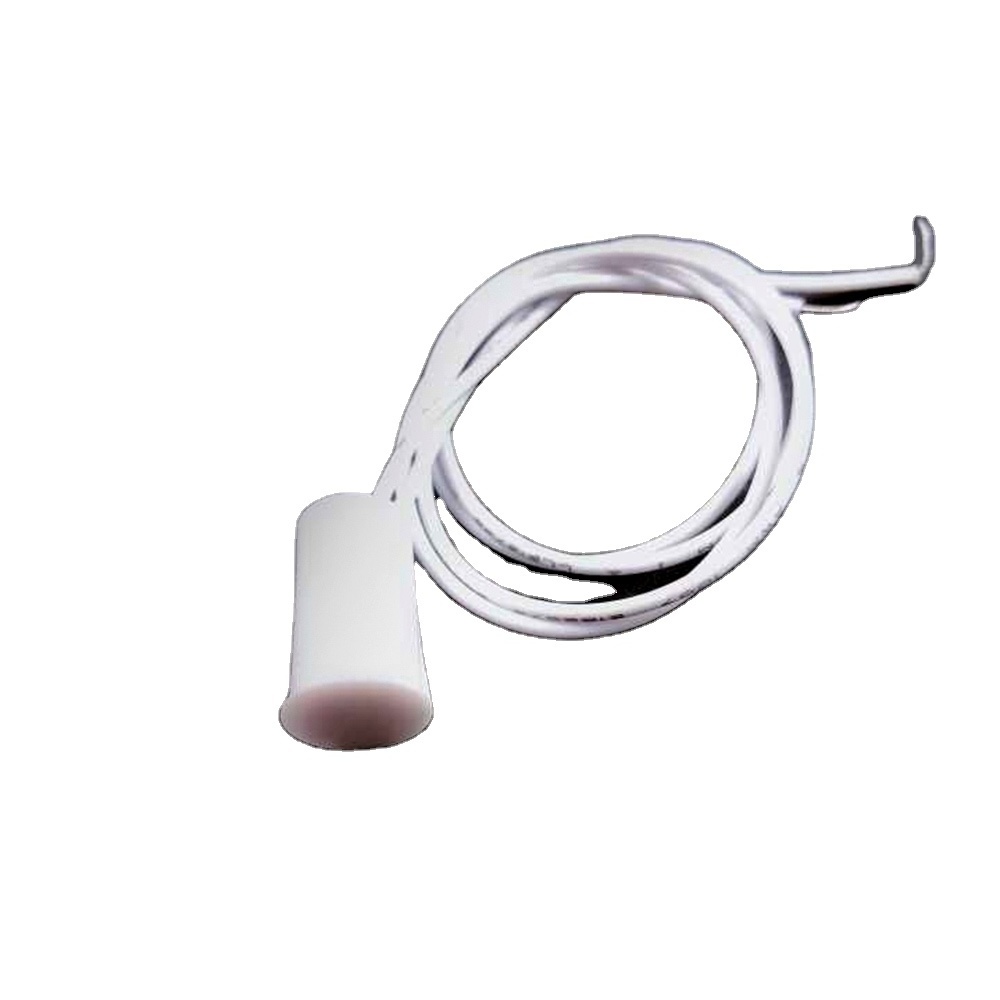

Anti-theft system door security sensor alarm safety contact switch for home
NK-Y1324 Door Magnetic Switch is an Intrusion Detector for doors and windows status monitoring in security system, which is made of a reed switch and a magnet.When doors and windows are closed, switch contact is affected by magnetic field of the magnet then forms a conducting state; When doors and windows are forced open, magnet is far from reed magnetic switch, the switch is disconnected and cause alarm.
|
Size |
10* 17mm |
|
MAX voltage |
100 V |
|
Rated current |
0-0.5A |
|
Max Power |
10W |
|
Reed Form |
NC, COM (NO, COM/NC, NO, COM Customization ) |
|
Operating Gap |
15-25mm |
|
Case |
ABS housing, white/brown |
|
Wire rode |
1007UL #24AWG 260mm |
|
Packing |
|
|
Application |
Ideal for wooden door or window |
NORDSON is relentless in the pursuit of the latest technologies, the highest quality standards and in delivering the best user experience possible.We distribute an extensive and finest access control products to our world-wide customers. So far, Nordson has over 30 distributors in the world .We promise to provide them with the best products & services at any time, any where.
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door service;
2. By Air or by Sea for bulk goods, for FCL; Airport/ Port receiving;
3. Support Customers specifying freight forwarders or selected shipping methods!
